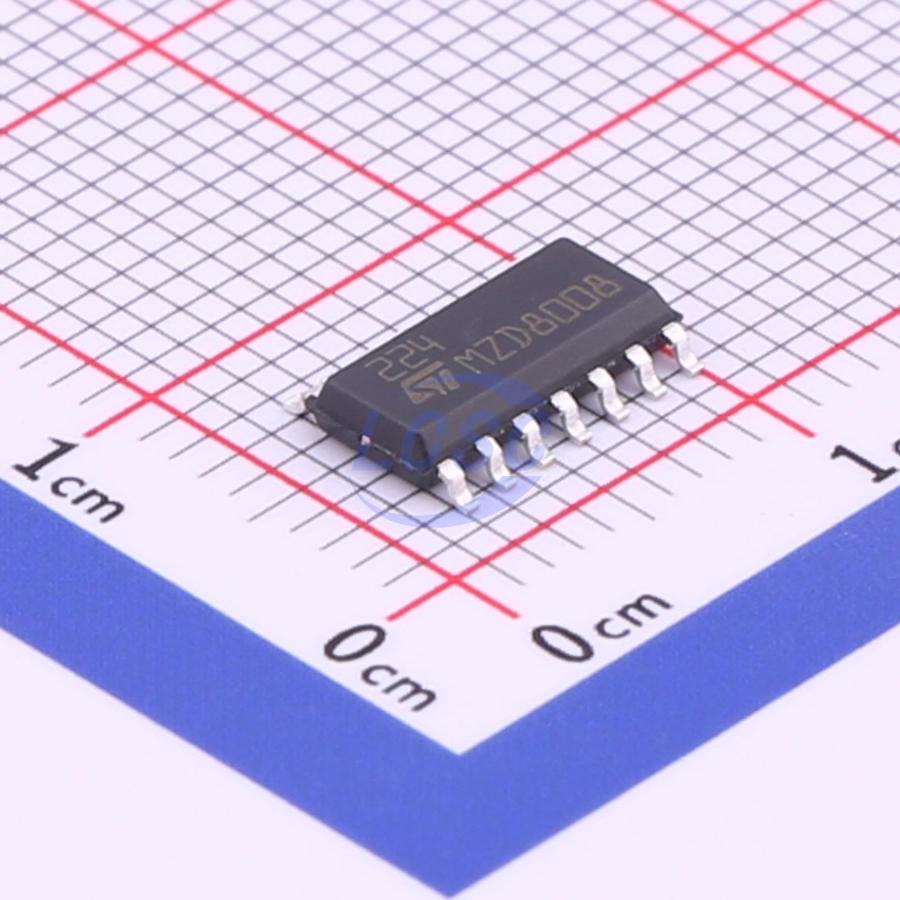

LM224DT

40mA 4 5mV 400V/ms 80dB 150nA 1.5mA 1.3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Low power quad operational amplifiers

Manufacturer: ST
Manufacturer part #: LM224DT
Store part #: C7926
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15,430 in stock

#C7926

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.37	₹136.85
50+	₹21.25	₹1,062.50
150+	₹18.27	₹2,740.50
500+	₹15.60	₹7,800.00
2,500+	₹14.87	₹37,175.00
5,000+	₹14.43	₹72,150.00

Quantity (min 5, multiples of 5)

5 × ₹27.37

₹136.85

excl. GST

₹161.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM224DT

₹136.85 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 30nA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 150nA
Input Offset Voltage Drift(Vos TC): 30uV/℃
Quiescent Current: 1.5mA
Gain Bandwidth Product: 1.3MHz
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -1.5V~15V
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.31 g

Overview

The LM124, LM224 and LM324 consist of four independent, high gain, internally frequency - compensated operational amplifiers. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Applications

AC-coupled inverting amplifier
High input impedance adjustable-gain DC instrumentation amplifier
AC-coupled non-inverting amplifier
DC summing amplifier
Non-inverting DC gain amplifier
Low-drift peak detector
Active bandpass filter
High input impedance DC differential amplifier
Input current reduction using complementary amplifiers (general concept)

Key features

Wide gain bandwidth: 1.3 MHz
Input common - mode voltage range includes ground
Large voltage gain: 100 dB
Very low supply current per amplifier: 375 μA
Low input bias current: 20 nA
Low input offset voltage: 5 mV max.
Low input offset current: 2 nA
Wide power supply range:
Single supply: +3 V to +30 V
Dual supplies: ±1.5 V to ±15 V

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM224D#C5268402ST · SO-14	ST	SO-14	1	₹811.48 · 1 in stock	View
LM224M/TR#C194285HGSEMI · SOIC-14	HGSEMI	SOIC-14	4,430	₹14.58 · 4,430 in stock	View
LM324SR#C22447444COSINE · SOP-14	COSINE	SOP-14	3,120	₹15.61 · 3,120 in stock	View
XL224#C5125480XINLUDA · SOP-14	XINLUDA	SOP-14	145	₹12.12 · 145 in stock	View
XL124#C521149XINLUDA · SOP-14	XINLUDA	SOP-14	1,990	₹12.83 · 1,990 in stock	View
