3PEAK

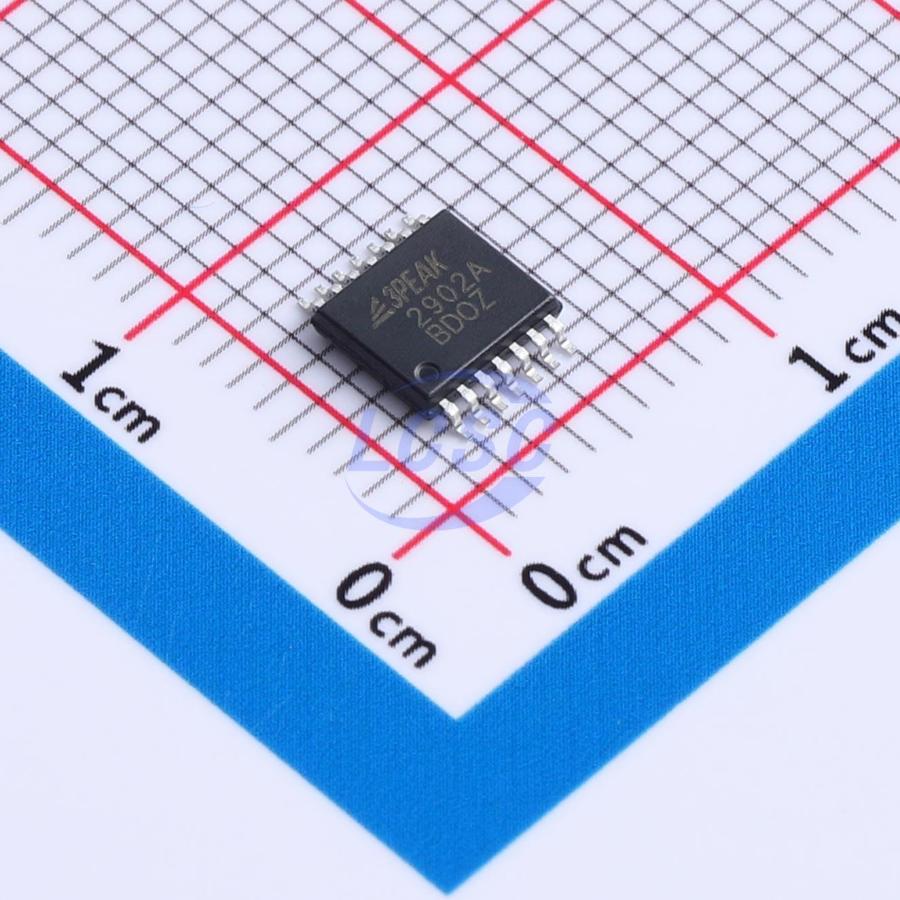

LM2902A-TR

25mA 4 3mV 500V/ms 120dB 500pA 200uA 900kHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

36V General Purpose Op Amps

Manufacturer: 3PEAK
Manufacturer part #: LM2902A-TR
Store part #: C39621214
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,455 in stock

#C39621214

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹19.13	₹95.65
50+	₹14.79	₹739.50
150+	₹12.62	₹1,893.00
500+	₹10.99	₹5,495.00
3,000+	₹9.70	₹29,100.00
6,000+	₹9.04	₹54,240.00

Quantity (min 5, multiples of 5)

5 × ₹19.13

₹95.65

excl. GST

₹112.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM2902A-TR

₹95.65 for 5 + GST

Specifications

Output Current: 25mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 500pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 500pA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 900kHz
Input Voltage Noise Density: 70nV/√Hz@1kHz
Dual Supply: -18V~-1.5V;1.5V~18V
Rail to Rail: Rail-to-rail output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.13 g

Overview

The LM2904A/2902A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. They achieve very good AC performance with 0.9MHz bandwidth, 0.5V/μs slew rate and maximum 3mV offset while drawing only 100μμ of quiescent current per amplifier. The input common - mode voltage range extends to V-, and the outputs swing rail - to - rail. The LM2904A/2902A family can be used as plug - in replacements for many commercially available op - amps to reduce power and improve input/output range and performance. The combination of features makes the LM2904A/2902A ideal choices for power module, industrial control, motor control and audio application.

Applications

Power Module
Sensor Interface
Motor Control
Audio

Key features

Supply Voltage: 3V to 36V or ±1.5V to ±18V
Low Supply Current: 100μμ per channel
Input Common - Mode Voltage Range Includes Ground
Can Work as Comparator
Rail to Rail Output
Bandwidth: 0.9MHz
Slew Rate: 0.5V/μs
Excellent EMI Suppress Performance: 71dB at 1GHz
Offset Voltage: ±3mV Maximum
Offset Voltage Temperature Drift: 7μV/°C
-40°C to 125°C Operation Temperature Range
