3PEAKDatasheet (PDF)

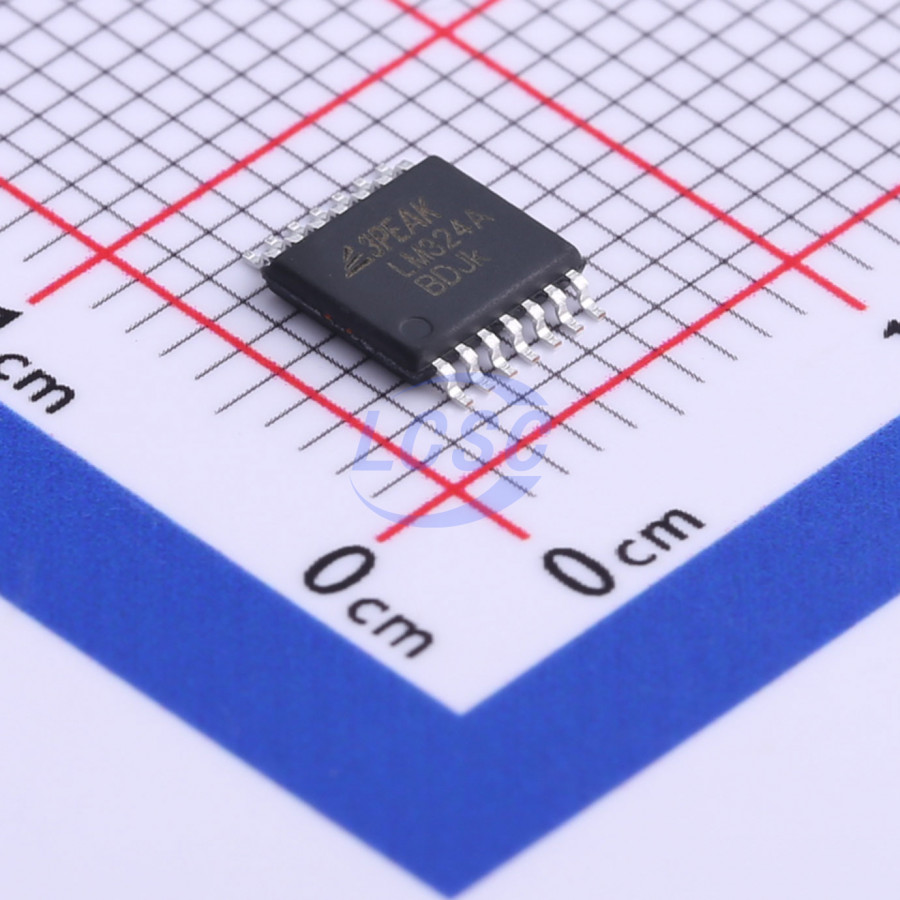

LM324A-TR
30mA 4 7mV 500V/ms 600pA 120dB 110uA 900kHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
36V General Purpose Op Amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- LM324A-TR
- Store part #
- C520193
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,555 in stock
#C520193
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.32 | ₹91.60 |
| 50+ | ₹14.16 | ₹708.00 |
| 150+ | ₹12.09 | ₹1,813.50 |
| 500+ | ₹10.53 | ₹5,265.00 |
| 3,000+ | ₹9.28 | ₹27,840.00 |
| 6,000+ | ₹8.66 | ₹51,960.00 |
5 × ₹18.32
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM324A-TR
₹91.60 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 60pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 600pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 110uA
- Gain Bandwidth Product
- 900kHz
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 0.9MHz bandwidth, 0.5V/μs slew rate and maximum 3mV offset while drawing only 100μA of quiescent current per amplifier. The input common - mode voltage range extends to V–, and the outputs swing rail - to - rail. The LM321A/358A/324A family can be used as plug - in replacements for many commercially available op - amps to reduce power and improve input/output range and performance. The combination of features makes the LM321A/358A/324A ideal choices for power module, industrial control, motor control and audio application.
Applications
- Power Module
- Sensor Interface
- Motor Control
- Audio
Key features
- Supply Voltage: 3V to 36V
- Low Supply Current: 100μA per channel
- Input Common - Mode Voltage Range Includes Ground
- Can Work as Comparator
- Rail to Rail Output
- Bandwidth: 0.9 MHz
- Slew Rate: 0.5V/μs
- Excellent EMI Suppress Performance: 71dB at 1GHz
- Offset Voltage: ±3mV Maximum
- Offset Voltage Temperature Drift: 7μV/°C
- - 40°C to 125°C Operation Temperature Range
