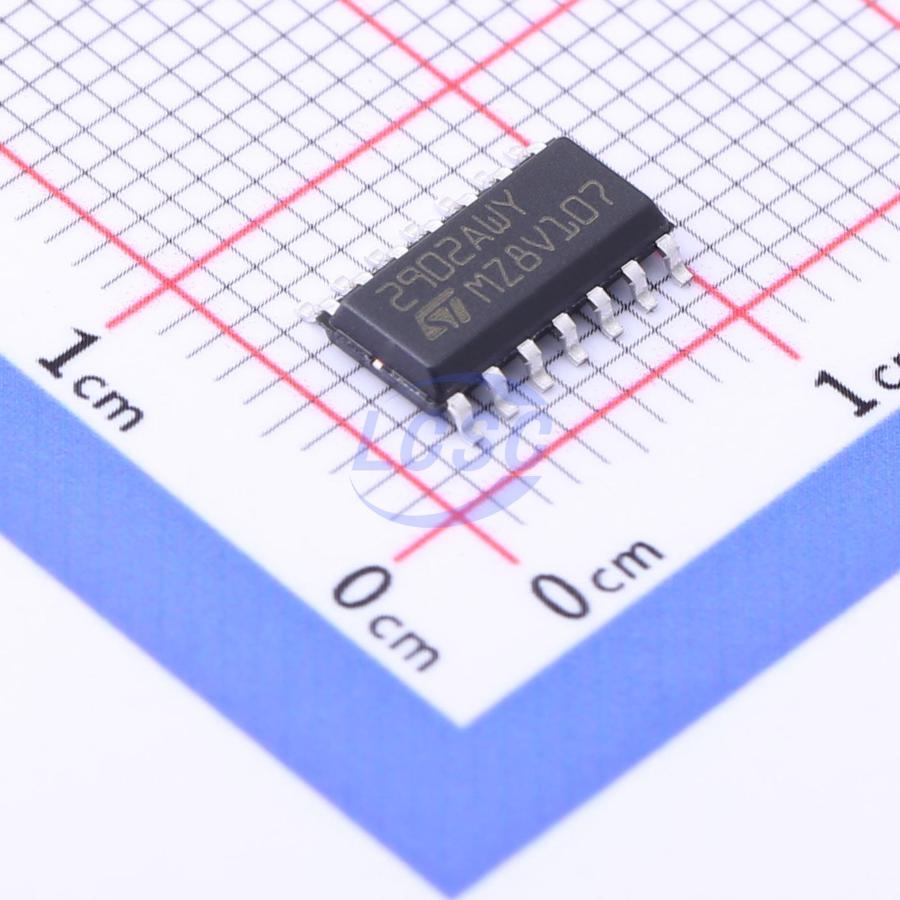

LM2902AWYDT

40mA 4 7mV 400V/ms 80dB 300nA 375uA 1.3MHz SO-14 Instrumentation, Op Amps, Buffer Amps RoHS

SO-14ROHS3 CompliantActive

Low-power quad operational amplifier

Manufacturer: ST
Manufacturer part #: LM2902AWYDT
Store part #: C2935142
Package / case: SO-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,255 in stock

#C2935142

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹37.03	₹185.15
50+	₹28.85	₹1,442.50
150+	₹25.35	₹3,802.50
500+	₹20.98	₹10,490.00
2,500+	₹19.02	₹47,550.00
5,000+	₹17.86	₹89,300.00

Quantity (min 5, multiples of 5)

5 × ₹37.03

₹185.15

excl. GST

₹218.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2902AWYDT

₹185.15 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 7mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 300nA
Input Offset Voltage Drift(Vos TC): 30uV/℃
Quiescent Current: 375uA
Gain Bandwidth Product: 1.3MHz
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: 1.5V~15V;-15V~-1.5V
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.264 g

Overview

This circuit consists of four independent, highgain operational amplifiers which have frequency compensation implemented internally and are designed especially for automotive and industrial control systems. The device operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. All the pins are protected against electrostatic discharges up to 800 V.

Applications

AC-coupled inverting amplifier
AC-coupled non-inverting amplifier
Non-inverting DC gain amplifier
DC summing amplifier
Active bandpass filter
High input impedance adjustable-gain DC instrumentation amplifier
High input impedance DC differential amplifier
Low-drift peak detector
Input current reduction using complementary amplifiers (general concept)

Key features

Wide gain bandwidth: 1.3 MHz
Input common-mode voltage range includes negative rail
Large voltage gain: 100 dB
Very low supply current per amplifier: 375 μA
Low input bias current: 20 nA
Low input offset current: 2 nA
ESD internal protection: 800 V
Wide power supply range
Single supply: z V to 30 V
Dual supplies: ±1.5 V to ±15 V
