DIODES

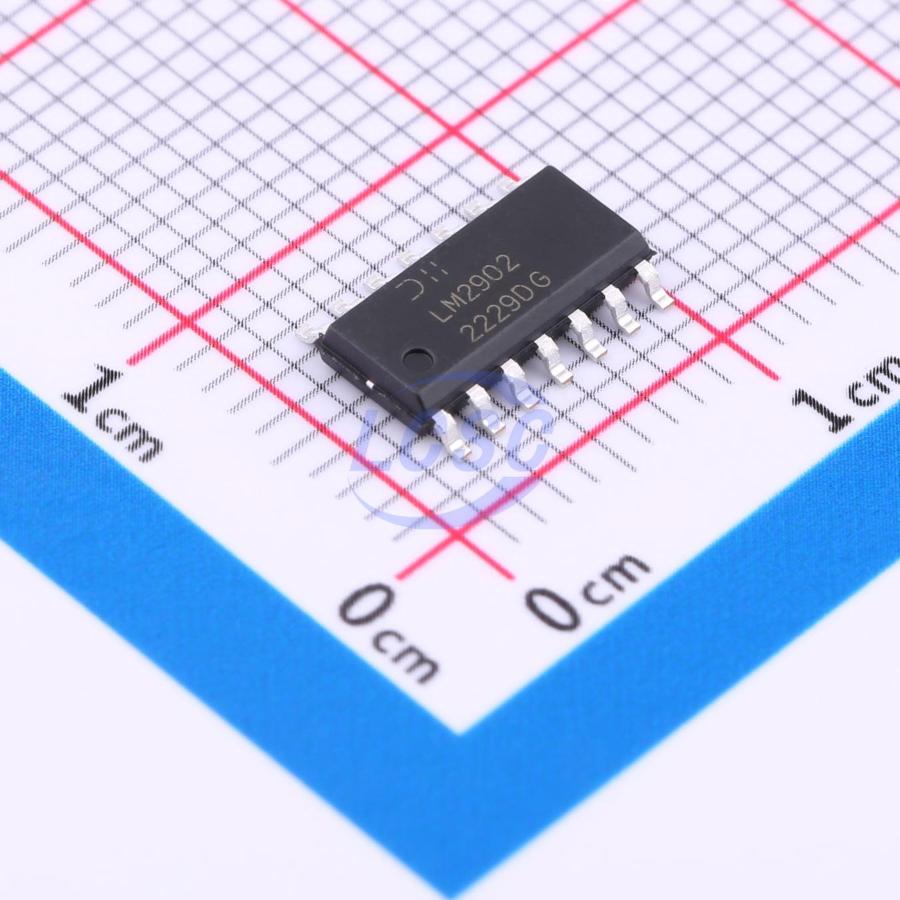

LM2902S14-13

40mA 4 2mV 300V/ms 70dB 20nA 700uA 700kHz SO-14 Instrumentation, Op Amps, Buffer Amps RoHS

SO-14ROHS3 CompliantActive

Dual and Quad Operational Amplifiers

Manufacturer: DIODES
Manufacturer part #: LM2902S14-13
Store part #: C2060319
Package / case: SO-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,505 in stock

#C2060319

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.30	₹66.50
50+	₹12.97	₹648.50
150+	₹12.73	₹1,909.50
500+	₹12.52	₹6,260.00

Quantity (min 5, multiples of 5)

5 × ₹13.30

₹66.50

excl. GST

₹78.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2902S14-13

₹66.50 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 2mV
Slew Rate: 300V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 700uA
Gain Bandwidth Product: 700kHz
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -18V~-1.5V;1.5V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.4 g

Overview

The LM2902/LM2904 series amplifiers consist of four and two independent high-gain operational amplifiers with very low input offset voltage specification. They have been designed to operate from a single power supply over a wide range of voltages; however operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage. The LM2902/LM2904 series are characterized for operation from -40°C to +125°C and the dual devices are available in SO-8, MSOP-8, TSSOP-8 and the quad devices available in SO-14 and TSSOP-14 with industry standard pin-outs. Both use green mold compound as standard.

Key features

Wide Power Supply Voltage Range:
Single Supply: 3V to 36V
Dual Supplies: ±1.5V to ±18V
Very Low Supply Current Drain
LM2904 500μA – Independent of Supply Voltage
LM2902 700μA – Independent of Supply Voltage
Low Input Bias Current: 20nA
Low Input Offset Voltage:
A Version: 1mV typ
Non-A Version: 2mV typ
Large DC Voltage Gain: 100dB
Wide Bandwidth (Unity Gain): 700kHz (Temperature Compensated)
Internally Compensated with Unity Gain
Input Common-Mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Large Output Voltage Swing: 0 to VCC-1.5V
SO-8, MSOP-8, TSSOP-8 (Duals) and SO-14, TSSOP-14 (Quads) Packages Available
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
