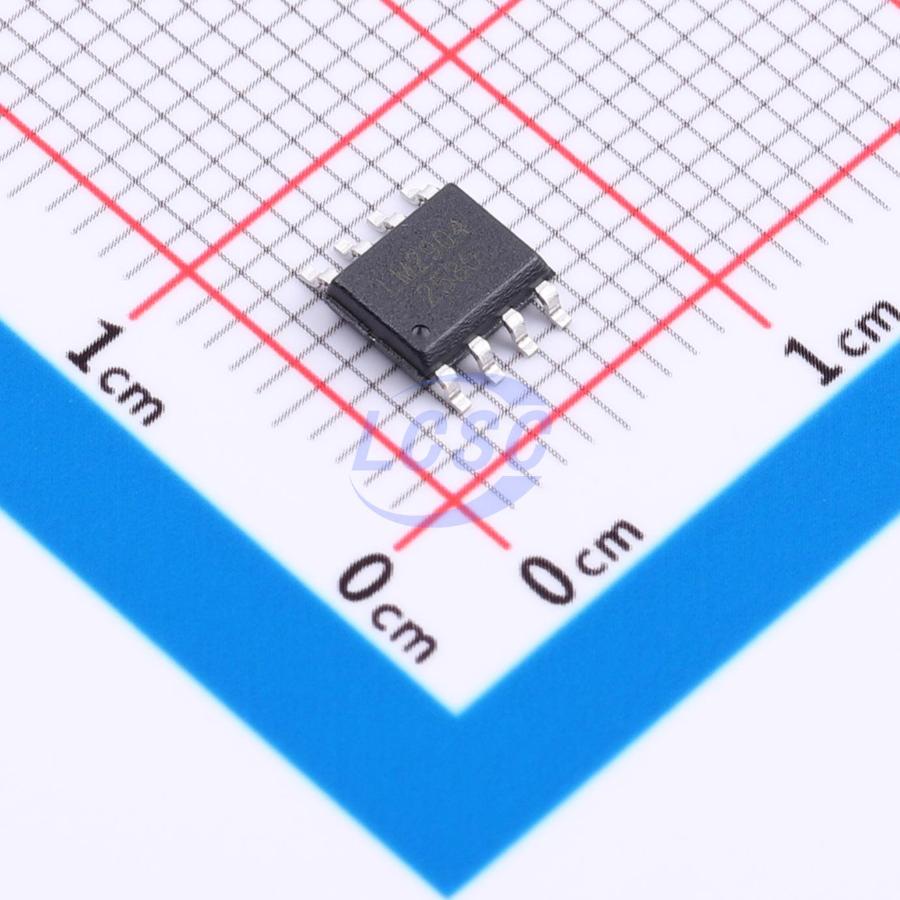

LM2904-SOP-8
30mA 2 3mV 300V/ms 20nA 80dB 350uA 1MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- LM2904-SOP-8
- Store part #
- C53199150
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C53199150
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.38 | ₹93.80 |
| 100+ | ₹7.38 | ₹738.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 1,000+ | ₹5.62 | ₹5,620.00 |
| 4,000+ | ₹5.03 | ₹20,120.00 |
| 8,000+ | ₹4.72 | ₹37,760.00 |
10 × ₹9.38
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2904-SOP-8
₹93.80 for 10 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 350uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.152 g
Overview
LM2904 is an industry-standard dual op-amp supporting single-supply or dual-supply operation. The device features high gain, internal frequency compensation, low offset voltage, and a wide operating supply voltage range. The operating supply voltage range extends from as low as 3.0V up to 36V, with a common-mode input voltage range that extends down to the negative supply rail. Good temperature stability makes it suitable for most application scenarios. The device is available in SOP8 and DIP8 packages.
Applications
- DC gain modules
- Power supplies and mobile chargers
- Programmable logic controllers
- Motor control
Key features
- Wide supply voltage range: VCC=3~32V
- Wide operating temperature range: -40~+125℃
- Quiescent current: 350uA/amplifier
- Internal frequency compensation
- Low input offset voltage: 3mV (typical)
- Gain bandwidth product: 1MHz
- Slew rate: 0.3V/μs
