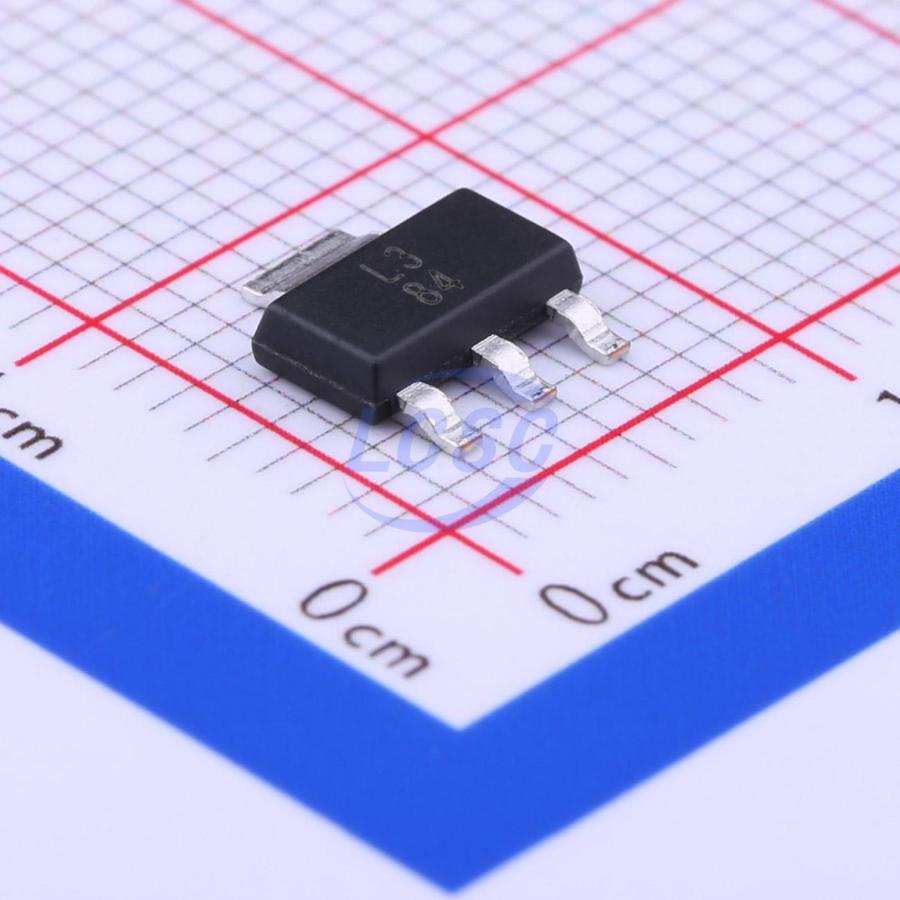

LM317DCYR

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 0.01% and typical load regulation of 0.1%. It includes current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.

Applications

• ATCA Solutions
• DLP: 3D Biometrics, Hyperspectral Imaging, Optical Networking, and Spectroscopy
• DVR and DVS
• Desktop PC
• Digital Signage and Still Camera
• ECG Electrocardiogram
• EV HEV Charger: Level 1, 2, and 3
• Electronic Shelf Label
• Energy Harvesting
• Ethernet Switch
• Femto Base Station
• Fingerprint and Iris Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• High-Speed Data Acquisition and Generation
• Hydraulic Valve
• IP Phone: Wired and Wireless
• Infusion Pump
• Intelligent Occupancy Sensing
• Motor Control: Brushed DC, Brushless DC, Low Voltage, Permanent Magnet, and Stepper Motor
• Point-to-Point Microwave Backhaul
• Power Bank Solutions
• Power Line Communication Modem
• Power Over Ethernet (PoE)
• Power Quality Meter
• Power Substation Control
• Private Branch Exchange (PBX)
• Programmable Logic Controller
• RFID Reader
• Refrigerator
• Signal or Waveform Generator
• Software Defined Radio (SDR)
• Washing Machine: High-End and Low-End
• X-ray: Baggage Scanner, Medical, and Dental

Key features

• Output Voltage Range Adjustable From 1.25 V to 37 V
• Output Current Greater Than 1.5 A
• Internal Short-Circuit Current Limiting
• Thermal Overload Protection
• Output Safe-Area Compensation
