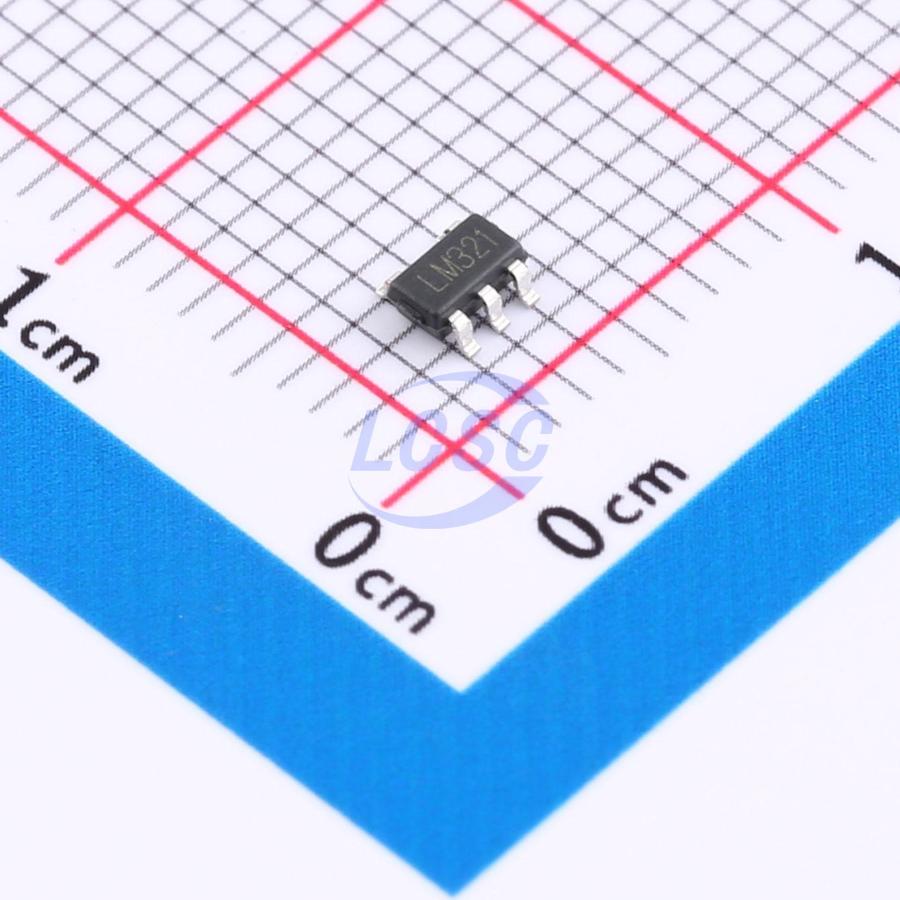

LM321
Standard (General Purpose) Amplifier 1 Circuit SOT-23-5
SOT-23-5ROHS CompliantActive
Low-power single operational amplifier
- Manufacturer
- IDCHIP
- Manufacturer part #
- LM321
- Store part #
- C395460
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,220 in stock
#C395460
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.15 | ₹61.50 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 3,000+ | ₹3.28 | ₹9,840.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.77 | ₹24,930.00 |
10 × ₹6.15
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321
₹61.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 400V/ms
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The LM321 offers high-performance, cost-effective low-power system operation. It features a high unity-gain bandwidth, a specified slew rate of 0.4V/μs, and a quiescent current of only 430μA/amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is available in a SOT-23 package. Overall, the LM321 is a low-power, wide supply range op-amp that can be designed into a variety of applications at an economical price without sacrificing valuable board space.
Applications
- Charger
- Power adapter
- Sensor interface
- Piezoelectric sensor amplifier
- Medical instruments
- Audio output
- Mobile communication portable systems
Key features
- Gain Bandwidth Product: 1MHz
- Low supply current: 430μA
- Low input bias current: 45nA
- Wide supply voltage range: +3V to 30V
- Unity gain stable
- Stable with high capacitive loads
