IDCHIPDatasheet (PDF)

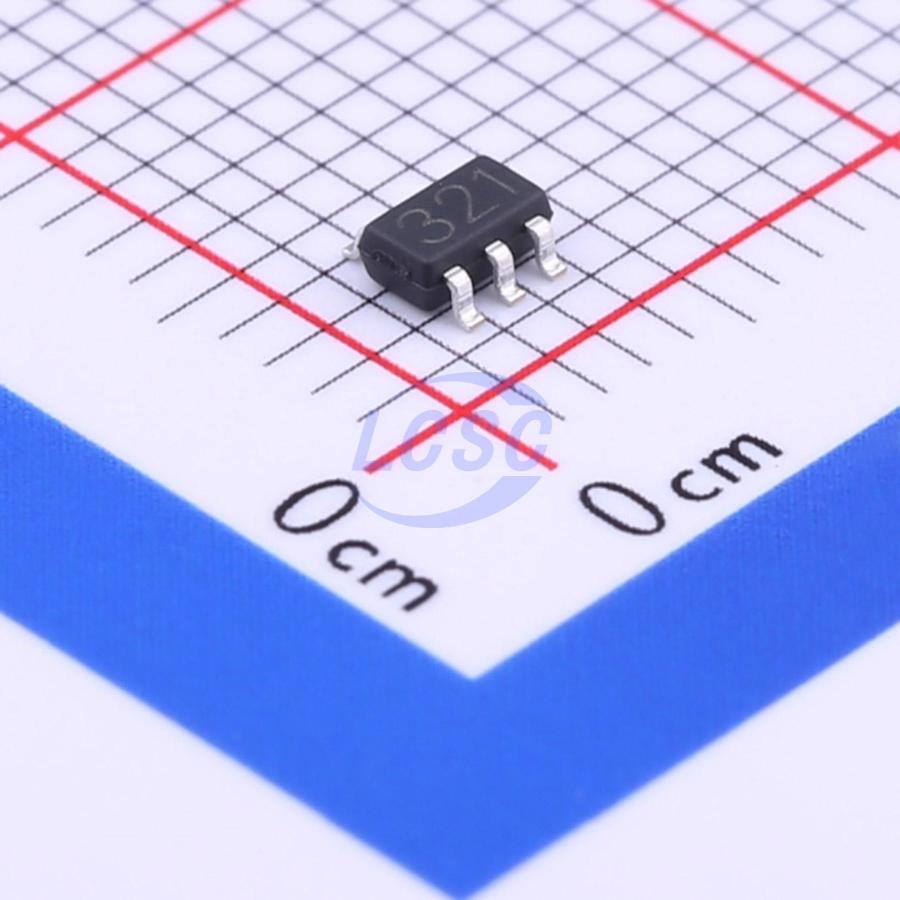

LMV321
Standard (General Purpose) Amplifier 1 Circuit SOT-23-5
SOT-23-5ROHS CompliantActive
Low-power single operational amplifier
- Manufacturer
- IDCHIP
- Manufacturer part #
- LMV321
- Store part #
- C395459
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,300 in stock
#C395459
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.29 | ₹729.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 3,000+ | ₹4.79 | ₹14,370.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
| 9,000+ | ₹4.09 | ₹36,810.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321
₹88.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The LMV321 offers high-performance, cost-effective low-power system design. It features a high unity-gain bandwidth, a specified slew rate of 0.4V/μs, and a quiescent current of only 430μA/amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also handles large capacitive loads with ease. The LMV321 is available in a SOT-23 package. Overall, the LMV321 is a low-power, wide supply range performance op-amp that enables cost-effective design across a wide range of applications without sacrificing valuable board space.
Applications
- Charger
- Power adapter
- Sensor interface
- Piezoelectric sensor amplifier
- Medical instruments
- Audio output
- Mobile communication portable systems
Key features
- Gain-bandwidth product: 1MHz
- Low supply current: 430μA
- Low input bias current: 45nA
- Wide supply voltage range: +3V to 5.5V
- Unity-gain stable
- Stable with high capacitive loads
