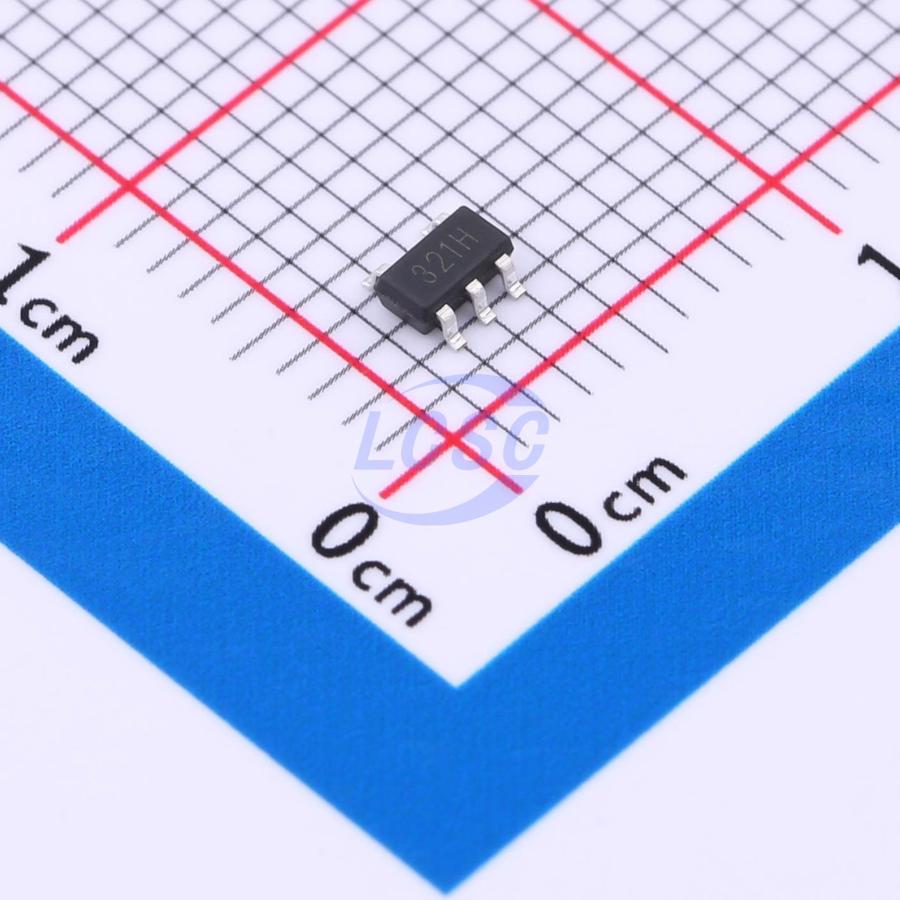

Gainsil

LM321H-TR

60mA 1 5mV 200V/ms 80dB 20nA 250uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1MHZ High Voltage Bipolar Opamp

Manufacturer: Gainsil
Manufacturer part #: LM321H-TR
Store part #: C2927688
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,340 in stock

#C2927688

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹10.41	₹104.10
100+	₹8.32	₹832.00
300+	₹7.29	₹2,187.00
3,000+	₹6.17	₹18,510.00
6,000+	₹5.53	₹33,180.00
9,000+	₹5.23	₹47,070.00

Quantity (min 10, multiples of 10)

10 × ₹10.41

₹104.10

excl. GST

₹122.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321H-TR

₹104.10 for 10 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 200V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 250uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Dual Supply: 1.5V~18V;-18V~-1.5V
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 250μA amplifier at 5V. The LM321H/358H/324H family is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321H/358H/324H family. The operating range is from 3V to 36V. The LM321H single is available in Green SOT-23-5 package. The LM358H Dual is available in Green SOP-8 and MSOP-8 packages. The LM324H Quad is available in Green SOP-14 package and TSSOP-14 Packages.

Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switching
Telephone Portable Systems

Key features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Input Common Mode Voltage Range Includes Ground
Large Outpu Voltage Swing: 0V to Vcc - 1.5V
Operating Temperature: -40°C ~ +125°C
Small Package: LM321H Available in SOT23-5 Package, LM358H Available in SOP-8 and MSOP-8 Packages, LM324H Available in SOP-14 and TSSOP-14 Packages
