HANSCHIP semiconductorDatasheet (PDF)

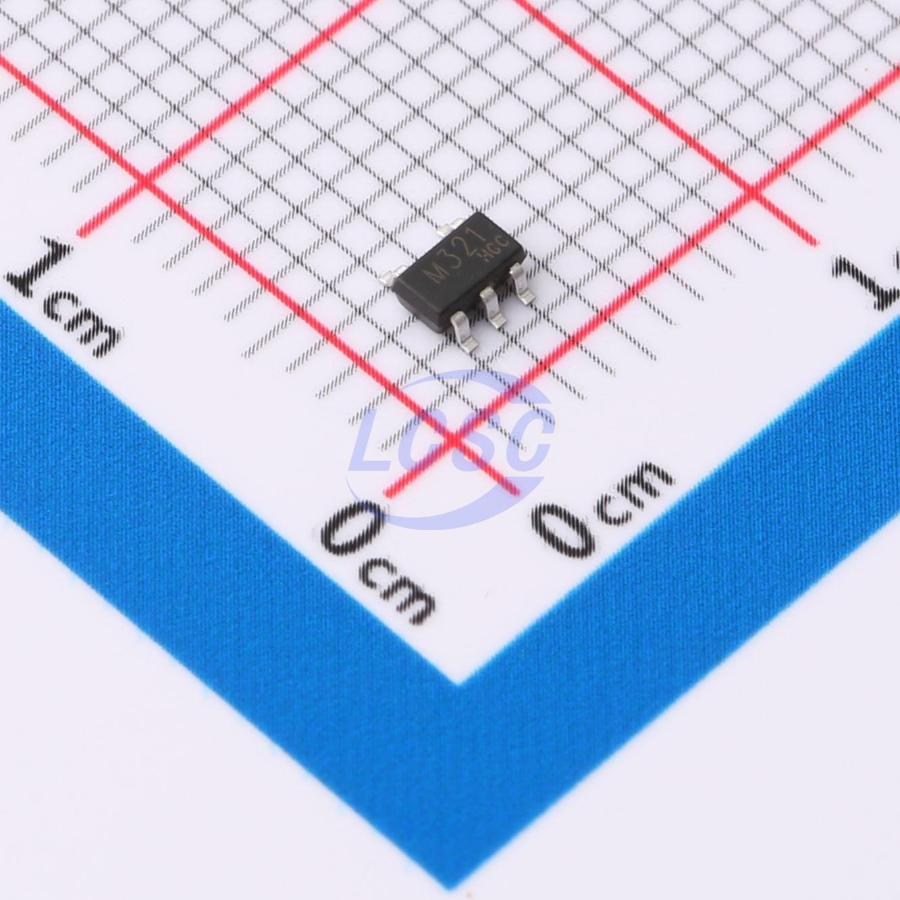

LM321IDBVRG
40mA 1 5mV 400V/ms 85dB 45nA 1MHz 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM321IDBVRG
- Store part #
- C5145290
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,640 in stock
#C5145290
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.05 | ₹101.00 |
| 200+ | ₹4.01 | ₹802.00 |
| 600+ | ₹3.49 | ₹2,094.00 |
| 3,000+ | ₹2.96 | ₹8,880.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.50 | ₹52,500.00 |
20 × ₹5.05
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321IDBVRG
₹101.00 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 430uA
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The LM321 combines performance and cost-efficiency for low-power systems. It features a high unity-gain bandwidth and a specified slew rate of 0.4V/μs, while drawing only 430μA quiescent current per amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is available in a SOT23-3 package. Overall, the LM321 is a low-power, wide supply range, high-performance op amp that can be designed into a wide variety of applications at an economical price without sacrificing valuable board space.
Applications
- Charger
- Power Supply
- Industrial Control
- Desktop
- Communication Infrastructure
Key features
- Gain-bandwidth product 1MHz
- Low supply current 430μA
- Low input bias current 45nA
- Wide supply voltage range +3V to +32V
- Stable with high capacitive loads
- Single-channel version of LM324
