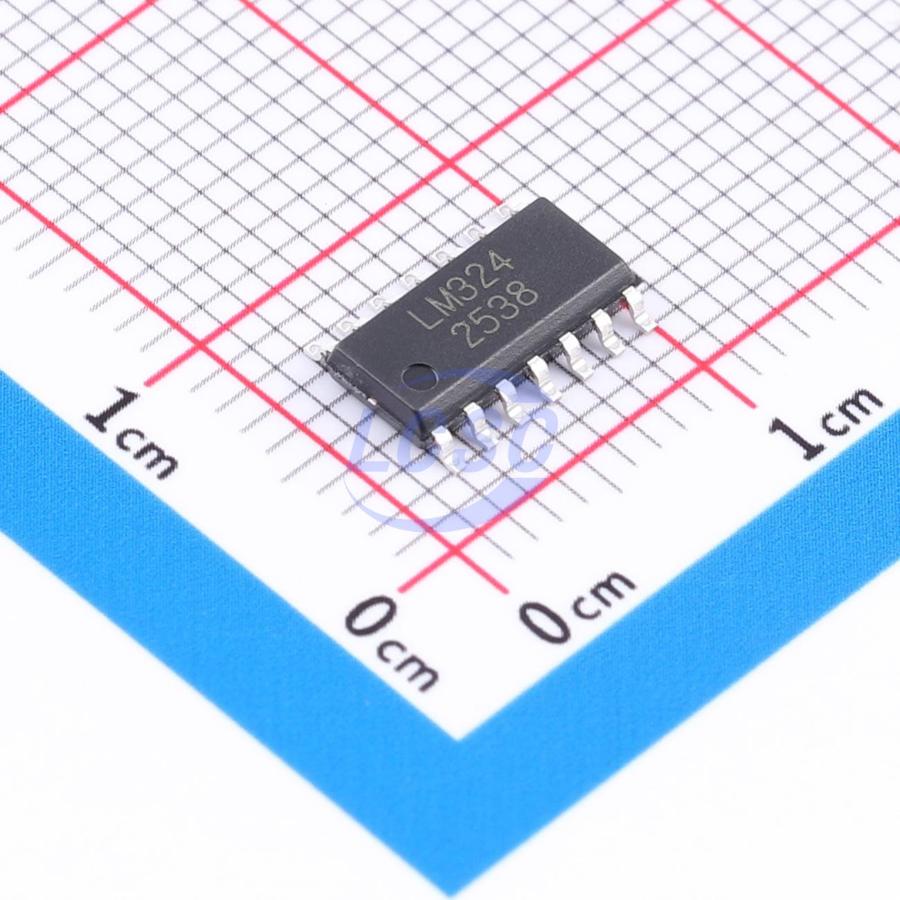

LM324-P14
35mA 4 2mV 500V/ms 80dB 50nA 800uA 1.2MHz SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- Shikues
- Manufacturer part #
- LM324-P14
- Store part #
- C53467487
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C53467487
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.25 | ₹76.25 |
| 50+ | ₹12.12 | ₹606.00 |
| 150+ | ₹10.56 | ₹1,584.00 |
| 500+ | ₹9.38 | ₹4,690.00 |
| 2,500+ | ₹8.44 | ₹21,100.00 |
| 5,000+ | ₹7.96 | ₹39,800.00 |
5 × ₹15.25
₹76.25
excl. GST
₹89.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324-P14
₹76.25 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Quiescent Current
- 800uA
- Gain Bandwidth Product
- 1.2MHz
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.272 g
Overview
The LM324 is a quad low-power differential op-amp supporting single or dual supply operation. It features high open-loop gain, internal compensation, wide common-mode input range, excellent temperature stability, and output short-circuit protection. The device operates from supply voltages as low as 3.0V up to 32V. Its common-mode input range includes the negative supply rail, eliminating the need for external biasing, and the output voltage range extends to the negative supply voltage. Widely used in sensor amplifier circuits, DC amplifier modules, audio amplifier circuits, and conventional op-amp circuit designs. Available in SOP14 and DIP14 packages.
Applications
- Sensor signal amplifier
- DC gain circuit
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Output short-circuit protection
- Four independent op-amps integrated
- Package types: SOP-14 and DIP-14
- Single-supply voltage range: 3V~32V
- Dual-supply voltage range: ±1.5V~±16V
- Unity-gain bandwidth: 1.2MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV324-P14#C53467540Shikues · SOP-14 | Shikues | SOP-14 | 2,465 | ₹15.89 · 2,465 in stock | View |
