Shikues

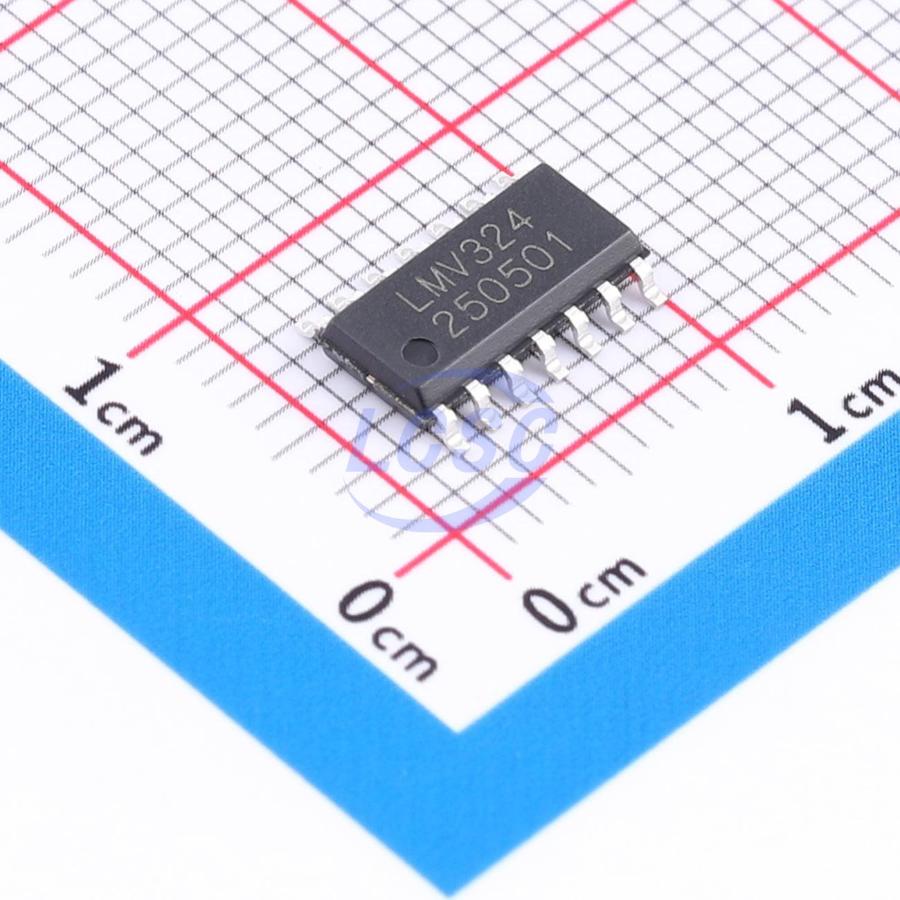

LMV324-P14

50mA 4 800uV 500V/ms 90dB 10pA 45uA 1MHz Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Manufacturer: Shikues
Manufacturer part #: LMV324-P14
Store part #: C53467540
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,465 in stock

#C53467540

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹15.89	₹79.45
50+	₹12.63	₹631.50
150+	₹10.99	₹1,648.50
500+	₹9.76	₹4,880.00
2,500+	₹8.78	₹21,950.00
5,000+	₹8.30	₹41,500.00

Quantity (min 5, multiples of 5)

5 × ₹15.89

₹79.45

excl. GST

₹93.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV324-P14

₹79.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 50mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10nA
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 10pA
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.26 g

Overview

The LMV324 is a low-power quad operational amplifier with rail-to-rail output swing. It is a cost-effective solution for applications requiring low supply voltage, space savings, and low cost. The LMV324 is designed for low supply voltage operation, with a minimum operating voltage of 2.1V and a maximum recommended operating voltage of 5.5V. The LMV324 is available in SOP-14 and DIP-14 package types.
