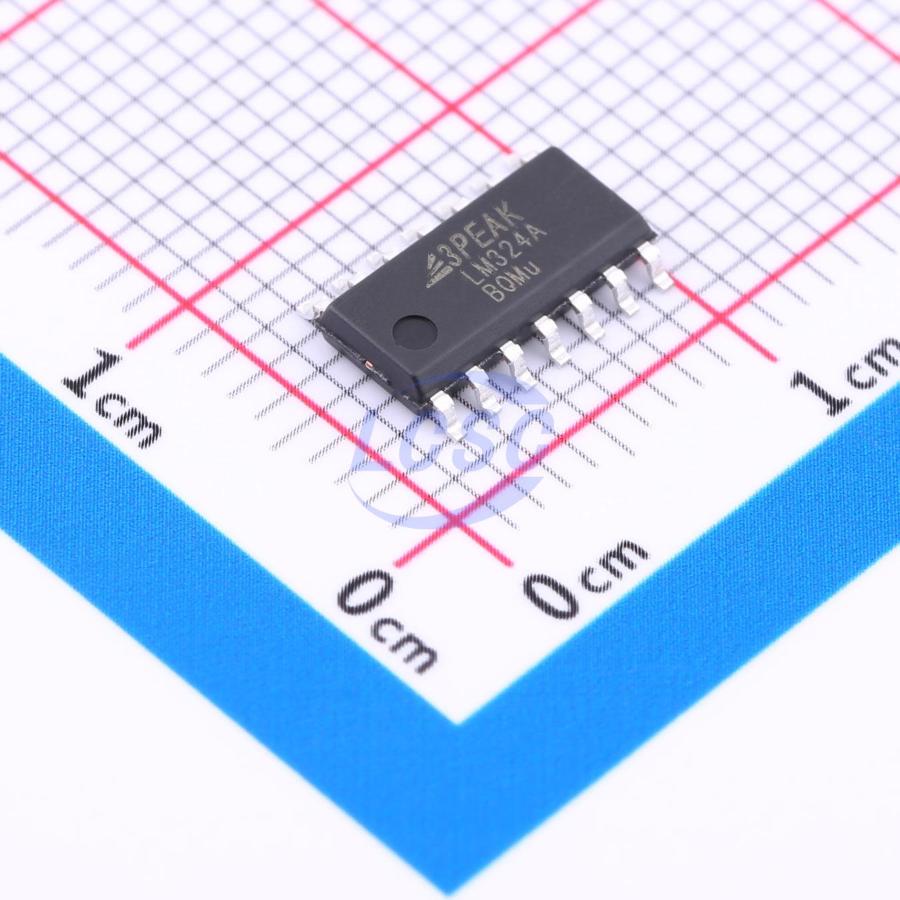

3PEAK

LM324A-SR

30mA 4 3mV 500V/ms 500pA 120dB 200uA 900kHz Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

36V General Purpose Op Amps

Manufacturer: 3PEAK
Manufacturer part #: LM324A-SR
Store part #: C2837714
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,835 in stock

#C2837714

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.46	₹87.30
50+	₹13.49	₹674.50
150+	₹11.52	₹1,728.00
500+	₹10.04	₹5,020.00
2,500+	₹8.85	₹22,125.00
5,000+	₹8.26	₹41,300.00

Quantity (min 5, multiples of 5)

5 × ₹17.46

₹87.30

excl. GST

₹103.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM324A-SR

₹87.30 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 500pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 900kHz
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.315 g

Overview

The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. They achieve very good AC performance with 0.9MHz bandwidth, 0.5V/μs slew rate and maximum 3mV offset while drawing only 100μA of quiescent current per amplifier. The input common - mode voltage range extends to V–, and the outputs swing rail - to - rail. The LM321A/358A/324A family can be used as plug - in replacements for many commercially available op - amps to reduce power and improve input/output range and performance. The combination of features makes the LM321A/358A/324A ideal choices for power module, industrial control, motor control and audio application.

Applications

Power Module
Sensor Interface
Motor Control
Audio

Key features

Supply Voltage: 3V to 36V
Low Supply Current: 100μA per channel
Input Common - Mode Voltage Range Includes Ground
Can Work as Comparator
Rail to Rail Output
Bandwidth: 0.9 MHz
Slew Rate: 0.5V/μs
Excellent EMI Suppress Performance: 71dB at 1GHz
Offset Voltage: ±3mV
Maximum Offset Voltage Temperature Drift: 7μV/°C
-40°C to 125°C Operation Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM2902A-SR#C51492153PEAK · SOP-14	3PEAK	SOP-14	5,680	₹19.34 · 5,680 in stock	View
TP2264-SR#C2485623PEAK · SOIC-14	3PEAK	SOIC-14	1,695	₹56.81 · 1,695 in stock	View
TP6004-SR#C1818383PEAK · SOIC-14	3PEAK	SOIC-14	2,655	₹71.12 · 2,655 in stock	View
TP1564AL1-SR#C2487263PEAK · SOIC-14	3PEAK	SOIC-14	575	₹70.57 · 575 in stock	View
TP1564AL1-SO2R-S#C385998573PEAK · SOP-14	3PEAK	SOP-14	70	₹135.05 · 70 in stock	View
