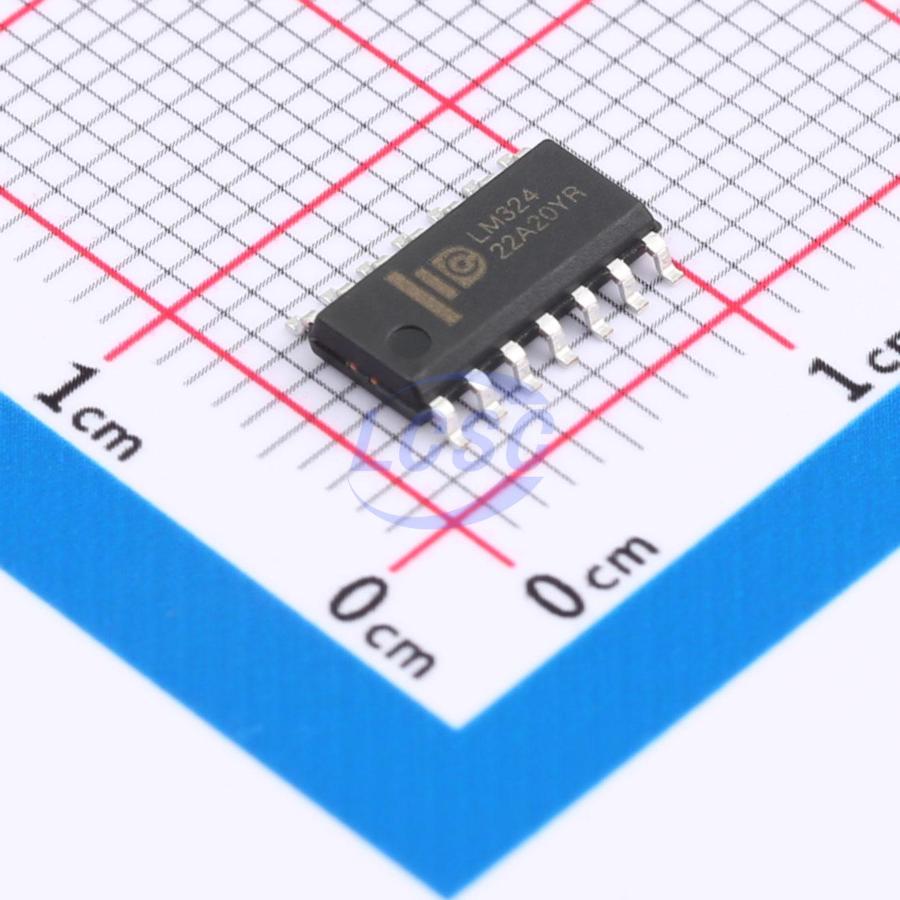

LM324S
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
1MHz high-voltage bipolar quad operational amplifier
- Manufacturer
- IDCHIP
- Manufacturer part #
- LM324S
- Store part #
- C7432021
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,120 in stock
#C7432021
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.60 | ₹86.00 |
| 100+ | ₹6.73 | ₹673.00 |
| 300+ | ₹5.79 | ₹1,737.00 |
| 2,500+ | ₹5.09 | ₹12,725.00 |
| 5,000+ | ₹4.54 | ₹22,700.00 |
| 10,000+ | ₹4.25 | ₹42,500.00 |
10 × ₹8.60
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324S
₹86.00 for 10 + GST
Specifications
- Output Current
- 240mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -25℃~+85℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 2.36mA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.293 g
Overview
The LM324 is a quad operational amplifier with true differential inputs, featuring a gain-bandwidth product of 1MHz, a slew rate of 0.4V/μs, and a quiescent current of only 2.36mA at 5V supply. The LM324 is designed to deliver optimal performance in high-voltage, low-noise systems. This IC operates in both single-supply and dual-supply applications, and is well-suited for driving large capacitive loads. The LM324 is available in a SOP-14 package, offering high performance with a wide supply voltage range to meet diverse circuit applications without compromising board space.
Applications
- Filters
- Home appliances
- Medical instruments
- Alarm devices
- Audio output
- Electronic toys
- Automatic control
- Sensor interfaces
- Piezoelectric sensor amplifiers
Key features
- Internal frequency compensation, high DC voltage gain (85dB)
- Unity-gain bandwidth (1MHz)
- Low supply current (2.36mA)
- Low input bias current (45nA)
- Wide supply voltage range (+3V~30V)
- Low input offset voltage and offset current
- Wide common-mode input voltage range
- Wide differential input voltage range
- Stable with high capacitive loads
