IDCHIPDatasheet (PDF)

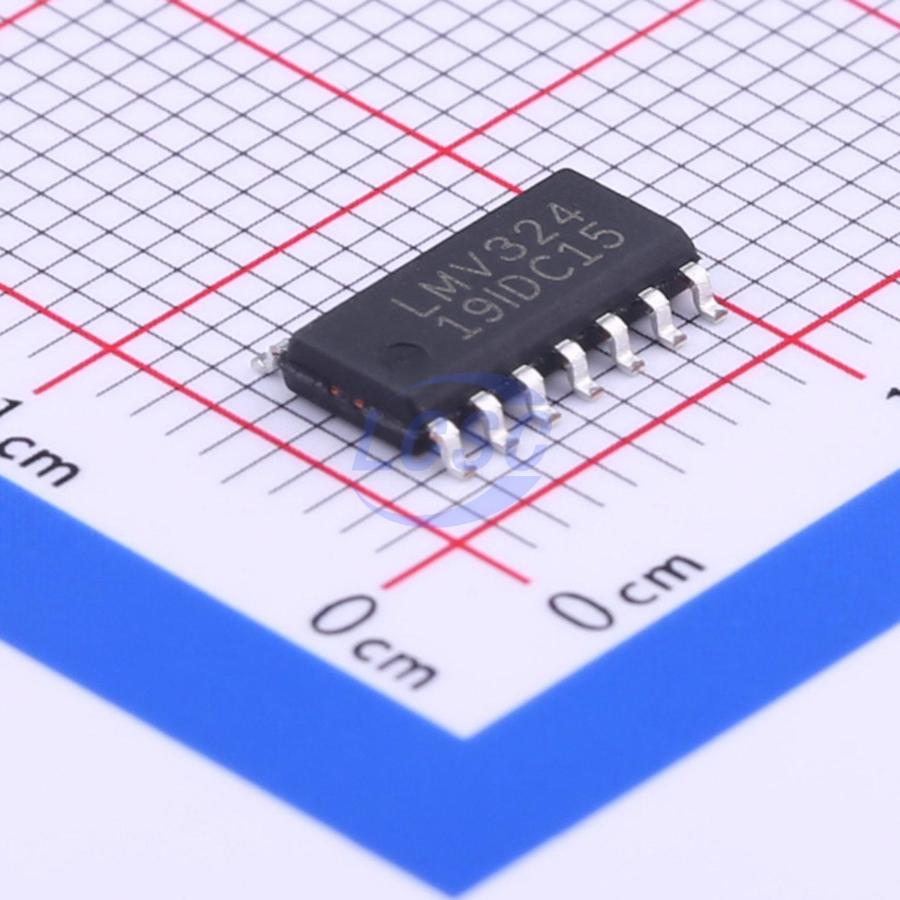

LMV324
Standard (General Purpose) Amplifier 4 Circuit SOP-14
SOP-14ROHS CompliantActive
Quad low-power operational amplifiers
- Manufacturer
- IDCHIP
- Manufacturer part #
- LMV324
- Store part #
- C395458
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C395458
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.01 | ₹85.05 |
| 50+ | ₹13.89 | ₹694.50 |
| 150+ | ₹12.33 | ₹1,849.50 |
| 500+ | ₹11.15 | ₹5,575.00 |
| 2,500+ | ₹8.96 | ₹22,400.00 |
| 5,000+ | ₹8.48 | ₹42,400.00 |
5 × ₹17.01
₹85.05
excl. GST
₹100.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324
₹85.05 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 2.8dB
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 40uV/√Hz@1kHz
- Single Supply
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.255 g
Overview
The LMV324 is a quad operational amplifier with true differential inputs. Compared to standard op-amps in single-supply applications, it offers several significant advantages. The quiescent current is approximately one-fifth that of the MC1741 (per amplifier). The common-mode input range includes the negative supply, eliminating the need for external biasing components in many applications. The output voltage range also extends to the negative supply voltage. The LMV324 comes in a SOP14 package. Overall, the LMV324 is a low-power, wide supply range op-amp that can be designed into a variety of applications at an economical cost without sacrificing valuable board space.
Applications
- Various filters
- Home appliances & electronic toys
- Sensor interfaces
- Piezoelectric sensor amplifiers
- Medical instruments
- Audio output
- Mobile communications & portable systems
- Alarm devices & automatic control
Key features
- Short-circuit protected outputs
- True differential input stage
- Single-supply operation: 3V to 5.5V
- Low input bias current: 100nA max
- Four amplifiers per package
- Internal compensation
- Common-mode range extends to negative voltages
- Industry-standard pinout
- ESD protection on inputs
