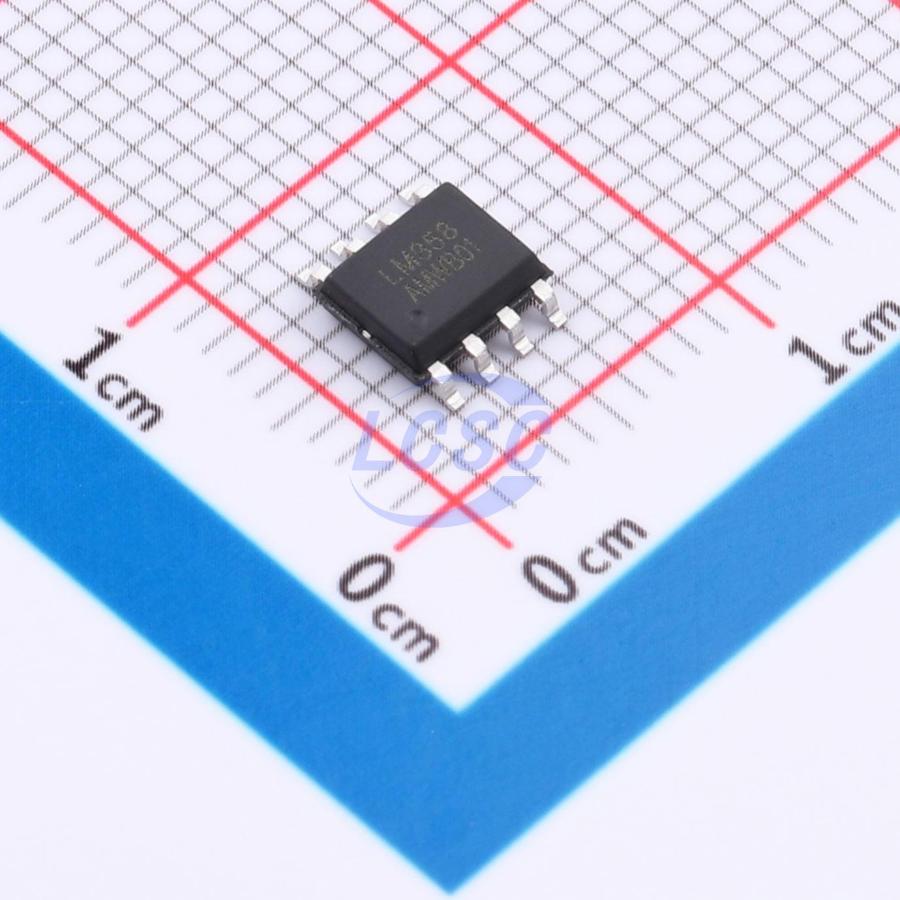

LM358
40mA 2 2mV 400V/ms 80dB 50nA 1MHz 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM358
- Store part #
- C53340896
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,860 in stock
#C53340896
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.35 | ₹63.50 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 1,000+ | ₹3.82 | ₹3,820.00 |
| 4,000+ | ₹3.41 | ₹13,640.00 |
| 8,000+ | ₹3.21 | ₹25,680.00 |
10 × ₹6.35
₹63.50
excl. GST
₹74.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358
₹63.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 500uA
- Dual Supply
- -12V~-1.5V;1.5V~12V
- Single Supply
- 3V~24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
This is a dual-channel, low-power differential operational amplifier that can be powered by either a single or dual supply. It features high open-loop gain, internal compensation, high common-mode input range, good temperature stability, and output short-circuit protection. It operates from supply voltages as low as 3.0V up to 24V, with a common-mode input range that includes the negative supply rail, requires no external biasing, and an output voltage range that includes the negative supply voltage.
Applications
- Temperature sensors
- Battery-powered instruments
- Smoke/gas/environmental sensors
- Medical devices
- Portable instruments and mobile devices
- Active filters
- Piezoelectric transducer amplifiers
- Sensor interfaces
- Audio amplifiers
Key features
- General purpose, low cost
- Gain bandwidth product: 1MHz
- Single supply voltage range: 3V~24V
- Dual supply voltage range: ±1.5V to ±12V
- Low power consumption: typical 0.5mA@VCC = 5V
- Internal frequency compensation
- Output short-circuit protection
- Package type: SOP-8
