3PEAK

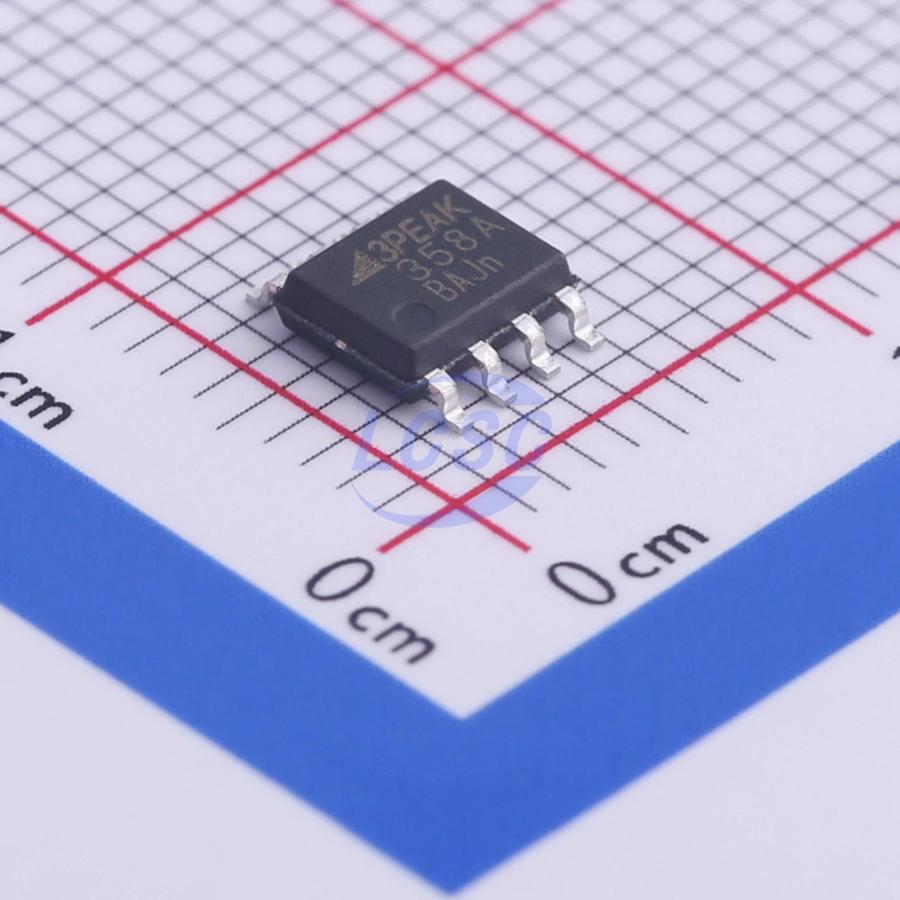

LM358A-SR

30mA 2 7mV 500V/ms 600pA 120dB 200uA 900kHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

36V General Purpose Op Amps

Manufacturer: 3PEAK
Manufacturer part #: LM358A-SR
Store part #: C415708
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,23,165 in stock

#C415708

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹12.75	₹63.75
50+	₹9.86	₹493.00
150+	₹8.41	₹1,261.50
500+	₹7.33	₹3,665.00
2,500+	₹6.47	₹16,175.00
4,000+	₹6.03	₹24,120.00

Quantity (min 5, multiples of 5)

5 × ₹12.75

₹63.75

excl. GST

₹75.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM358A-SR

₹63.75 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 7mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 600pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 900kHz
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.244 g

Overview

The LM321A/358A/324A series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable frequency response. They achieve very good AC performance with 0.9MHz bandwidth, 0.5V/μs slew rate and maximum 3mV offset while drawing only 100μA of quiescent current per amplifier. The input common-mode voltage range extends to V–, and the outputs swing rail-to-rail. The LM321A/358A/324A family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance. The combination of features makes the LM321A/358A/324A ideal choices for power module, industrial control, motor control and audio application.

Applications

Power Module
Sensor Interface
Motor Control
Audio

Key features

Supply Voltage: 3V to 36V
Low Supply Current: 100μA per channel
Input Common-Mode Voltage Range Includes Ground
Can Work as Comparator Rail to Rail Output
Bandwidth: 0.9 MHz
Slew Rate: 0.5V/μs
Excellent EMI Suppress Performance: 71dB at 1GHz
Offset Voltage: ±3mV
Maximum Offset Voltage Temperature Drift: 7μV/°C
-40°C to 125°C Operation Temperature Range

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM2904A-SO1R-S#C224683083PEAK · SOP-8	3PEAK	SOP-8	4,330	₹26.10 · 4,330 in stock	View
LM2904A-SR#C27643563PEAK · SOIC-8	3PEAK	SOIC-8	29,465	₹12.87 · 29,465 in stock	View
TP2262-SR#C2485633PEAK · SOIC-8	3PEAK	SOIC-8	17,680	₹45.71 · 17,680 in stock	View
TP2582-SR#C29023533PEAK · SOIC-8	3PEAK	SOIC-8	26,685	₹36.25 · 26,685 in stock	View
TP1242L1-SR#C182362603PEAK · SO-8	3PEAK	SO-8	2,214	₹92.49 · 2,214 in stock	View
