3PEAKDatasheet (PDF)

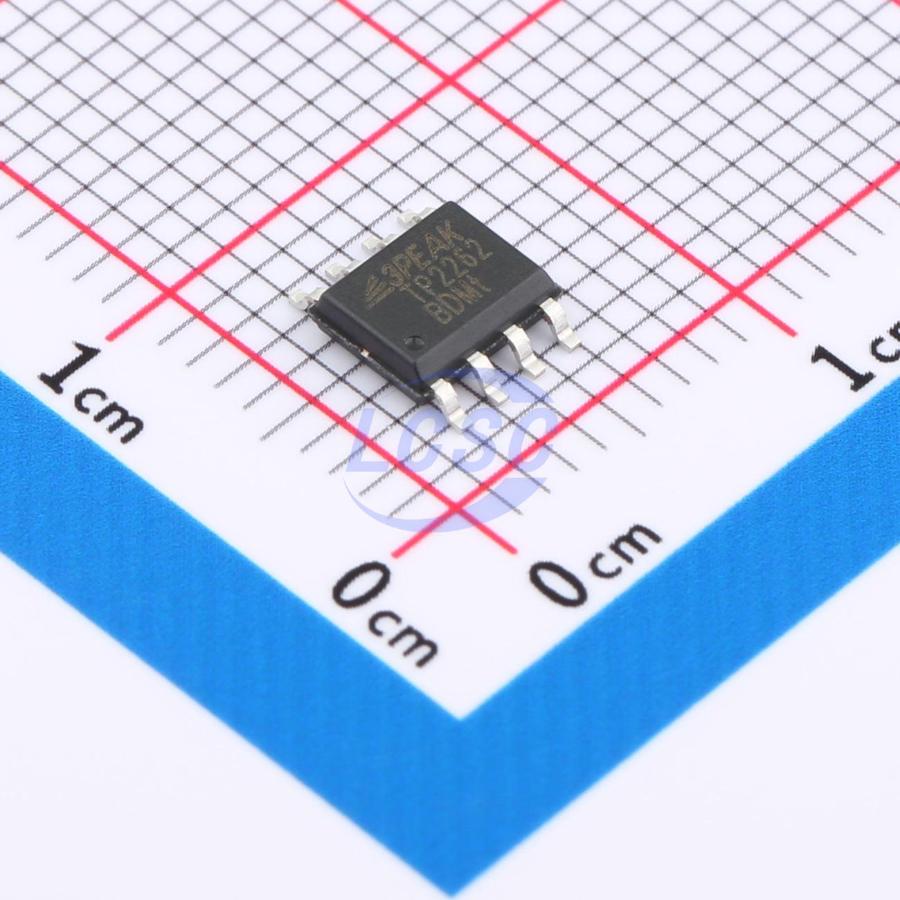

TP2262-SR
32mA 2 3mV 15V/us 25pA 120dB 700uA 3.5MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
36V, 4MHz, 15V/μs Op Amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2262-SR
- Store part #
- C248563
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,680 in stock
#C248563
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.71 | ₹228.55 |
| 50+ | ₹35.15 | ₹1,757.50 |
| 150+ | ₹30.63 | ₹4,594.50 |
| 500+ | ₹24.98 | ₹12,490.00 |
| 2,500+ | ₹22.46 | ₹56,150.00 |
| 4,000+ | ₹20.96 | ₹83,840.00 |
5 × ₹45.71
₹228.55
excl. GST
₹269.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP2262-SR
₹228.55 for 5 + GST
Specifications
- Output Current
- 32mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 15V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 25pA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 3.5MHz
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.247 g
Overview
The TP226X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 4MHz bandwidth, 15V/μs slew rate and low distortion while drawing only 700μμ of quiescent current per amplifier. The input common-mode voltage range extends to V- and the outputs swing rail-to-rail. The TP226X family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance. The combination of features makes the TP226X ideal choices for industrial control, motor control and portable audio amplification, sound ports, and other consumer Audio.
Applications
- Active Filters, ASIC Input or Output Amplifier
- Sensor Interface
- Motor Control
- Industrial Control
- Audio
Key features
- Supply Voltage: 3V to 36V
- Low Supply Current: 700μA per channel
- Rail to Rail Output
- Bandwidth: 4 MHz Slew Rate: 15V/μs
- Excellent EMI Suppress Performance
- Offset Voltage: ±3mV Maximum
- Offset Voltage Temperature Drift: 2μV/°C
- Low Noise: 30nV/√Hz at 1kHz
- -40°C to 125°C Operation Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP1282L1-SR#C29023483PEAK · SOP-8 | 3PEAK | SOP-8 | 4,459 | ₹133.78 · 4,459 in stock | View |
 | TPA2672-SO1R#C191894603PEAK · SOP-8 | 3PEAK | SOP-8 | 845 | ₹31.86 · 845 in stock | View |
 | TPH2502-SR#C1182233PEAK · SOP-8 | 3PEAK | SOP-8 | 6,690 | ₹76.07 · 6,690 in stock | View |
