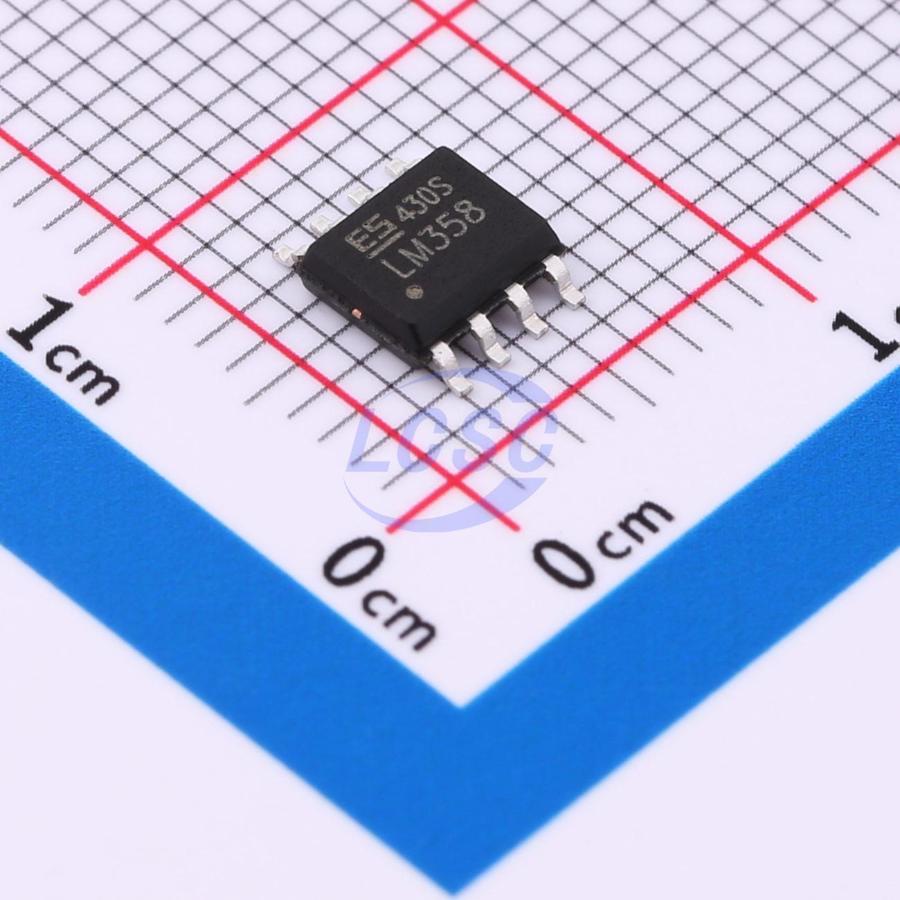

LM358ADT(ES)

Jingxin Micro high-voltage general-purpose op-amp LM358ADT(ES) adopts advanced process technology with full-flow automotive-grade standard control, available in single, dual, and quad configurations. Featuring proprietary circuit design techniques with classic rail-to-rail input/output swing, it delivers high consistency and symmetry across the full operating voltage and temperature range. Particularly suitable for cost-sensitive and space-constrained applications, it provides excellent overall circuit compatibility. The LM358ADT(ES) incorporates a built-in overload protection circuit that enables the amplifier to activate recovery when overloaded and resume normal operation within a short time, greatly enhancing circuit reliability. The op-amp is available in industry-standard packages including SOP, MSOP, SOT-23, and TSSOP. The quad op-amp (ESLM324A) also offers a unique QFN16 3×3 package, ideal for high-density space-constrained applications. These devices contain 4 independent high-gain frequency-compensated op-amps, designed for single-supply operation across a wide voltage range. Dual-supply operation is also supported when the voltage difference between the two supplies is between 3V and 36V, and VCC is at least 1.5V above the positive common-mode input voltage. The low supply current drain is independent of supply voltage magnitude. Typical applications include sensor amplifiers, DC gain blocks, and all conventional op-amp circuits, which can now be implemented more easily in single-supply voltage systems. Slew rate is the rate at which an op-amp can change its output in response to an input change. The LM358ADT(ES) features a slew rate of 1.0 V/μs. Gain-bandwidth product equals the measured amplifier bandwidth multiplied by the gain at which the bandwidth was measured. These devices offer a high gain-bandwidth of 1.0MHz. The LM358ADT(ES) provides low input offset voltage under high-voltage supply conditions, with a typical value as low as 0.35mV. For a high-voltage general-purpose op-amp, minimizing input offset voltage while maintaining other op-amp parameters maximizes the application scope and range, making it especially suitable for high-sensitivity applications. The op-amp is suited for various signal conditioning applications. Inputs can be powered before Vs to enable flexible multi-supply circuit capability. The amplifier accepts a positive voltage at the input and converts it to a negative voltage of equal magnitude, and similarly converts negative input voltages to positive voltages.

Applications

• Motor drives, automotive electronics, inverters, UPS, home appliances, indoor/outdoor air conditioners, sensor modules, power modules

Key features

• Ultra-low input offset voltage: ±3mV
• Supply voltage: 3V~36V
• Single/dual supply operation
• Low quiescent current: 117μA/ch
• Low wideband noise: 35nV/√Hz
• Rail-to-rail input/output
• Unity gain bandwidth: 1MHz
• Built-in overload fast recovery for enhanced op-amp reliability
• Operating temperature range: -40℃~125℃
