HGSEMIDatasheet (PDF)

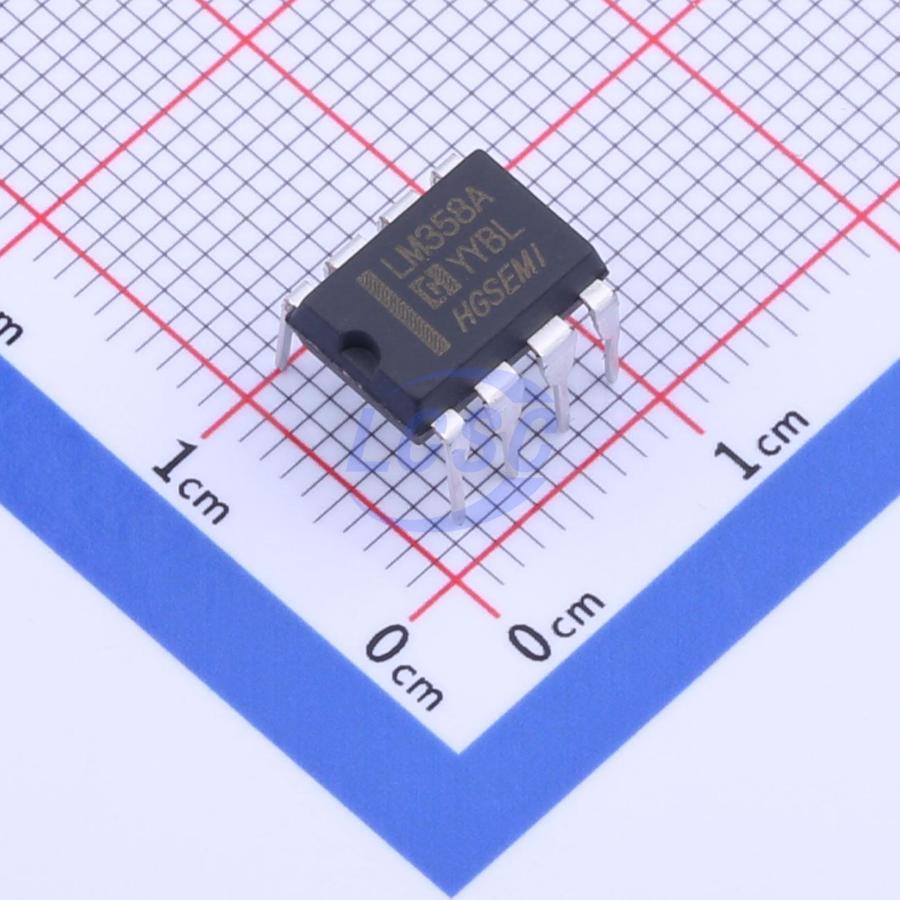

LM358AN
Standard (General Purpose) Amplifier 2 Circuit DIP-8
DIP-8RoHSActive
DUAL OPERATIONAL AMPLIFIERS
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM358AN
- Store part #
- C2683130
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,575 in stock
#C2683130
Stock & price checked 14 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.38 | ₹71.90 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.84 | ₹1,476.00 |
| 500+ | ₹8.67 | ₹4,335.00 |
| 2,000+ | ₹7.73 | ₹15,460.00 |
| 4,000+ | ₹7.25 | ₹29,000.00 |
5 × ₹14.38
₹71.90
excl. GST
₹84.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM358AN
₹71.90 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 700kHz
- Dual Supply
- -18V~18V
- Single Supply
- 5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.784 g
Overview
The LM258A/LM358A is a dual low-power differential op-amp that operates from either single or dual supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and general-purpose op-amp applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5V
- Package: DIP-8, SOP-8, MSOP-8
- Single-supply voltage range: 3V~36V
- Dual-supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
