HGSEMIDatasheet (PDF)

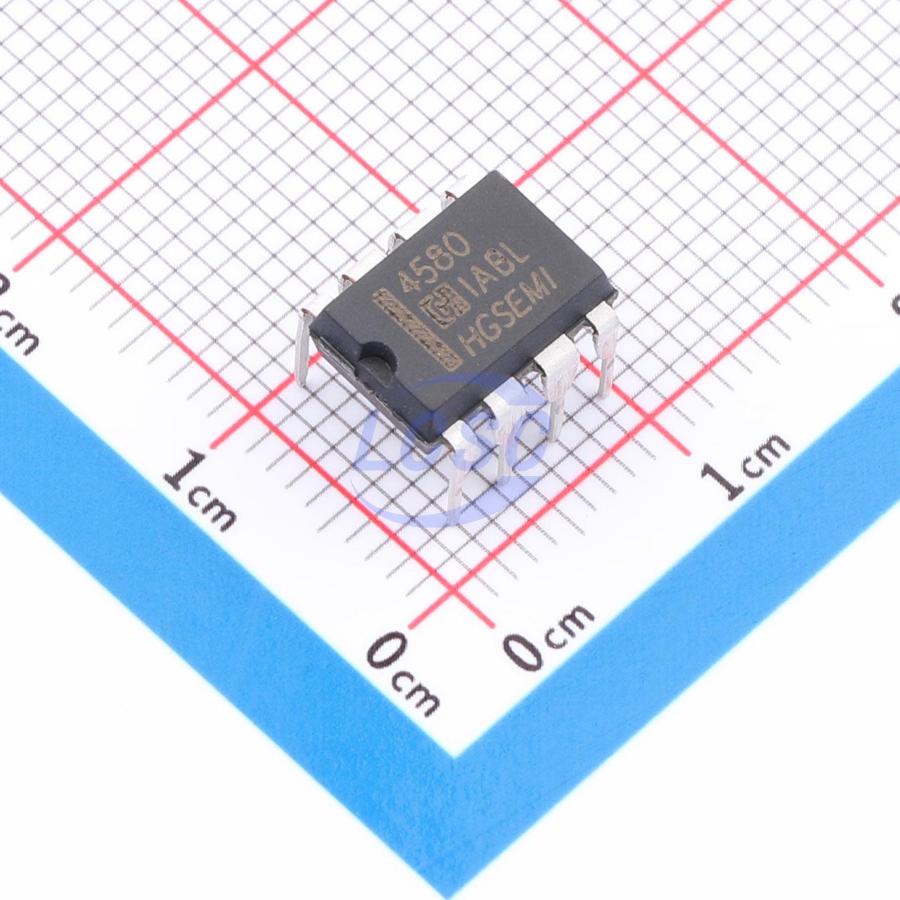

NJM4580N
50mA 2 3mV 5V/us 100nA 110dB 6mA 15MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- HGSEMI
- Manufacturer part #
- NJM4580N
- Store part #
- C41427257
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C41427257
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.11 | ₹140.55 |
| 50+ | ₹22.08 | ₹1,104.00 |
| 150+ | ₹19.49 | ₹2,923.50 |
| 500+ | ₹16.26 | ₹8,130.00 |
| 2,500+ | ₹14.82 | ₹37,050.00 |
| 5,000+ | ₹13.96 | ₹69,800.00 |
5 × ₹28.11
₹140.55
excl. GST
₹165.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
NJM4580N
₹140.55 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 100nA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- -2V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.56 g
Overview
NJM4580 is the dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic part of audio pre - amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current. And further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the input low voltage source.
Key features
- Operating Voltage： ±2V~±16V
- Low Input Noise Voltage： 0.8μVrms Typ.
- Wide Gain Bandwidth Product : 15mhz Typ.
- Low Distortion : 0.0005% Typ.
- Slew Rate:5V/µA Typ.
- Package Outline DIP - 8、SOP - 8、DFN - 8 and MSOP - 8. Bipolar Technology.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| JRC4580N#C41427258HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,875 | ₹28.11 · 1,875 in stock | View | |
 | RC4580N#C2987281HGSEMI · DIP-8 | HGSEMI | DIP-8 | 295 | ₹31.02 · 295 in stock | View |
 | MC33078N#C52121520HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,840 | ₹29.45 · 1,840 in stock | View |
 | LM833N#C2987280HGSEMI · DIP-8 | HGSEMI | DIP-8 | 660 | ₹26.39 · 660 in stock | View |
| JRC4560N#C41415964HGSEMI · DIP-8 | HGSEMI | DIP-8 | 965 | ₹26.47 · 965 in stock | View | |
