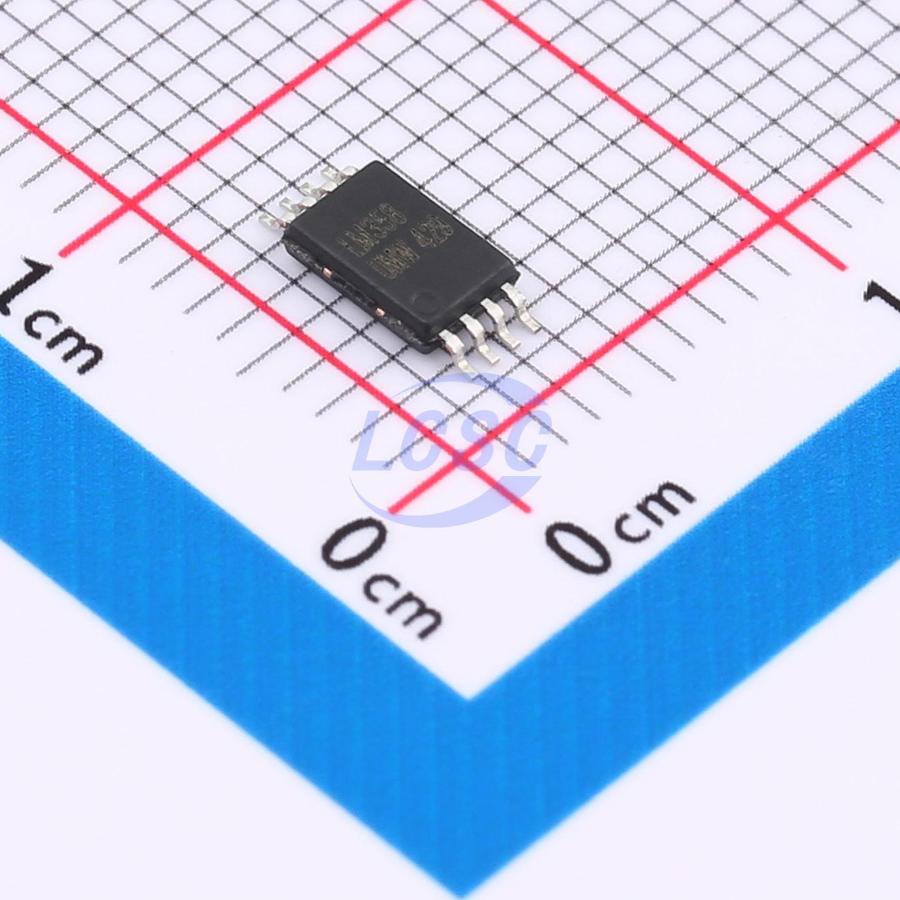

LM358PWR(UMW)
Standard (General Purpose) Amplifier 2 Circuit TSSOP-8
TSSOP-8ROHS CompliantActive
Dual Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LM358PWR(UMW)
- Store part #
- C41367195
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,830 in stock
#C41367195
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.07 | ₹60.35 |
| 50+ | ₹9.54 | ₹477.00 |
| 150+ | ₹8.27 | ₹1,240.50 |
| 500+ | ₹7.32 | ₹3,660.00 |
| 2,500+ | ₹6.56 | ₹16,400.00 |
| 4,000+ | ₹6.18 | ₹24,720.00 |
5 × ₹12.07
₹60.35
excl. GST
₹71.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358PWR(UMW)
₹60.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 1.1MHz
- Quiescent Current
- 500uA
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -16V~16V
- Single Supply
- 300mV~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
The LM358 contains two independent high-gain operational amplifiers. It operates from either single or dual supplies, with supply current independent of supply voltage. Applications include frequency converters, DC gain modules, and all standard op-amp circuits. Available in DIP8, SOP8, and TSSOP-8 packages.
Key features
- Single or dual supply operation
- Compatible logic circuits
- Two internally compensated op-amps in one package
- Low power consumption
- Wide frequency range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD8632ART(UMW)#C18207574UMW · TSSOP-8 | UMW | TSSOP-8 | 4,215 | ₹22.81 · 4,215 in stock | View |
 | LMV722MT(UMW)#C18207572UMW · TSSOP-8 | UMW | TSSOP-8 | 1,900 | ₹17.29 · 1,900 in stock | View |
 | AD8542ARUZ(UMW)#C18207579UMW · TSSOP-8 | UMW | TSSOP-8 | 4,265 | ₹15.94 · 4,265 in stock | View |
 | AD8532ARUZ(UMW)#C22368270UMW · TSSOP-8 | UMW | TSSOP-8 | 1,730 | ₹32.10 · 1,730 in stock | View |
 | LMV358IPWR(UMW)#C18207578UMW · TSSOP-8 | UMW | TSSOP-8 | 3,950 | ₹14.02 · 3,950 in stock | View |
