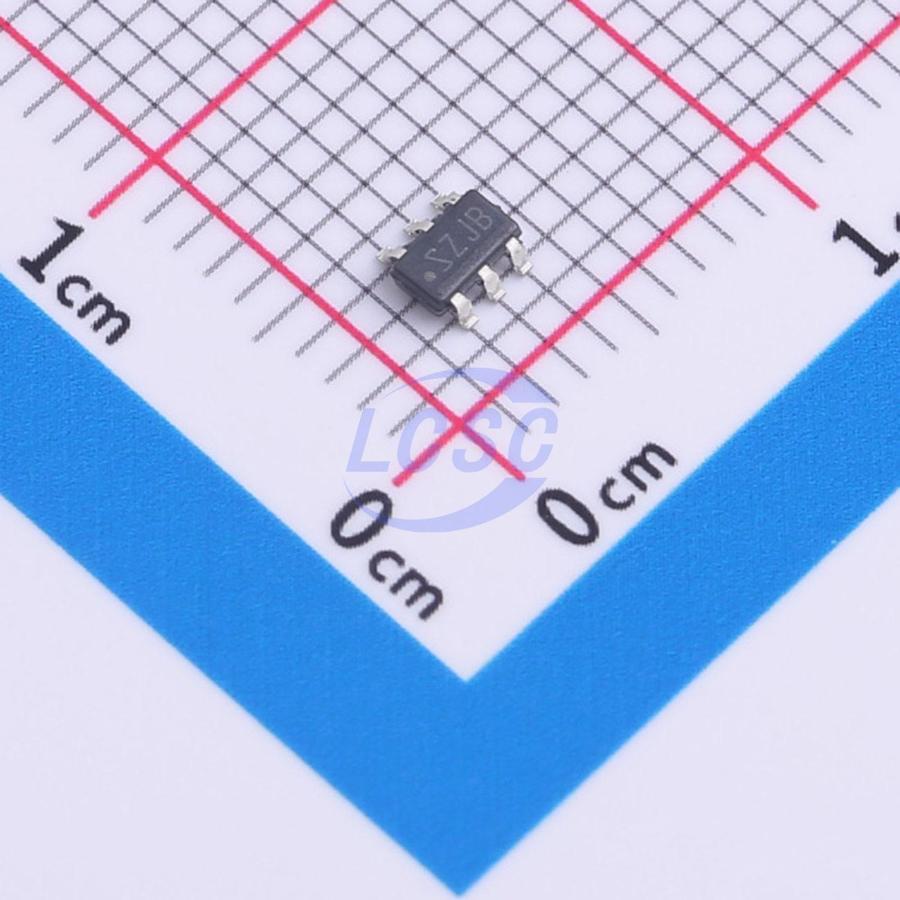

LM5050MK-2/NOPB
32uA 1 1.9A SOT-23-6-THIN OR Controllers, Ideal Diodes RoHS
SOT-23-6-THINROHS3 CompliantActive
High Side OR-ing FET Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5050MK-2/NOPB
- Store part #
- C2760463
- Package / case
- SOT-23-6-THIN
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,891 in stock
#C2760463
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.40 | ₹242.40 |
| 10+ | ₹204.46 | ₹2,044.60 |
| 30+ | ₹183.65 | ₹5,509.50 |
| 100+ | ₹160.02 | ₹16,002.00 |
| 500+ | ₹149.60 | ₹74,800.00 |
| 1,000+ | ₹144.84 | ₹1,44,840.00 |
1 × ₹242.40
₹242.40
excl. GST
₹286.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM5050MK-2/NOPB
₹242.40 for 1 + GST
Specifications
- Quiescent Current
- 350uA
- Operating temperature
- -40℃~+125℃
- FET Type
- External FET
- Current - Output High(IOH)
- 32uA
- Gate Drive Voltage
- 11.5V
- Input Voltage (Vin)
- 6V~75V
- Function
- Reverse current blocking;With enable
- Number of Channels
- 1
- Current - Output Low(IOL)
- 1.9A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
The LM5050-2 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This OR-ing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops. The LM5050-2 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-2 can connect power supplies ranging from +6V to +75V and can withstand transients up to +100V. The LM5050-2 also provides a FET test diagnostic mode which allows the system controller to test for shorted MOSFETs.
Applications
- Active OR-ing of Redundant (N+1) Power Supplies
Key features
- Wide Operating Input Voltage Range: +6V to +75V
- +100 Volt Transient Capability
- Charge Pump Gate Driver for External N Channel MOSFET
- MOSFET Diagnostic Test Mode
- Fast 50ns Response to Current Reversal
- 2A Peak Gate Turn-off Current
- Minimum vDS Clamp for Faster Turn-off
- Package: SOT-6 (Thin SOT23-6)
