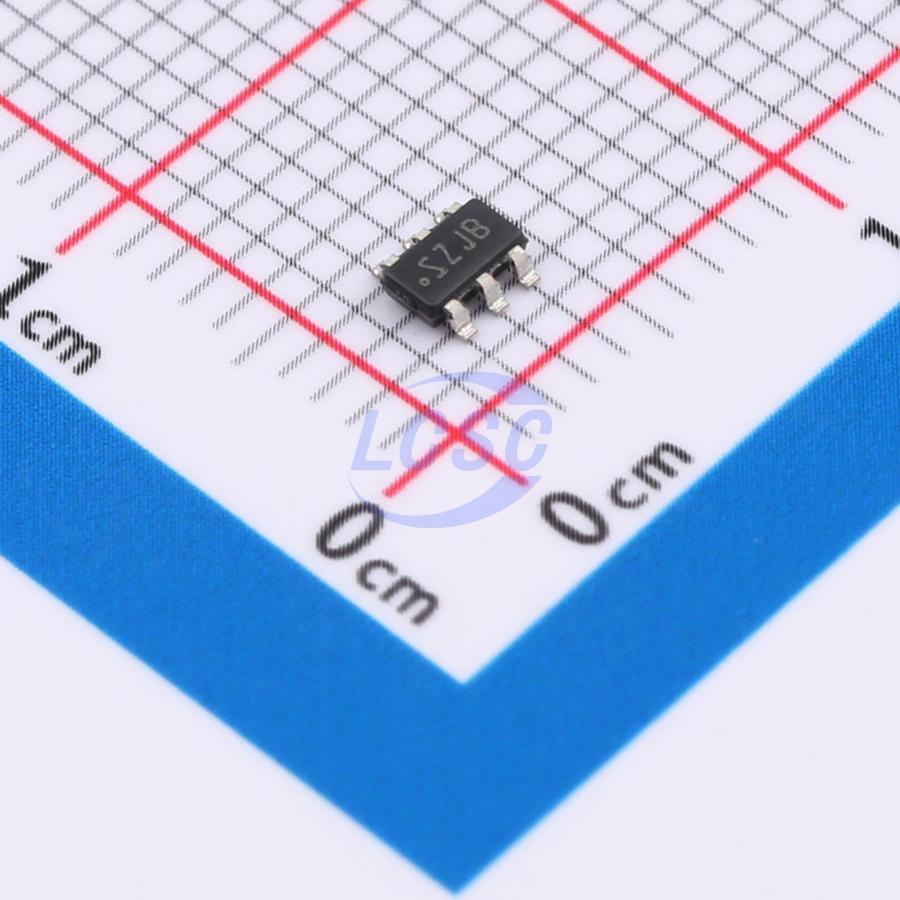

LM5050MKX-2/NOPB

1 SOT-23-Thin-6 OR Controllers, Ideal Diodes RoHS

SOT-23-Thin-6ROHS3 CompliantActive

High Side OR-ing FET Controller

Manufacturer: TI
Manufacturer part #: LM5050MKX-2/NOPB
Store part #: C2877562
Package / case: SOT-23-Thin-6
Category: OR Controllers, Ideal Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,483 in stock

#C2877562

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹155.62	₹155.62
10+	₹138.02	₹1,380.20
30+	₹128.45	₹3,853.50
100+	₹117.80	₹11,780.00
500+	₹112.81	₹56,405.00
1,000+	₹110.63	₹1,10,630.00

Quantity (min 1)

1 × ₹155.62

₹155.62

excl. GST

₹183.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM5050MKX-2/NOPB

₹155.62 for 1 + GST

Specifications

Operating temperature: -40℃~+125℃
FET Type: External FET
Input Voltage (Vin): 6V~75V
Function: Reverse current blocking
Number of Channels: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.35 g

Overview

The LM5050-2 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This OR-ing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops. The LM5050-2 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-2 can connect power supplies ranging from +6V to +75V and can withstand transients up to +100V. The LM5050-2 also provides a FET test diagnostic mode which allows the system controller to test for shorted MOSFETs.
