XBLWDatasheet (PDF)

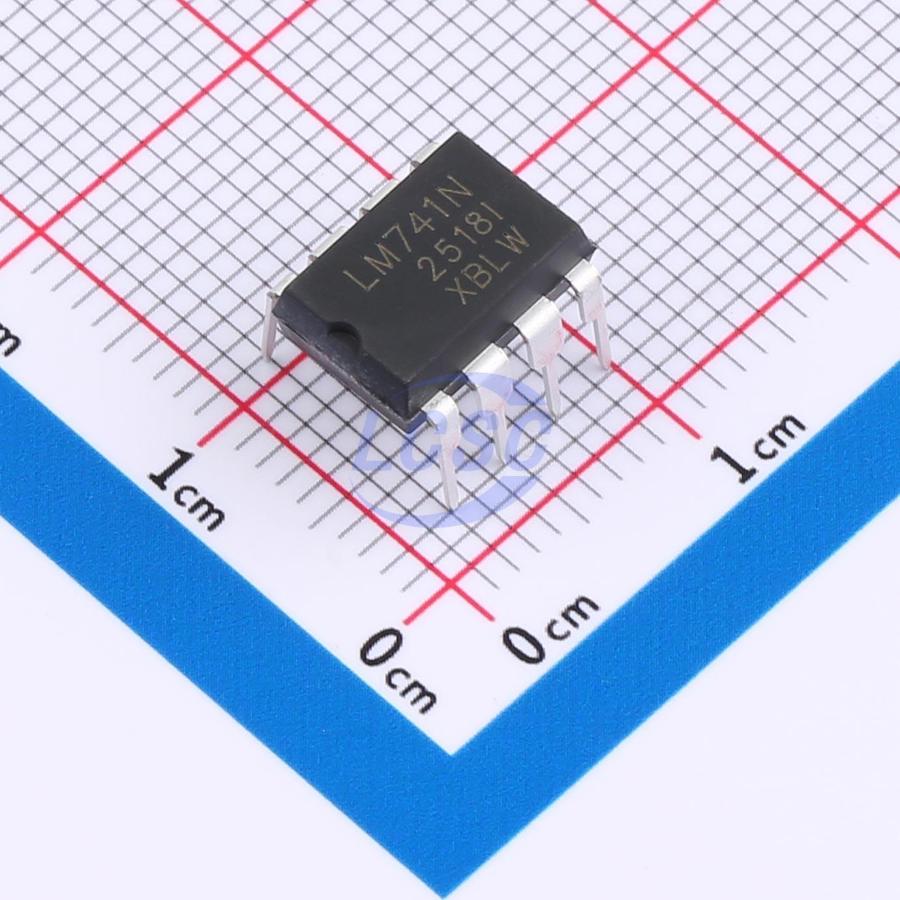

LM741N(XBLW)
Standard (General Purpose) Amplifier 1 Circuit DIP-8
DIP-8ROHS CompliantActive
General-purpose single operational amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- LM741N(XBLW)
- Store part #
- C48971055
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,415 in stock
#C48971055
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.97 | ₹84.85 |
| 50+ | ₹13.32 | ₹666.00 |
| 150+ | ₹11.51 | ₹1,726.50 |
| 500+ | ₹10.13 | ₹5,065.00 |
| 2,000+ | ₹9.05 | ₹18,100.00 |
| 4,000+ | ₹8.49 | ₹33,960.00 |
5 × ₹16.97
₹84.85
excl. GST
₹100.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM741N(XBLW)
₹84.85 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 10nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 1.7mA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 23nV/√Hz@1kHz
- Single Supply
- 5V~40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.797 g
Overview
LM741 is a high-performance monolithic operational amplifier built on a single silicon chip. It is suitable for a wide range of analog applications. The high gain and wide operating voltage range deliver excellent performance in integrators, summing amplifiers, and general feedback applications. An internal compensation network (6 dB/octave) ensures stability in closed-loop circuits. The device is available in SOP-8 and DIP-8 packages.
Applications
- Comparator
- Multivibrator
- DC amplifier
- Summing amplifier
- Integrator or differentiator
- Active filter
Key features
- Wide input voltage range
- Latch-up free
- High gain
- Short-circuit protection
- No frequency compensation required
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL072CN(XBLW)#C19267480XBLW · DIP-8 | XBLW | DIP-8 | 3,705 | ₹28.17 · 3,705 in stock | View |
 | GT3140AN#C19267461XBLW · DIP-8 | XBLW | DIP-8 | 6,728 | ₹61.39 · 6,728 in stock | View |
