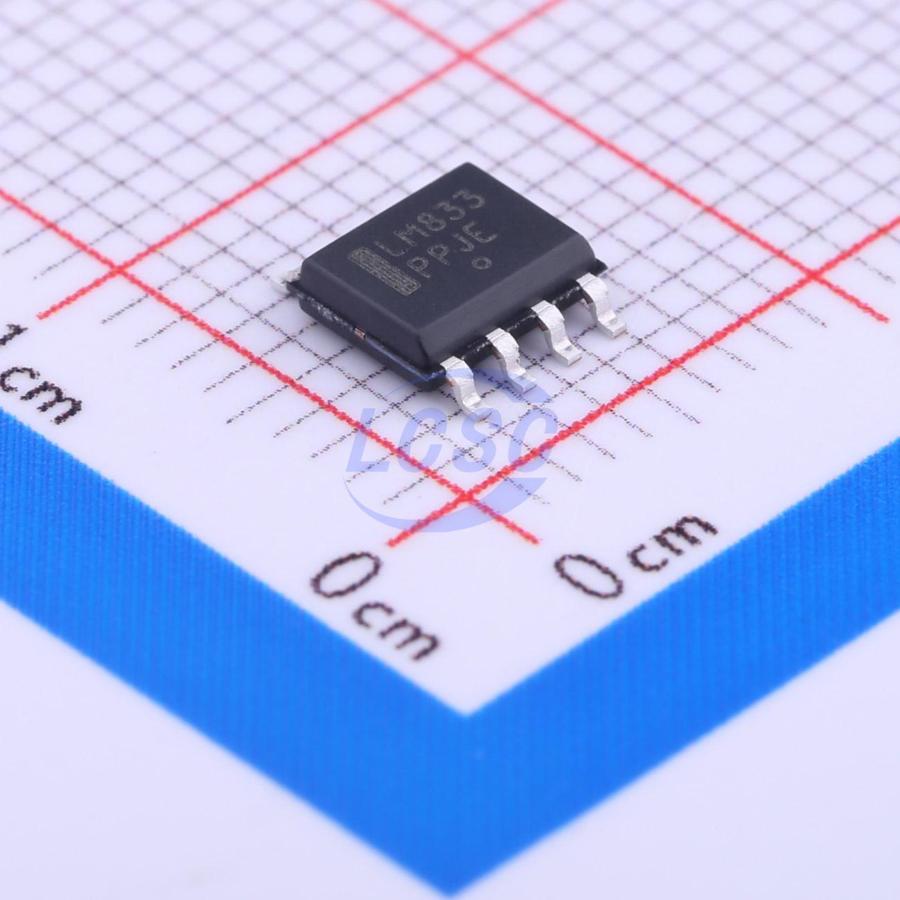

LM833DR2G
4mA 2-Channel SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low Noise, Audio Dual Operational Amplifier
- Manufacturer
- onsemi
- Manufacturer part #
- LM833DR2G
- Store part #
- C7969
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,03,190 in stock
#C7969
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.05 | ₹155.25 |
| 50+ | ₹25.14 | ₹1,257.00 |
| 150+ | ₹22.60 | ₹3,390.00 |
| 500+ | ₹19.43 | ₹9,715.00 |
| 2,500+ | ₹16.10 | ₹40,250.00 |
| 5,000+ | ₹15.25 | ₹76,250.00 |
5 × ₹31.05
₹155.25
excl. GST
₹183.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM833DR2G
₹155.25 for 5 + GST
Specifications
- Quiescent Current
- 4mA
- Total Harmonic Distortion + Noise (THD+N)
- 0.002%
- Features
- ESD protection
- Speaker Channels
- 2-Channel
- Operating Temperature
- -40℃~+85℃
- Power Supply Rejection Ratio (PSRR)
- 115dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The LM833 is a standard low−cost monolithic dual general−purpose operational amplifier employing Bipolar technology with innovative high−performance concepts for audio systems applications. With high frequency PNP transistors, the LM833 offers low voltage noise (4.5 nV/√Hz), 15 MHz gain bandwidth product, 7.0 V/μs slew rate, 0.3 mV input offset voltage with 2.0 μV/°C temperature coefficient of input offset voltage. The LM833 output stage exhibits no dead−band crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.
Key features
- Low Voltage Noise: 4.5 nV/√Hz
- High Gain Bandwidth Product: 15 MHz
- High Slew Rate: 7.0 V/μs
- Low Input Offset Voltage: 0.3 mV
- Low T.C. of Input Offset Voltage: 2.0 μV/°C
- Low Distortion: 0.002%
- Excellent Frequency Stability
- Dual Supply Operation
- NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM833MX/NOPB#C473907TI · SOIC-8 | TI | SOIC-8 | 995 | ₹65.70 · 995 in stock | View |
