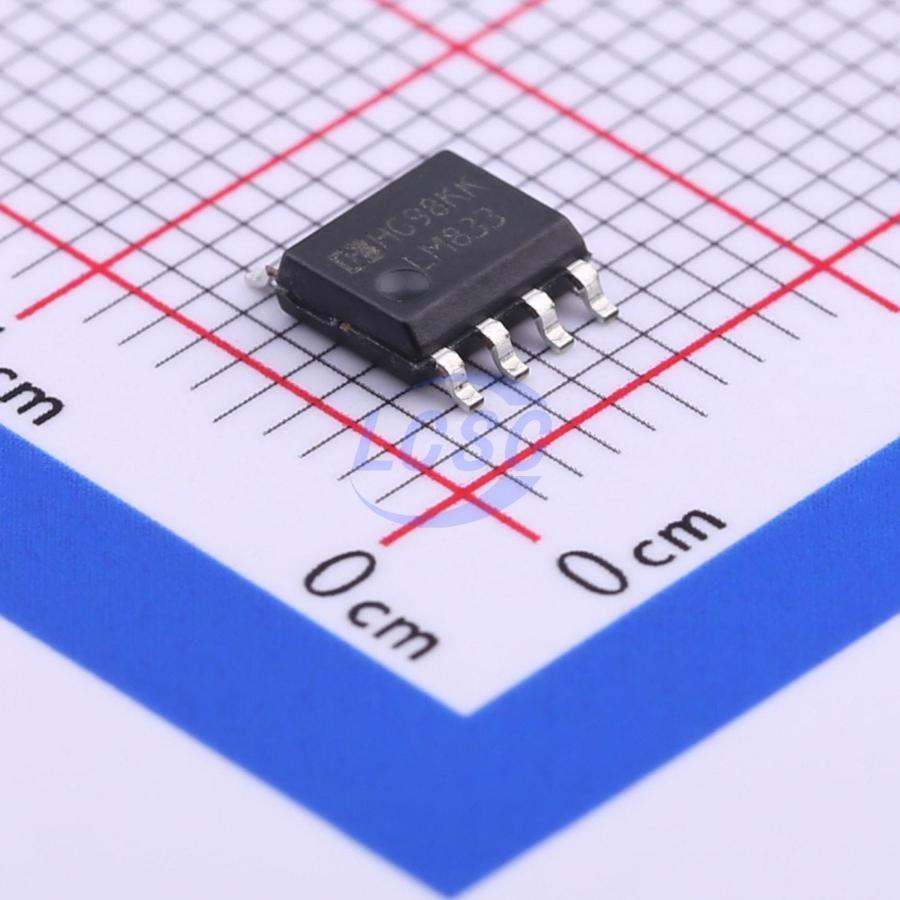

LM833M/TR
2 300uV 7V/us 100dB 300nA 15MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Low Noise, Audio Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM833M/TR
- Store part #
- C434490
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C434490
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.75 | ₹88.75 |
| 50+ | ₹14.12 | ₹706.00 |
| 150+ | ₹12.29 | ₹1,843.50 |
| 500+ | ₹10.93 | ₹5,465.00 |
| 2,500+ | ₹9.47 | ₹23,675.00 |
| 5,000+ | ₹8.93 | ₹44,650.00 |
5 × ₹17.75
₹88.75
excl. GST
₹104.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM833M/TR
₹88.75 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 15MHz
- Input Voltage Noise Density
- 4.5nV/√Hz@1kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.222 g
Overview
LM833 is a standard low-cost monolithic dual general-purpose op-amp based on bipolar technology with innovative high-performance design concepts, optimized for audio system applications. Leveraging high-frequency PNP transistors, the LM833 delivers low voltage noise (4.5 nV/√Hz), 15 MHz gain-bandwidth product, 7.0 V/μs slew rate, 0.3 mV input offset voltage, and 2.0 μV/°C input offset voltage temperature coefficient. The LM833 output stage features no crossover distortion deadband, large output voltage swing, excellent phase margin and gain margin, low open-loop high-frequency output impedance, and symmetrical source/sink AC frequency response. The LM833 operates over an automotive-grade temperature range and is available in plastic DIP8, SOP8, and MSOP8 packages (M and N suffixes).
Key features
- Low voltage noise: 4.5 nV/√Hz
- High gain bandwidth product: 15 MHz
- High slew rate: 7.0 V/μs
- Low input offset voltage: 0.3 mV
- Low input offset voltage temperature coefficient: 2.0 μV/°C
- Low distortion: 0.002%
- Excellent frequency stability
- Dual supply operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGV8052M/TR#C3007931HGSEMI · SOP-8 | HGSEMI | SOP-8 | 504 | ₹65.91 · 504 in stock | View |
 | TSV772M/TR-HG#C54800094HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,495 | ₹71.63 · 2,495 in stock | View |
 | MCP622M/TR-HG#C54800092HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,475 | ₹66.51 · 2,475 in stock | View |
 | TSV7722M/TR-HG#C54800093HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,470 | ₹74.18 · 2,470 in stock | View |
 | OPA2322M/TR-HG#C54814879HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,424 | ₹66.51 · 2,424 in stock | View |
