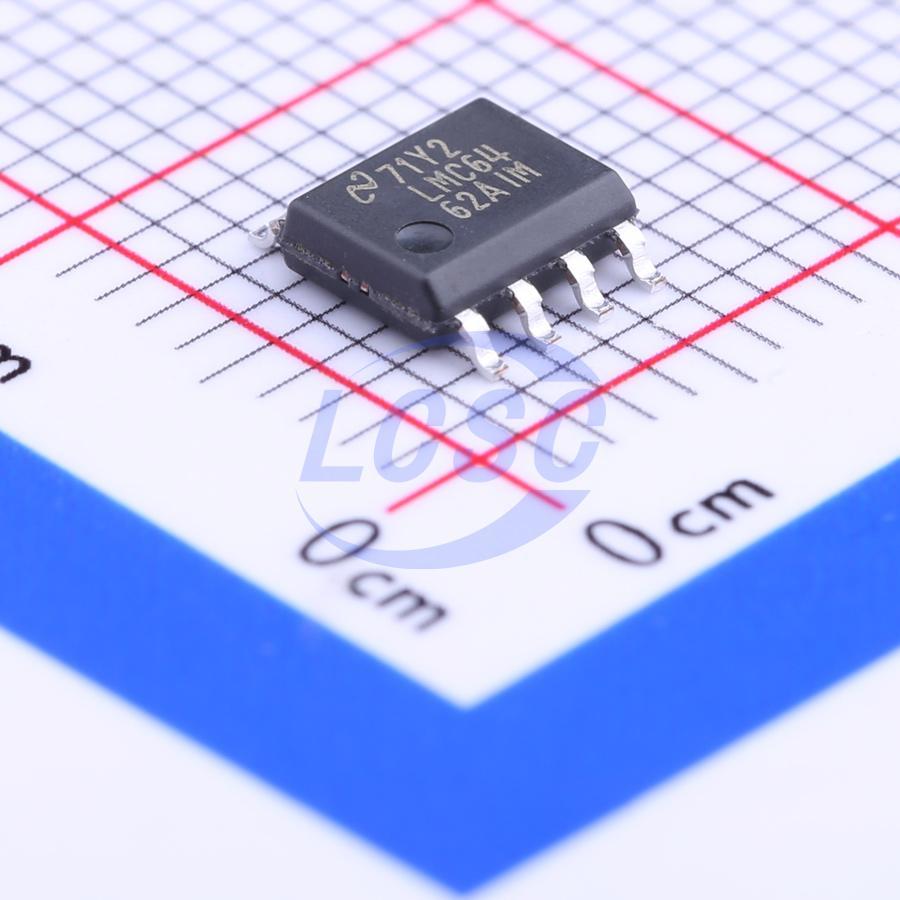

LMC6462AIMX/NOPB

19mA 2 250uV 28V/ms 85dB 150nA 55uA 50kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Dual/Quad Micropower, Rail-to-Rail Input and Output CMOS Operational Amplifier

Manufacturer: TI
Manufacturer part #: LMC6462AIMX/NOPB
Store part #: C90105
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,167 in stock

#C90105

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹231.35	₹231.35
10+	₹198.61	₹1,986.10
30+	₹178.22	₹5,346.60
100+	₹157.20	₹15,720.00
500+	₹147.87	₹73,935.00
1,000+	₹143.76	₹1,43,760.00

Quantity (min 1)

1 × ₹231.35

₹231.35

excl. GST

₹272.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMC6462AIMX/NOPB

₹231.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 19mA
Number of Channels: 2
Vos - Input Offset Voltage: 250uV
Slew Rate: 28V/ms
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 150nA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 55uA
Gain Bandwidth Product: 50kHz
Input Voltage Noise Density: 130nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3V~15.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The LMC6462/4 is a micropower version of the popular LMC6482/4, combining Rail-to-Rail Input and Output Range with very low power consumption. The LMC6462/4 provides an input common-mode voltage range that exceeds both rails. The rail-to-rail output swing of the amplifier, ensured for loads down to 25 KΩ, assures maximum dynamic signal range. This rail-to-rail performance of the amplifier, combined with its high voltage gain makes it unique among rail-to-rail amplifiers. The LMC6462/4 is an excellent upgrade for circuits using limited commonmode range amplifiers. The LMC6462/4, with ensured specifications at 3V and 5V, is especially well-suited for low voltage applications. A quiescent power consumption of 60 μw per amplifier (at VS = 3V) can extend the useful life of battery operated systems. The amplifier's 150 fA input current, low offset voltage of 0.25 mv, and 85 dB CMRR maintain accuracy in battery-powered systems.

Applications

Battery Operated Circuits
Transducer Interface Circuits
Portable Communication Devices
Medical Applications
Battery Monitoring

Key features

Ultra Low Supply Current 20 μA/Amplifier
Ensured Characteristics at 3V and 5V
Rail-to-Rail Input Common-Mode Voltage Range
Rail-to-Rail Output Swing (within 10 mv of rail, VS = 5V and RL = 25 kΩ)
Low Input Current 150 fA
Low Input Offset Voltage 0.25 mv
