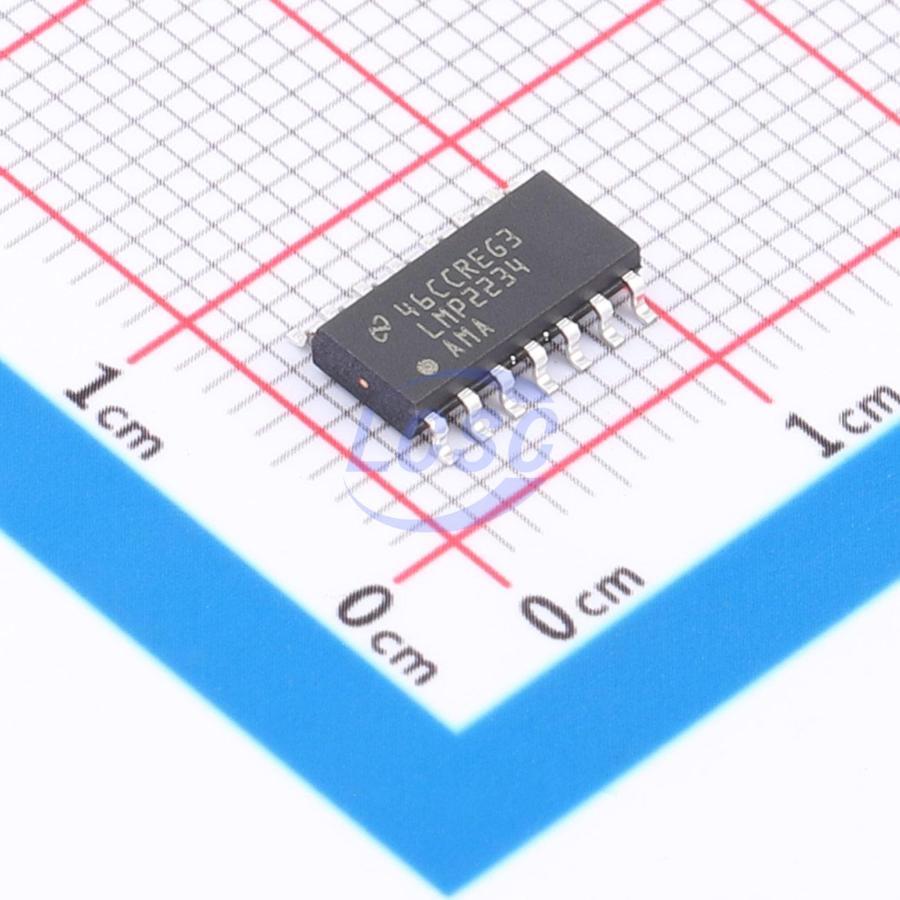

LMP2234AMAX/NOPB

30mA 4 10uV 58V/ms 97dB 0.02pA 36uA 130kHz Rail-to-rail output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Quad Micropower, 1.6V, Precision, Operational Amplifier with CMOS Input

Manufacturer: TI
Manufacturer part #: LMP2234AMAX/NOPB
Store part #: C2060743
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,100 in stock

#C2060743

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹577.74	₹577.74
10+	₹508.65	₹5,086.50
30+	₹473.24	₹14,197.20
100+	₹426.09	₹42,609.00
500+	₹408.93	₹2,04,465.00
1,000+	₹401.76	₹4,01,760.00

Quantity (min 1)

1 × ₹577.74

₹577.74

excl. GST

₹681.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMP2234AMAX/NOPB

₹577.74 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 10uV
Slew Rate: 58V/ms
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 0.02pA
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 36uA
Gain Bandwidth Product: 130kHz
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 1.6V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g

Overview

The LMP2234 is a quad micropower precision amplifier designed for battery powered applications. The 1.6 to 5.5V operating supply voltage range and quiescent power consumption of only 50 μW extend the battery life in portable systems. The high impedance CMOS input makes it ideal for instrumentation and other sensor interface applications. The LMP2234 has a maximum offset voltage of 150 μV and 0.3 μV/°C offset drift along with low bias current of only ±20 fA. These precise specifications make the LMP2234 a great choice for maintaining system accuracy and long term stability. The LMP2234 has a rail-to-rail output that swings 15 mV from the supply voltage, which increases system dynamic range. The common mode input voltage range extends 200 mV below the negative supply, thus the LMP2234 is ideal for ground sensing in single supply applications. The LMP2234 is offered in 14-Pin SOIC and TSSOP packages.

Applications

Precision Instrumentation Amplifiers
Battery Powered Medical Instrumentation
High Impedance Sensors
Strain Gauge Bridge Amplifier
Thermocouple Amplifiers

Key features

Supply Current at 1.8V: 31 μA
Operating Voltage Range: 1.6V to 5.5V
Low TC Vos: ±0.75 μV/°C (max)
Vos: ±150 μV (max)
Input Bias Current: ±20 fA
PSRR: 120 dB
CMRR: 97 dB
Open Loop Gain: 120 dB
Gain Bandwidth Product: 130 kHz
Slew Rate: 58 V/ms
Input Voltage Noise, f = 1 kHz: 60 nV/√Hz
Temperature Range: -40°C to 125°C
