XBLW

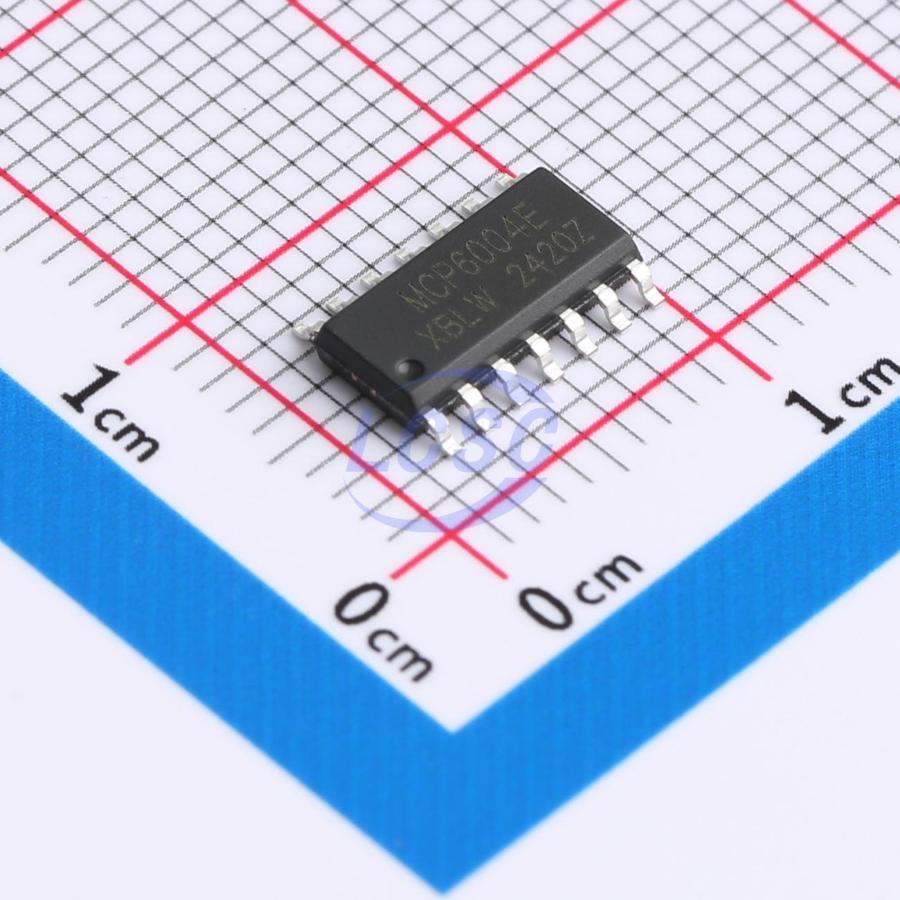

MCP6004T-E/SL(XBLW)

40mA 4 4.5mV 800V/ms 1pA 90dB 80uA 1MHz Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: XBLW
Manufacturer part #: MCP6004T-E/SL(XBLW)
Store part #: C41369520
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,070 in stock

#C41369520

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.43	₹132.15
50+	₹20.96	₹1,048.00
150+	₹18.61	₹2,791.50
500+	₹15.69	₹7,845.00
3,000+	₹14.38	₹43,140.00
6,000+	₹13.60	₹81,600.00

Quantity (min 5, multiples of 5)

5 × ₹26.43

₹132.15

excl. GST

₹155.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP6004T-E/SL(XBLW)

₹132.15 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2.3uV/℃
Quiescent Current: 80uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -3V~-900mV;900mV~3V
Rail to Rail: Rail-to-rail output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.245 g

Overview

The XBLW MCP6001(single), XBLW MCP6002(dual) and XBLW MCP6004(quad) are general purpose, low offset, high frequency response and micro power operational amplifiers. With an excellent bandwidth of 1MHz, a slew rate of 0.8V/μs, and a quiescent current of 80μA per amplifier at 5V, the XBLW MCP6001/6002/6004 family can be designed into a wide range of applications. The XBLW MCP6001/6002/6004 op-amps are designed to provide optimal performance in low voltage and low power systems. The input common-mode voltage range includes ground, and the maximum input offset voltage are... 4.5mV. These parts provide rail-to-rail output swing into heavy loads. The XBLW MCP6001/6002/6004 family is specified for single or dual power supplies of +1.8V to +6.0V. The XBLW MCP6001 is available in 5-lead SOT-23 and SC70-5 package. The XBLW MCP6002 is available in 8 -lead SOP-8 and MSOP-8 package. The XBLW MCP6004 is available in 14-lead SOP and TssoP package.

Applications

Active Filters
Audio Outputs
Sensor Interfaces
Medical Instrumentation
Battery-Powered Instrumentation
Smoke/Gas/Environment Sensors
Battery and Power Supply Control
Portable Equipment and Mobile Devices

Key features

General Purpose 1MHz Amplifiers, Low Cost
High Slew Rate: 0.8V/μs
Low Offset Voltage: 4.5mV Maximum
Low Power: 80μA per Amplifier Supply Current
Settling Time to 0.1% with 2V Step: 4.2 μs
Unit Gain Stable
Rail-to-Rail Input and Output
Input Voltage Range: -0.1V to +5.1V at 5V Supply
Operating Power Supply: +1.8V to +6V
Operating Temperature Range: -40°C to +125°C
ESD Rating: HBM-4kV, CDM-2kV
