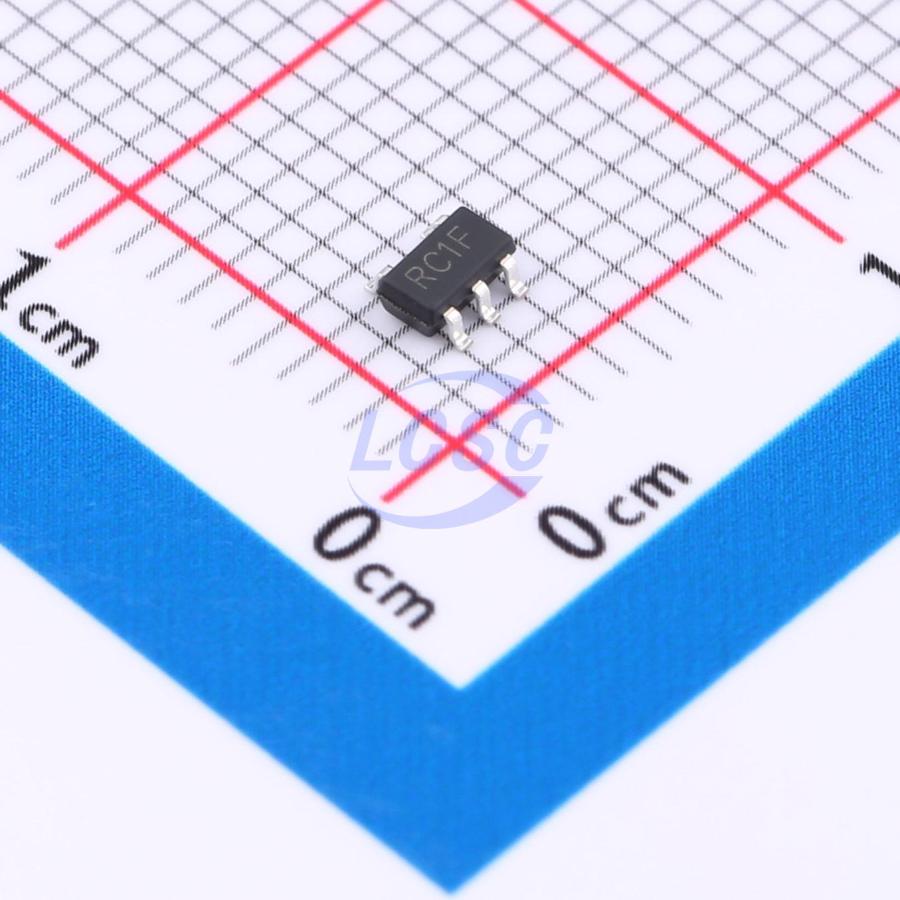

LMV321

23mA 1 5mV 520V/ms 10pA 70dB 60uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Low-Power rail-to-rail Operational Amplifier

Manufacturer: DOWO
Manufacturer part #: LMV321
Store part #: C6718421
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,720 in stock

#C6718421

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹5.40	₹54.00
100+	₹4.25	₹425.00
300+	₹3.68	₹1,104.00
3,000+	₹3.32	₹9,960.00
6,000+	₹2.98	₹17,880.00
9,000+	₹2.80	₹25,200.00

Quantity (min 10, multiples of 10)

10 × ₹5.40

₹54.00

excl. GST

₹63.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321

₹54.00 for 10 + GST

Specifications

Output Current: 23mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

LMV321 (single channel) is a rail-to-rail input, output voltage feedback, low power consumption operational amplifier. It has wide input common mode voltage and output swing. The minimum working voltage can be up to 2.1V, and the maximum working voltage is recommended to be 5.5V. Used as power amplifier in all kinds of pocket or portable stereo radio recorders.
