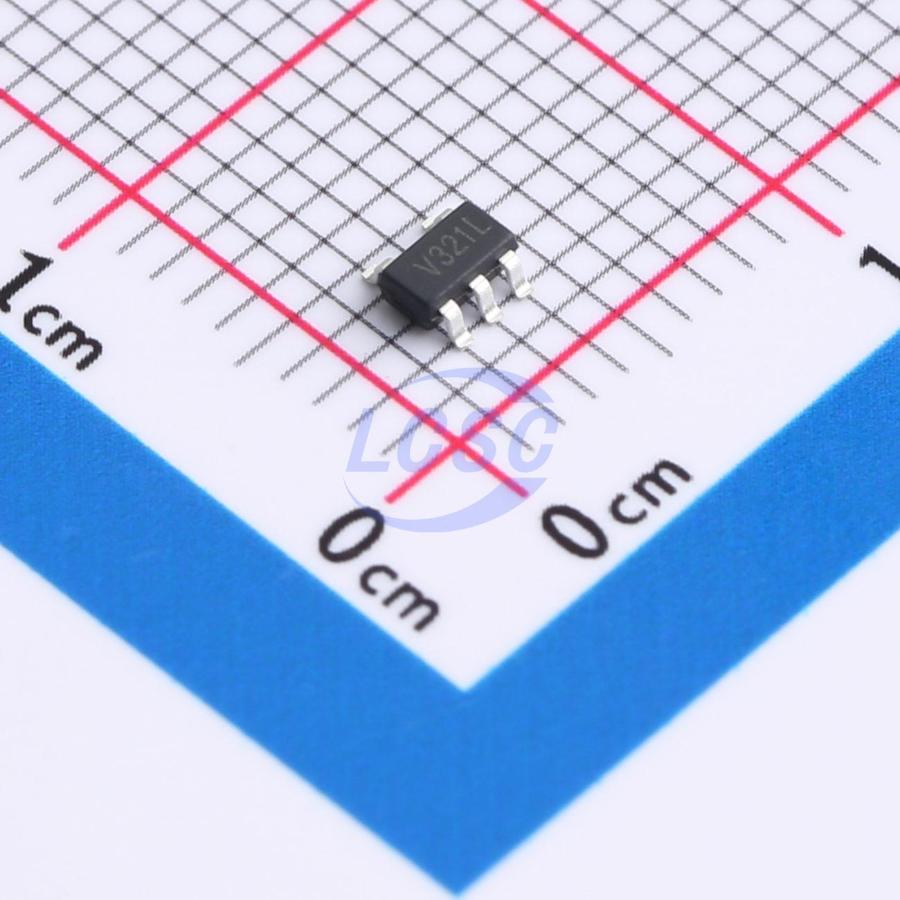

LMV321-L
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5ROHS CompliantActive
Operational Amplifier
- Manufacturer
- PIELENST
- Manufacturer part #
- LMV321-L
- Store part #
- C41376497
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,810 in stock
#C41376497
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.98 | ₹59.80 |
| 100+ | ₹4.74 | ₹474.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 1,000+ | ₹3.64 | ₹3,640.00 |
| 5,000+ | ₹3.25 | ₹16,250.00 |
| 10,000+ | ₹3.07 | ₹30,700.00 |
10 × ₹5.98
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321-L
₹59.80 for 10 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 520V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1.1MHz
- Quiescent Current
- 45uA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
Applications
- ASIC input and output op-amps
- Sensor interface, piezoelectric sensor amplifiers
- Medical devices
- Audio output
- Mobile communications, DSP interface
- Portable systems, battery-powered equipment
- Smoke detectors, laptops, PCMCIA cards
Key features
- Low power consumption: 45μA
- Rail-to-rail input/output
- Low output offset voltage: typical 0.8mV
- Unity-gain stable
- Gain bandwidth product 1.1MHz
- Low input bias current: 10pA level
- Operating voltage: 2.1V ~ 5.5V
- Wide input voltage range: -0.1V ~ 5.6V (VS = 5.5V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV321IDBVR-L#C41376496PIELENST · SOT-23-5 | PIELENST | SOT-23-5 | 2,080 | ₹6.56 · 2,080 in stock | View |
