PIELENST

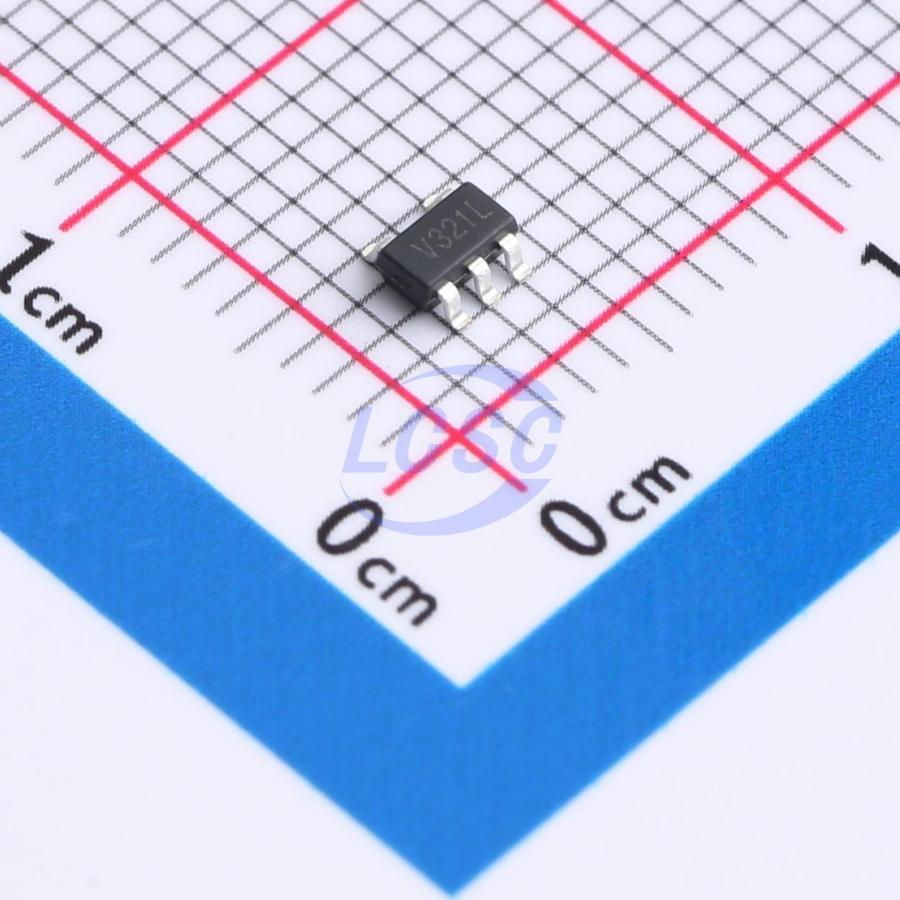

LMV321IDBVR-L

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS CompliantActive

IC OPAMP GP 1 CIRCUIT SOT-23-5

Manufacturer: PIELENST
Manufacturer part #: LMV321IDBVR-L
Store part #: C41376496
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,080 in stock

#C41376496

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
10+	₹6.58	₹65.80
100+	₹5.23	₹523.00
300+	₹4.54	₹1,362.00
1,000+	₹4.04	₹4,040.00
5,000+	₹3.63	₹18,150.00
10,000+	₹3.43	₹34,300.00

Quantity (min 10, multiples of 10)

10 × ₹6.58

₹65.80

excl. GST

₹77.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDBVR-L

₹65.80 for 10 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 62dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1.1MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

Applications

ASIC input and output op-amps
Sensor interfaces, piezoelectric sensor amplifiers
Medical devices
Audio output
Mobile communications, DSP interfaces
Portable systems, battery-powered equipment
Smoke detectors, laptops, PCMCIA cards

Key features

Low power consumption: 45μA
Rail-to-rail input/output
Low output offset voltage: typical 0.8mV
Unity-gain stable
Gain-bandwidth product 1.1MHz
Low input bias current: 10pA level
Operating voltage: 2.1V ~ 5.5V
Wide input voltage range: -0.1V ~ 5.6V (VS = 5.5V)

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	LMV321-L#C41376497PIELENST · SOT-23-5	PIELENST	SOT-23-5	1,810	₹5.98 · 1,810 in stock	View
