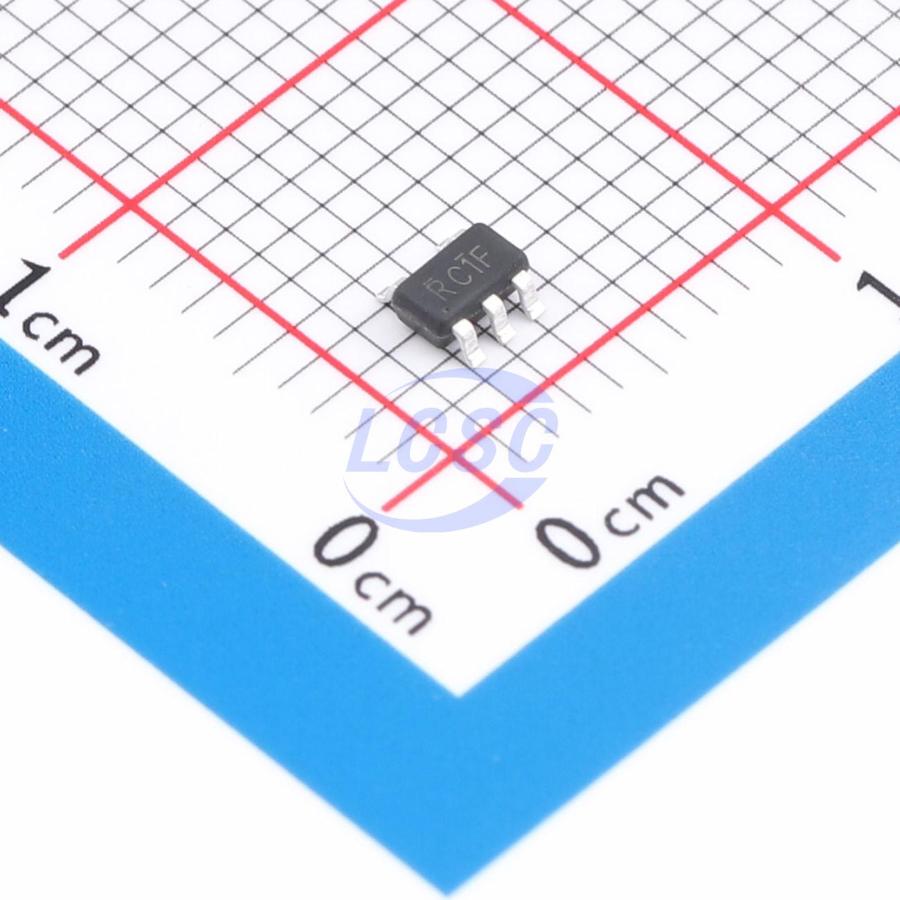

LMV321IDBVR-JSM
Standard (General Purpose) Amplifier 1 Circuit SOT-23-5
SOT-23-5ROHS CompliantActive
Low-power single operational amplifier
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LMV321IDBVR-JSM
- Store part #
- C18195227
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,850 in stock
#C18195227
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.23 | ₹62.30 |
| 100+ | ₹4.97 | ₹497.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.96 | ₹11,880.00 |
| 6,000+ | ₹3.59 | ₹21,540.00 |
| 9,000+ | ₹3.40 | ₹30,600.00 |
10 × ₹6.23
₹62.30
excl. GST
₹73.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321IDBVR-JSM
₹62.30 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 400V/ms
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.127 g
Overview
The LMV321 offers both performance and cost efficiency for low-power systems. It features a high unity-gain bandwidth and a specified slew rate of 0.4V/μs, with a quiescent current of only 430μA/amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LMV321 is available in a SOT-23 package. Overall, the LMV321 is a low-power, wide supply range op-amp that can be designed into a variety of applications at an economical price without sacrificing valuable board space.
Applications
- Charger
- Power adapter
- Sensor interface
- Piezoelectric sensor amplifier
- Medical instruments
- Audio output
- Mobile communication portable systems
Key features
- Gain-bandwidth product: 1MHz
- Low supply current: 430μA
- Low input bias current: 45nA
- Wide supply voltage range: +3V to 5.5V
- Unity-gain stable with high capacitive loads
