MSKSEMI

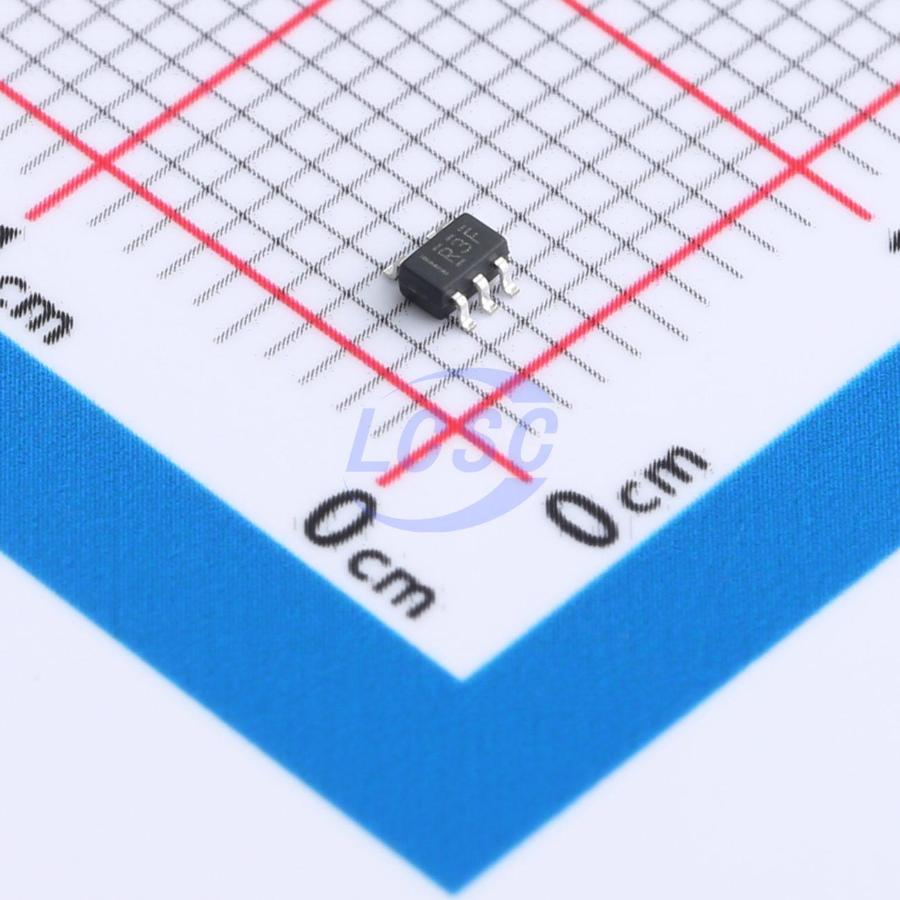

LMV321IDCKR-MS

60mA 1 1.7mV 1V/us 65dB 11nA 130uA 1MHz Rail-to-rail output SC70-5 Instrumentation, Op Amps, Buffer Amps

SC70-5RoHSActive

Single low-voltage rail-to-rail output operational amplifier

Manufacturer: MSKSEMI
Manufacturer part #: LMV321IDCKR-MS
Store part #: C7434178
Package / case: SC70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,710 in stock

#C7434178

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.18	₹91.80
100+	₹7.37	₹737.00
300+	₹6.46	₹1,938.00
3,000+	₹5.76	₹17,280.00
6,000+	₹5.21	₹31,260.00
9,000+	₹4.93	₹44,370.00

Quantity (min 10, multiples of 10)

10 × ₹9.18

₹91.80

excl. GST

₹108.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDCKR-MS

₹91.80 for 10 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 65dB
Ib - Input Bias Current: 11nA
Quiescent Current: 130uA
Gain Bandwidth Product: 1MHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

The LMV321 is single low voltage (2.7V to 5.5V) operational amplifier which has rail-to-rail output swing capability. The input common-mode voltage range includes ground. The chip exhibits excellent speed-power ratio, achieving 1MHz of bandwidth and 1V/μs of slew rate with low supply current. The LMV321 S is built with BiCMOS process. It has bipolar input and output stages for improved noise performance, low input offset and higher output current drive. The LMV321 is available in the package of SC-70-5, which is approximately half the size of SOT-23-5. The small package saves space on pc boards, and enables the design of small portable electronic devices. It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity. The LMV321 is also available in standard SOT-23-5 package.

Applications

Active Filters
Low Power, Low Voltage Applications
General Purpose Portable Devices
Cellular Phone, Cordless Phone Battery-Powered Systems

Key features

Guaranteed 2.7V to 5.5V Performance
No Crossover Distortion
Gain-Bandwidth Product 1MHz
Industrial Temperature Range: -40°C to +85°C
Low Supply Current: 130μA
Rail-to-Rail Output Swing under 10kΩ Load:
VOH up to VCC - 10mV
VOL near to VEE + 65mV
VCM: -0.1V to VCC - 0.8V
