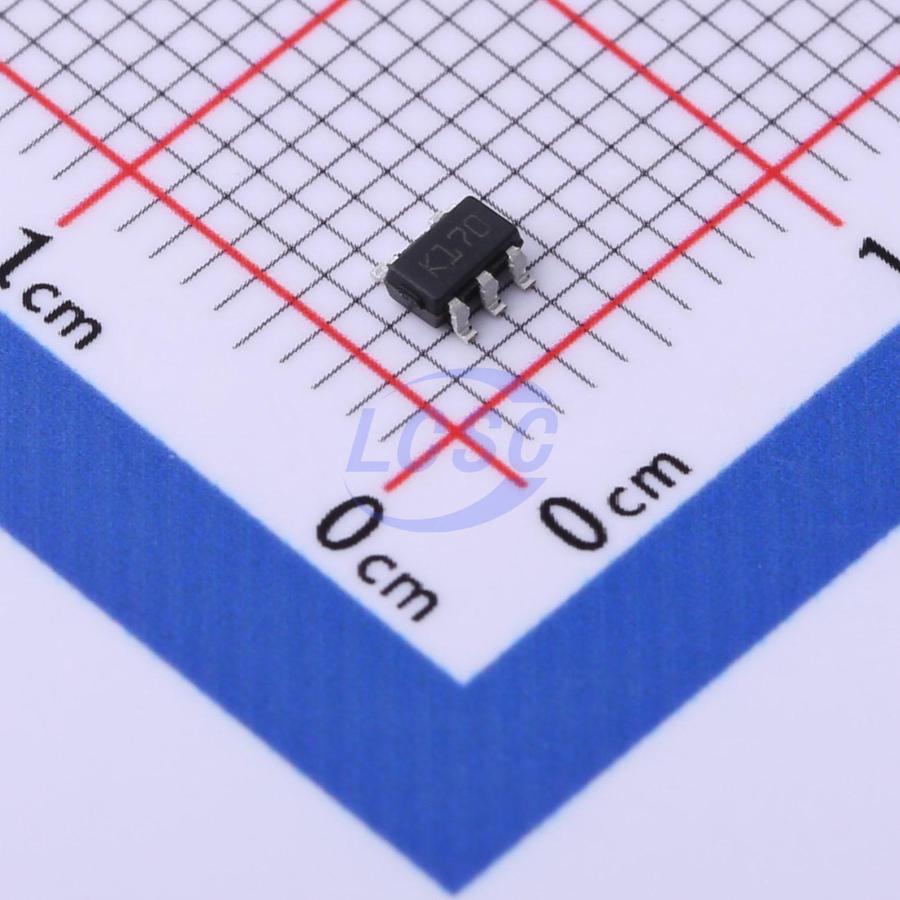

LMV321LILT
70mA 1 7mV 600V/ms 75dB 27nA 120uA 1.3MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Low-power general-purpose operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- LMV321LILT
- Store part #
- C2057271
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,580 in stock
#C2057271
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.36 | ₹111.80 |
| 50+ | ₹17.78 | ₹889.00 |
| 150+ | ₹15.82 | ₹2,373.00 |
| 500+ | ₹13.38 | ₹6,690.00 |
| 3,000+ | ₹12.28 | ₹36,840.00 |
| 6,000+ | ₹11.63 | ₹69,780.00 |
5 × ₹22.36
₹111.80
excl. GST
₹131.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321LILT
₹111.80 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 30nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 27nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 120uA
- Gain Bandwidth Product
- 1.3MHz
- Input Voltage Noise Density
- 31nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The LMV321L, LMV358L, and LMV324L are single, dual, and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages (2.7 V to 5 V) with enhanced performances compared to the industry standard LM3xx series. The LMV321L, LMV358L, and LMV324L are offered in tiny packages, allowing the devices to be used in small portable electronic applications and to be placed closer to the actual signal. The LMV321L, LMV358L, and LMV324L are complete cost-effective solutions for application designs where cost is of primary importance.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
- Active filtering
- Medical instrumentation
Key features
- Low-power consumption: 250 μA max at 5 V
- Low offset voltage: 7 mV max at 25 °C
- Industrial temperature range: -40 °C to +125 °C
- Low supply voltage: 2.7 - 5.5 V
- Gain bandwidth product: 1.3 MHz
- Tiny packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV321ILT#C20617293TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,390 | ₹15.48 · 2,390 in stock | View |
 | HX321-ST#C42431689ZHHXDZ · SOT-23-5 | ZHHXDZ | SOT-23-5 | 2,480 | ₹7.79 · 2,480 in stock | View |
 | XBLV321DTR#C53436504XBLW · SOT-23-5L | XBLW | SOT-23-5L | 75,560 | ₹5.07 · 75,560 in stock | View |
 | LMV821ILT#C2059190ST · SOT-23-5 | ST | SOT-23-5 | 113 | ₹192.27 · 113 in stock | View |
 | LMV821M5X/NOPB#C2060905TI · SOT-23-5 | TI | SOT-23-5 | 6,389 | ₹108.19 · 6,389 in stock | View |
