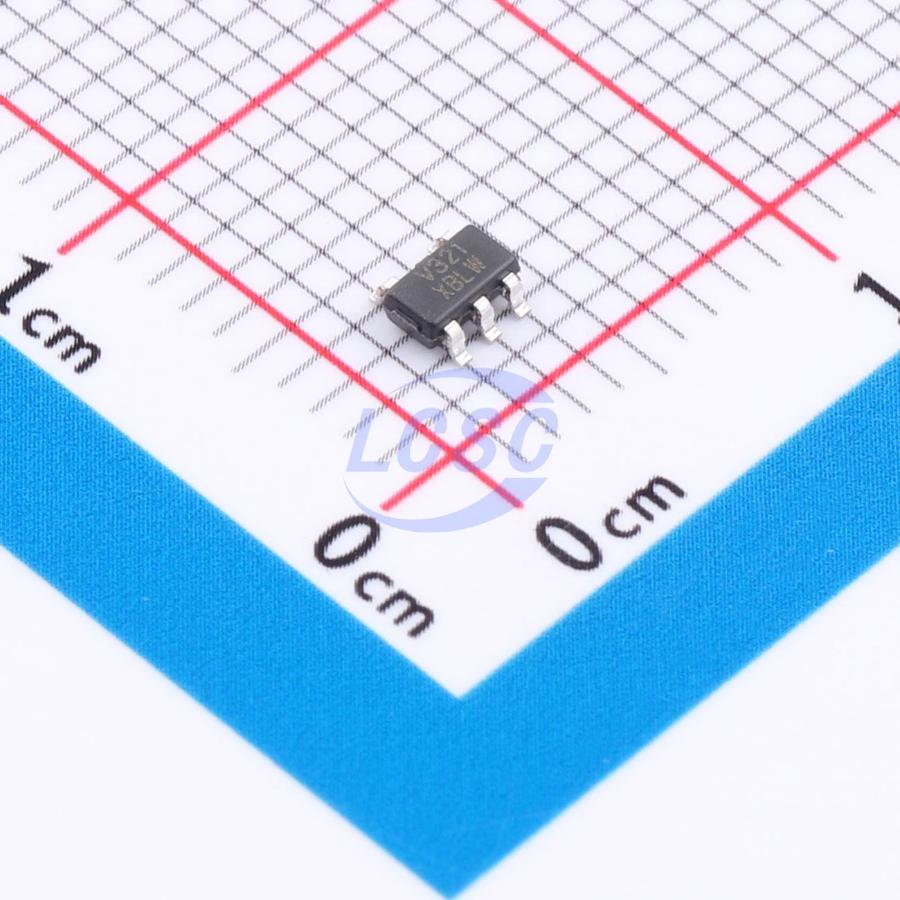

XBLV321DTR

60mA 1 800uV 600V/ms 90dB 10pA 40uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5LROHS CompliantActive

Precision op-amp with single-channel low-voltage rail-to-rail input/output

Manufacturer: XBLW
Manufacturer part #: XBLV321DTR
Store part #: C53436504
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

75,560 in stock

#C53436504

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.07	₹101.40
200+	₹4.04	₹808.00
600+	₹3.51	₹2,106.00
3,000+	₹3.12	₹9,360.00
9,000+	₹2.80	₹25,200.00
21,000+	₹2.65	₹55,650.00

Quantity (min 20, multiples of 20)

20 × ₹5.07

₹101.40

excl. GST

₹119.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XBLV321DTR

₹101.40 for 20 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 10pA
Quiescent Current: 40uA
Gain Bandwidth Product: 1.5MHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.043 g

Overview

XBLV321 (single op-amp) is a low-cost voltage feedback amplifier. These devices operate from a 2.1V to 5.5V single supply, consuming only 65μA quiescent current per amplifier. They feature rail-to-rail input with a wide common-mode input voltage range and rail-to-rail output voltage swing. These characteristics make the XBLV321 well suited for buffering ASICs. The XBLV321 offers a gain-bandwidth product of 1.5MHz and an ultralow input bias current of only 10pA. They are ideal for piezoelectric sensors, integrators, and photodiode amplifiers. The XBLV321 is suitable for a wide range of applications, including portable systems, security monitoring, battery-powered instruments, and portable systems.

Applications

Active filters
Electronic instruments
General-purpose portable equipment
General low-voltage applications

Key features

Ultra-low cost
Supply voltage range: 2.1V to 5.5V
Low supply current: 65μA/amplifier (typical)
Low offset voltage: ±0.8mV (typical)
Unity-gain stable
Gain bandwidth product: 1.5MHz (typical)
Slew rate: 0.6V/μs (typical)
Rail-to-rail input and output
Input voltage range: -0.1V to 5.6V when VS = 5.5V
Operating temperature: -40°C ~ +125°C
SOT23-5 package
