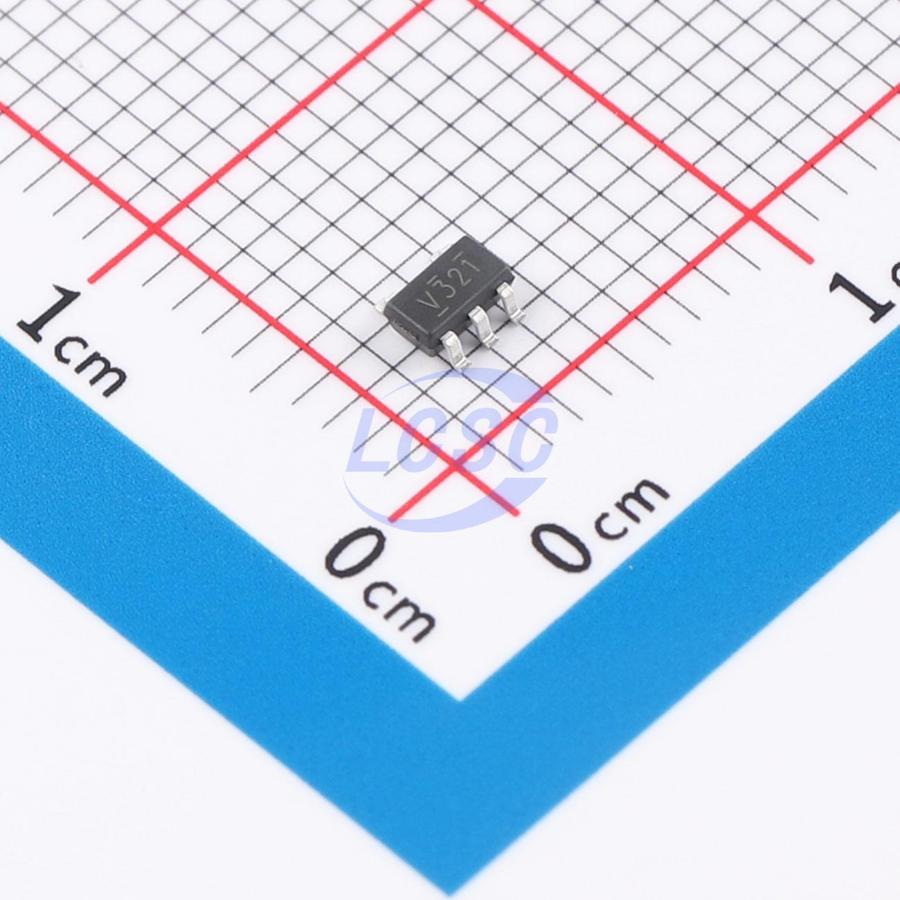

LMV321MF/TR

30mA 1 800uV 700V/ms 70dB 10pA 45uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LMV321MF/TR
Store part #: C51484087
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,410 in stock

#C51484087

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.16	₹71.60
100+	₹5.69	₹569.00
300+	₹4.95	₹1,485.00
3,000+	₹4.41	₹13,230.00
6,000+	₹3.96	₹23,760.00
9,000+	₹3.74	₹33,660.00

Quantity (min 10, multiples of 10)

10 × ₹7.16

₹71.60

excl. GST

₹84.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321MF/TR

₹71.60 for 10 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 700V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1.5MHz
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.028 g

Overview

The LMV321 (single) is a low-power, rail-to-rail input/output, voltage-feedback general-purpose op-amp. It features a wide input common-mode voltage range and output swing; minimum operating voltage down to 2.1V with a maximum recommended operating voltage of 5.5V. The LMV321 achieves a 1.5MHz gain-bandwidth product at 45μA power consumption; its ultra-low input bias current (10pA level) makes it suitable for integrators, photodiode amplifiers, and piezoelectric sensors; the rail-to-rail input/output enables its use as a buffer in single-supply systems. Applications for this op-amp series include portable devices, battery and power supply control, and signal processing and interfacing in low-power sensor systems.

Applications

ASIC input and output op-amps
Sensor interface, piezoelectric sensor amplifiers
Medical devices
Audio output
Mobile communications, DSP interface
Portable systems, battery-powered equipment
Smoke detectors, laptops, PCMCIA cards

Key features

Low power consumption: 45uA
Rail-to-rail input/output
Low output offset voltage: typical 0.8mV
Unity-gain stable
Gain bandwidth product 1.5MHz
Low input bias current: 10pA level
Operating voltage: 2.1V~5.5V
Wide input voltage range: -0.1V~5.6V (VS=5.5V)
