DIODES

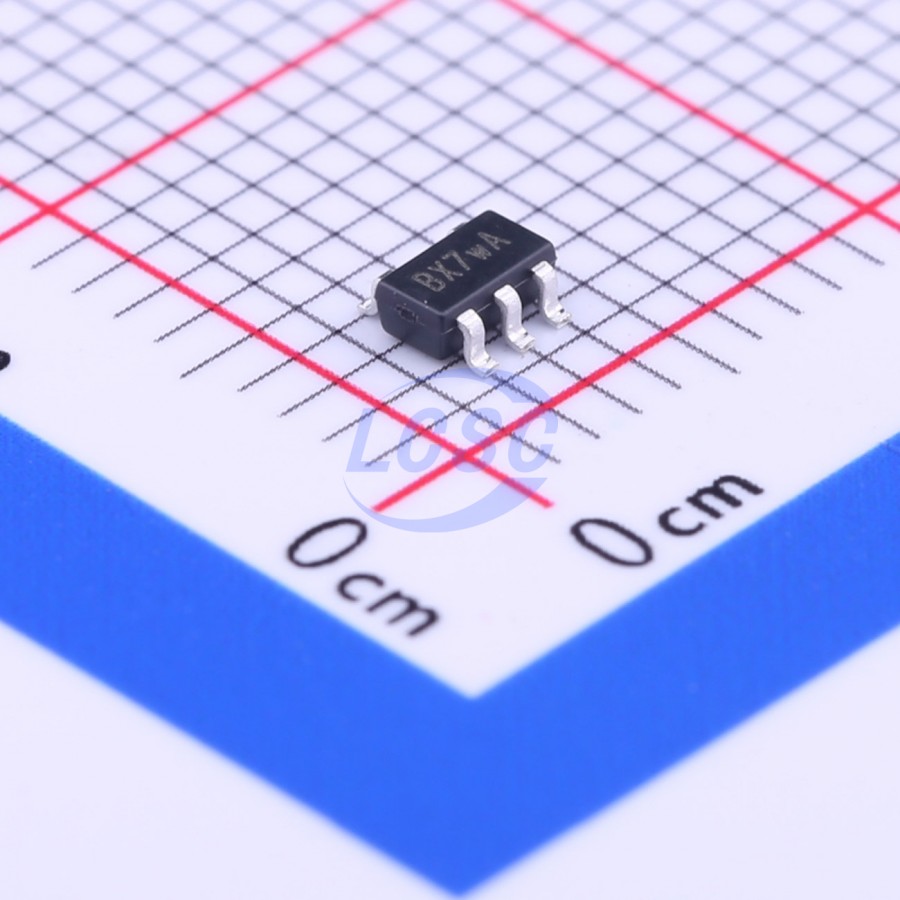

LMV321WG-7

60mA 1 1.7mV 1V/us 63dB 10nA 110uA 1MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

General Purpose, Low Voltage, Rail-to-Rail Output Operational Amplifiers

Manufacturer: DIODES
Manufacturer part #: LMV321WG-7
Store part #: C248311
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,640 in stock

#C248311

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹33.62	₹168.10
50+	₹25.81	₹1,290.50
150+	₹22.46	₹3,369.00
500+	₹18.28	₹9,140.00
3,000+	₹15.39	₹46,170.00
6,000+	₹14.28	₹85,680.00

Quantity (min 5, multiples of 5)

5 × ₹33.62

₹168.10

excl. GST

₹198.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321WG-7

₹168.10 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 50nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 63dB
Ib - Input Bias Current: 10nA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 110uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 23nV/√Hz@50kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The LMV321/LMV358/LMV324 are low voltage (2.7V to 5.5V) single, dual and quad operational amplifiers. The LMV321/LMV358/LMV324 are designed to effectively reduce cost and space at low voltage levels. These devices have the capability of rail-to-rail output swing and input common-mode voltage range includes ground. They can also achieve an efficient speed-to-power ratio, utilizing 1 MHz bandwidth and 1V/µs slew rate at a low supply current. Reducing noise pickup and increasing signal integrity can be achieved by placing the device close to the signal source. The LMV321 is available in 5-Pin SOT353/SOT25 packages that reduce space on PC boards and portable electronic devices. The LMV324 is available in the SO-14 and TSSOP-14 package. The LMV358 is available in the MSOP-8 and SO-8 packages.

Applications

Active Filters
General Purpose Low Voltage Applications
General Purpose Portable Devices

Key features

Guaranteed 2.7V and 5V Performance
Crossover Distortion Eliminated
Operating Temperature Range (-40°C to +125°C)
Gain-bandwidth Product 1 MHz
Low Supply Current - LMV321 110µA Typ - LMV358 190µA Typ - LMV324 340µA Typ
Rail-to-Rail Output Swing @ 10kΩ - V+ - 10mV to V+ + 10mV
Input Common Mode Voltage Range (-0.2 to V+ - 0.8V)
Manufactured in Standard CMOS Process
SOT353, SOT25, MSOP-8, SO-8, SO-14 & TSSOP-14: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
