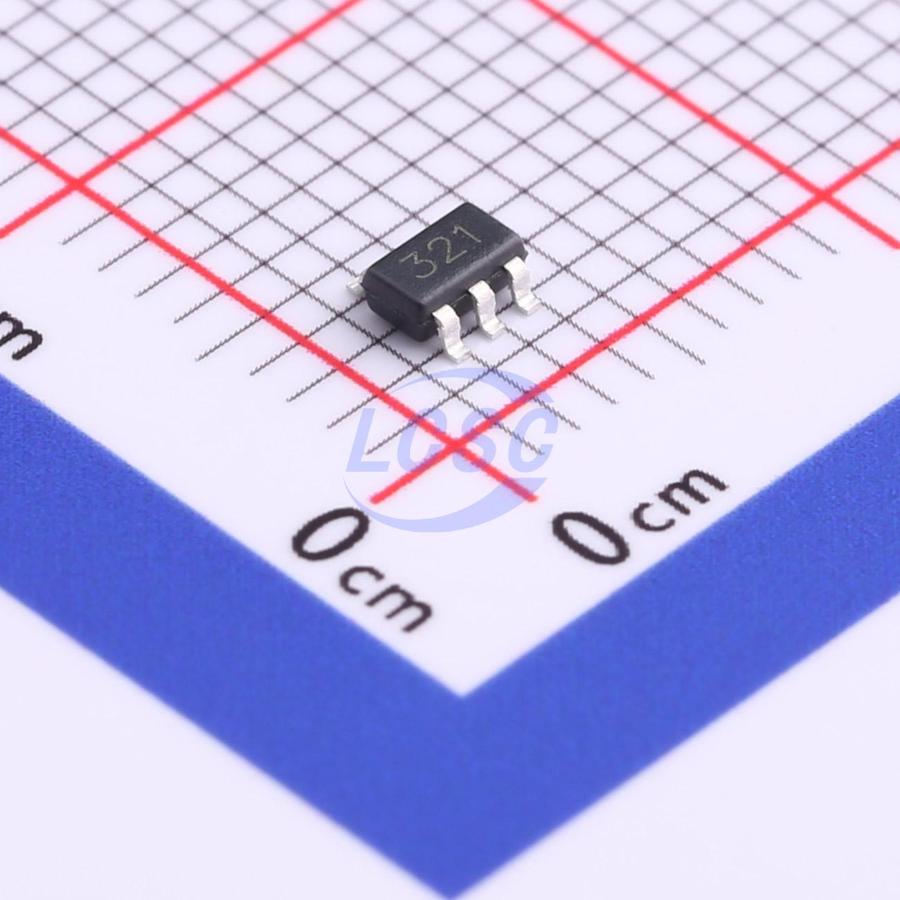

TPV321S5

20mA 1 5mV 600V/ms 10pA 80dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1MHz CMOS Rail-to-Rail IO Opamp With RF Filter

Manufacturer: TECH PUBLIC
Manufacturer part #: TPV321S5
Store part #: C2827685
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,950 in stock

#C2827685

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.24	₹71.20
50+	₹11.31	₹565.50
150+	₹9.86	₹1,479.00
500+	₹8.76	₹4,380.00
3,000+	₹7.26	₹21,780.00
6,000+	₹6.83	₹40,980.00

Quantity (min 5, multiples of 5)

5 × ₹14.24

₹71.20

excl. GST

₹84.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPV321S5

₹71.20 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

TPV321S5(single) TPV358S8/M8(dual) are rail-to-rail CMoS operational amplifiers with ultra low offset. Features include wide input common-mode voltage range and broad output voltage swing with operating supply voltage from 2.2V to 5.5V. Products are fully specified over the extended -40 to +125°C temperature range. TPV321/358 provide 1MHz bandwidth consuming Ultra low current of 40uA per channel. Very low input bias currents of 10 pA enable them ideal for integrators, photodiode amplifiers, and piezoelectric sensors

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Sensor Interface
Medical Instrumentation
Battery-Powered Instruments
Handheld Test Equipment

Key features

Single-Supply Operation from +2.2V ~ +5.5V
Rail-to-Rail Input/ Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 40uA (Typ.)
Operating Temperature: -40°C ~ +125°C
Available in SOT23-5 and SOP8 Packages
