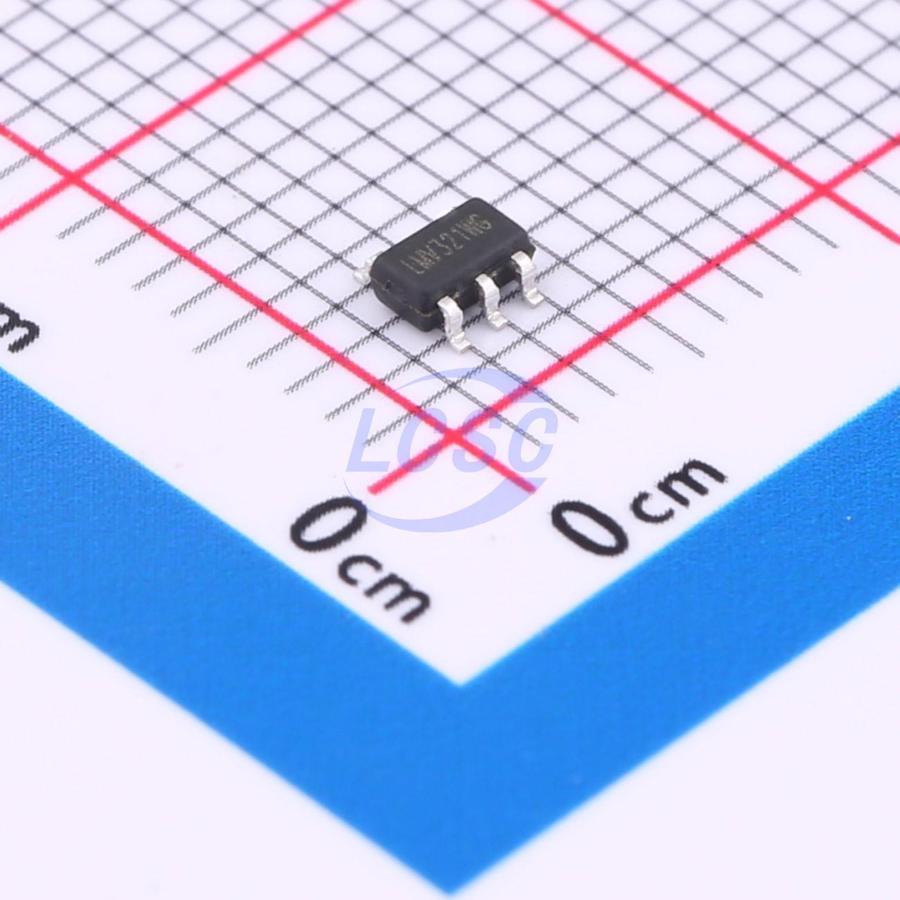

MSKSEMI

LMV321WG-7(MS)

60mA 1 7mV 1V/us 65dB 500nA 130uA 1MHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Single low-voltage operational amplifier with rail-to-rail output swing capability

Manufacturer: MSKSEMI
Manufacturer part #: LMV321WG-7(MS)
Store part #: C19631993
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,265 in stock

#C19631993

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.44	₹57.20
50+	₹9.05	₹452.50
150+	₹7.85	₹1,177.50
500+	₹6.95	₹3,475.00
3,000+	₹6.23	₹18,690.00
6,000+	₹5.87	₹35,220.00

Quantity (min 5, multiples of 5)

5 × ₹11.44

₹57.20

excl. GST

₹67.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321WG-7(MS)

₹57.20 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 65dB
Ib - Input Bias Current: 500nA
Quiescent Current: 130uA
Gain Bandwidth Product: 1MHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The LMV321WG-7(MS) is single low voltage (2.7V to 5.5V) operational amplifier which has rail-to-rail output swing capability. The input common-mode voltage range includes ground. The chip exhibits excellent speed-power ratio, achieving 1MHz of bandwidth and 1V/μs of slew rate with low supply current. The LMV321WG-7(MS) S is built with BiCMOS process. It has bipolar input and output stages for improved noise performance, low input offset and higher output current drive. The LMV321WG-7(MS) is available in the package of SOT-23-5.

Applications

Active Filters
Low Power, Low Voltage Applications
General Purpose Portable Devices
Cellular Phone, Cordless Phone
Battery-Powered Systems

Key features

Guaranteed 2.7V to 5.5V Performance
No Crossover Distortion
Gain-Bandwidth Product 1MHz
Industrial Temperature Range: -40°C to +85°C
Low Supply Current: 130μμ
Rail-to-Rail Output Swing under 10kΩ Load:
VOH up to VCC - 10mV
VOL near to VEE + 65mV
VCM: -0.1V to VCC - 0.8V
