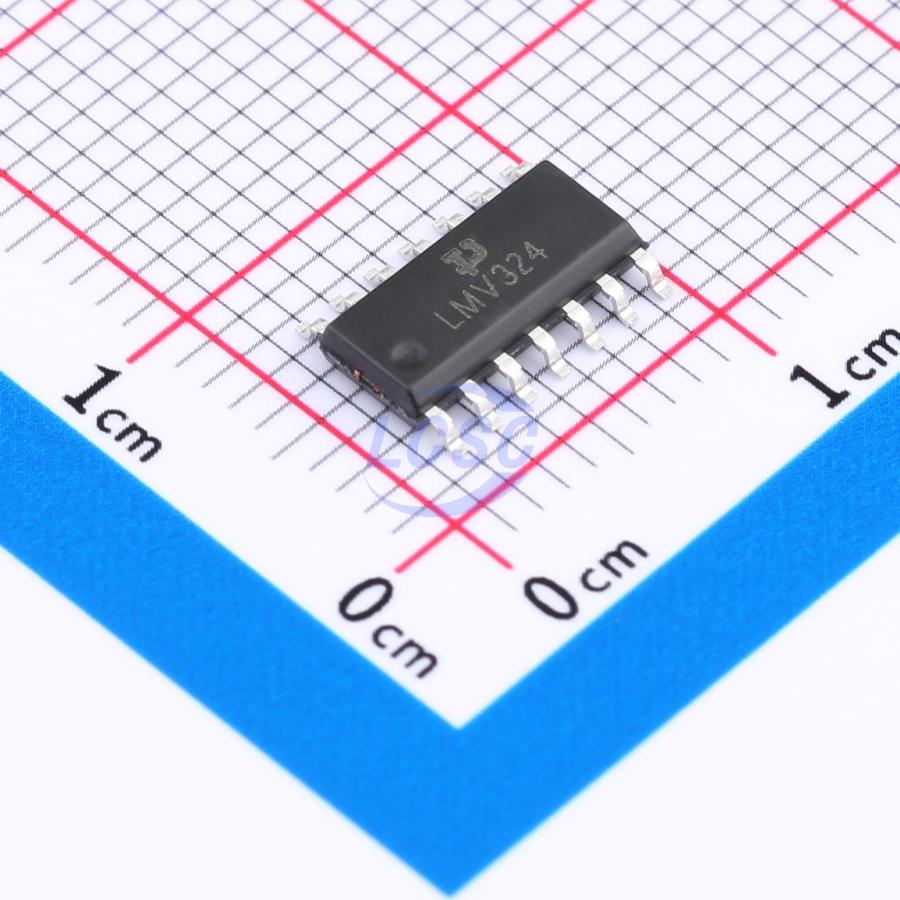

LMV324
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-14
SOP-14RoHSActive
1MHz, Low Power, CMOS, EMI Hardened, Rail to Rail Dual Operational Amplifier
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LMV324
- Store part #
- C5342379
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,335 in stock
#C5342379
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.72 | ₹198.60 |
| 50+ | ₹31.26 | ₹1,563.00 |
| 150+ | ₹27.65 | ₹4,147.50 |
| 500+ | ₹23.13 | ₹11,565.00 |
| 2,500+ | ₹19.98 | ₹49,950.00 |
| 5,000+ | ₹18.77 | ₹93,850.00 |
5 × ₹39.72
₹198.60
excl. GST
₹234.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324
₹198.60 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression;Built-in compensation
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
Applications
- Portable Equipment
- Mobile Communications
- Smoke Detector
- Medical Instrumentation
- Battery-Powered Instruments
- Sensor Interface
- Handheld Test Equipment
Key features
- The LMV324 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.2V to 5.5V.
- The embedded anti-RF filter can significantly increase the RF immunity without extra components.
- Typical low quiescent supply current of 80μA in dual operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications.
- Single-Supply Operation from +2.2V ~ +5.5V
- Rail-to-Rail Input/ Output
- Gain-Bandwidth Product: 1MHz (Typ.)
- Low Input Bias Current: 10pA (Typ.)
- Low Offset Voltage: 5mV (Max.)
- Quiescent Current: 40μμ per Amplifier (Typ.)
- Operating Temperature: -40°C ~ +125°C
- Available in SOP-14
- The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV324IDR#C5342380TECH PUBLIC · SOP-14 | TECH PUBLIC | SOP-14 | 4,955 | ₹18.51 · 4,955 in stock | View |
 | TPV324S14#C5342424TECH PUBLIC · SOP-14 | TECH PUBLIC | SOP-14 | 2,470 | ₹30.76 · 2,470 in stock | View |
 | TPMCP6004T-I/SL#C5342420TECH PUBLIC · SOIC-14 | TECH PUBLIC | SOIC-14 | 915 | ₹50.84 · 915 in stock | View |
