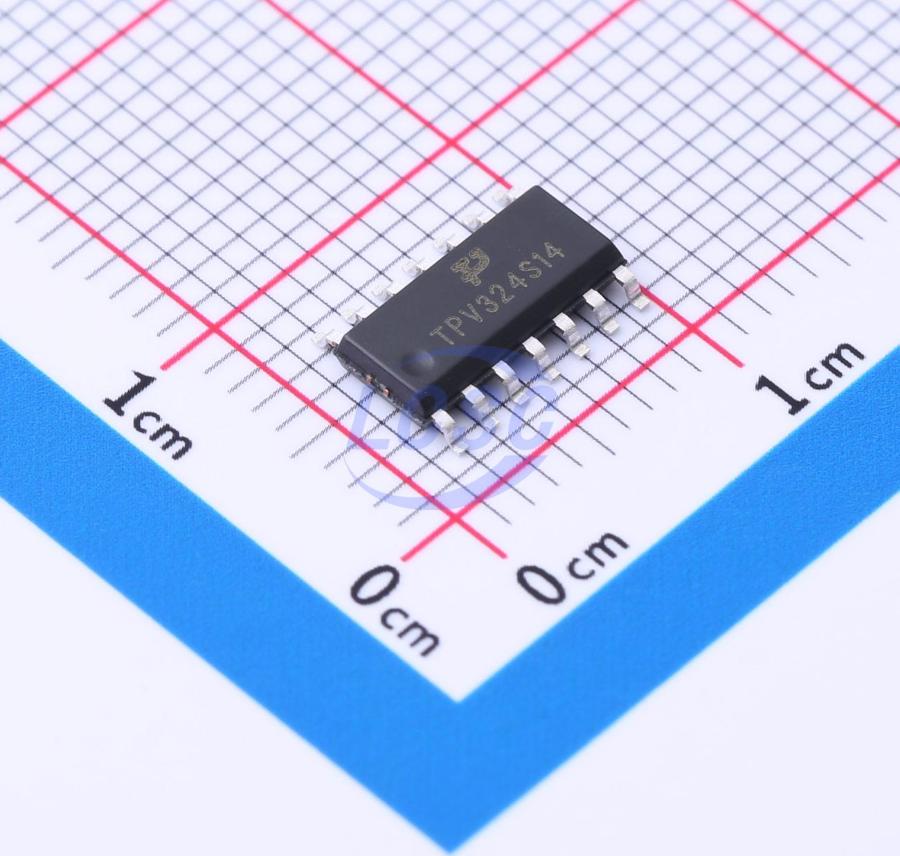

TPV324S14

20mA 2 5mV 600V/ms 10pA 80dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

1MHz, Low Power, CMOS, EMI Hardened, Rail to Rail Dual Operational Amplifier

Manufacturer: TECH PUBLIC
Manufacturer part #: TPV324S14
Store part #: C5342424
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C5342424

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹30.76	₹153.80
50+	₹26.91	₹1,345.50
150+	₹25.27	₹3,790.50
500+	₹23.21	₹11,605.00
2,500+	₹21.05	₹52,625.00
5,000+	₹20.49	₹1,02,450.00

Quantity (min 5, multiples of 5)

5 × ₹30.76

₹153.80

excl. GST

₹181.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPV324S14

₹153.80 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 20nV/√Hz@10kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.26 g

Overview

The TPV324 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.2V to 5.5V. The embedded anti-RF filter can significantly increase the RF immunity without extra components. Typical low quiescent supply current of 80μA in dual operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The TPV324 is available in SOP-14 and MSOP-14 packages. The extended temperature range of -40 °C to +125 °C over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Mobile Communications
Smoke Detector
Medical Instrumentation
Battery-Powered Instruments
Sensor Interface
Handheld Test Equipment

Key features

Single-Supply Operation from +2.2V ~ +5.5V
Rail-to-Rail Input/ Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 40μA per Amplifier (Typ.)
Operating Temperature: -40°C ~ +125°C
Available in SOP-14 and TSSOP-14 Packages
