HANSCHIP semiconductorDatasheet (PDF)

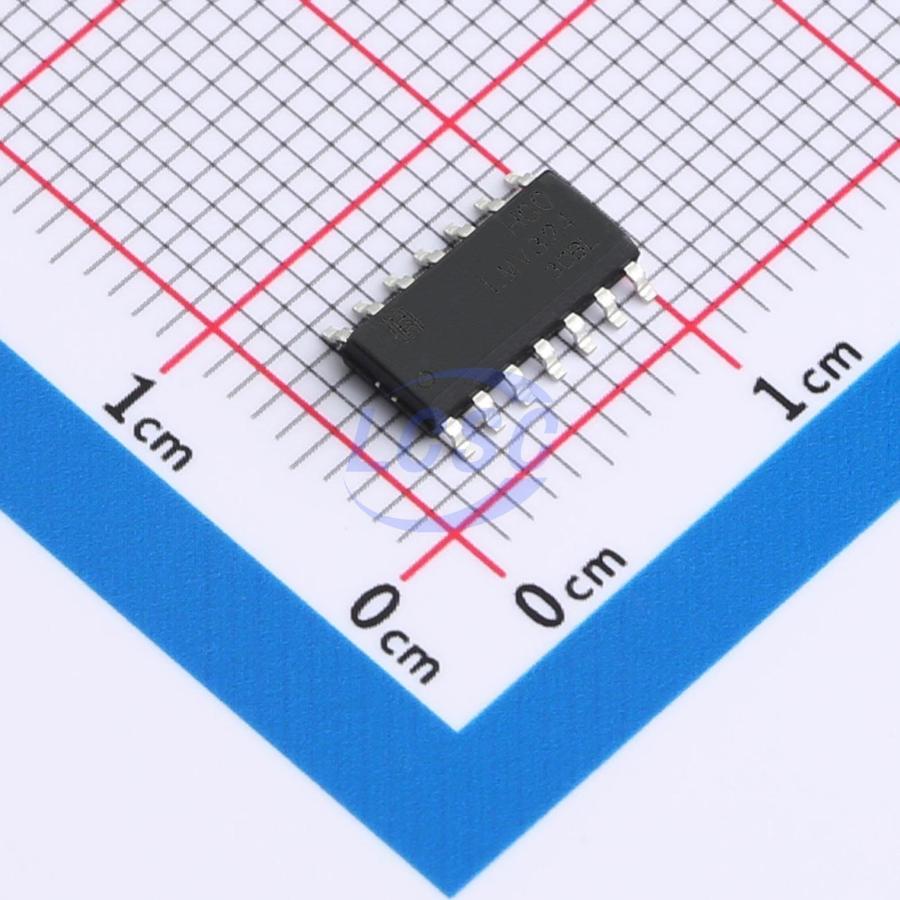

LMV324IDRG
Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-14
SOP-14ROHS CompliantActive
Low-power rail-to-rail operational amplifier
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LMV324IDRG
- Store part #
- C19723754
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C19723754
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.59 | ₹67.95 |
| 50+ | ₹10.74 | ₹537.00 |
| 150+ | ₹9.31 | ₹1,396.50 |
| 500+ | ₹8.24 | ₹4,120.00 |
| 2,500+ | ₹7.40 | ₹18,500.00 |
| 5,000+ | ₹6.97 | ₹34,850.00 |
5 × ₹13.59
₹67.95
excl. GST
₹80.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324IDRG
₹67.95 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 62pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 75uA
- Gain Bandwidth Product
- 1.1MHz
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.322 g
Overview
LMV321, LMV358, and LMV324 are rail-to-rail input and output, voltage feedback, low-power op amp families. They feature a wide input common-mode voltage range and output swing, with a minimum operating voltage of 2.1V and a maximum recommended operating voltage of 5.5V. These amplifiers deliver a gain bandwidth product of 1.1MHz at a quiescent current of approximately 45uA per channel, along with ultra-low input bias current. Their rail-to-rail input and output characteristics make them well suited for specific IC designs in single-supply systems. Applications include signal processing and interfacing in portable devices, battery-powered equipment, and low-power sensor systems.
Applications
- ASIC input and output op-amps
- Sensor interfaces
- Medical devices
- Mobile communications
- Portable systems
Key features
- Low power consumption
- Rail-to-rail input and output, typical offset voltage 0.8mV
- Unity-gain stable
- Gain bandwidth product 1.1MHz
- Low input bias current: 10pA level, less than 1nA
- Operating voltage range 2.1V to 5.5V
- Low operating current: 45uA per channel
- Available in compact package options
