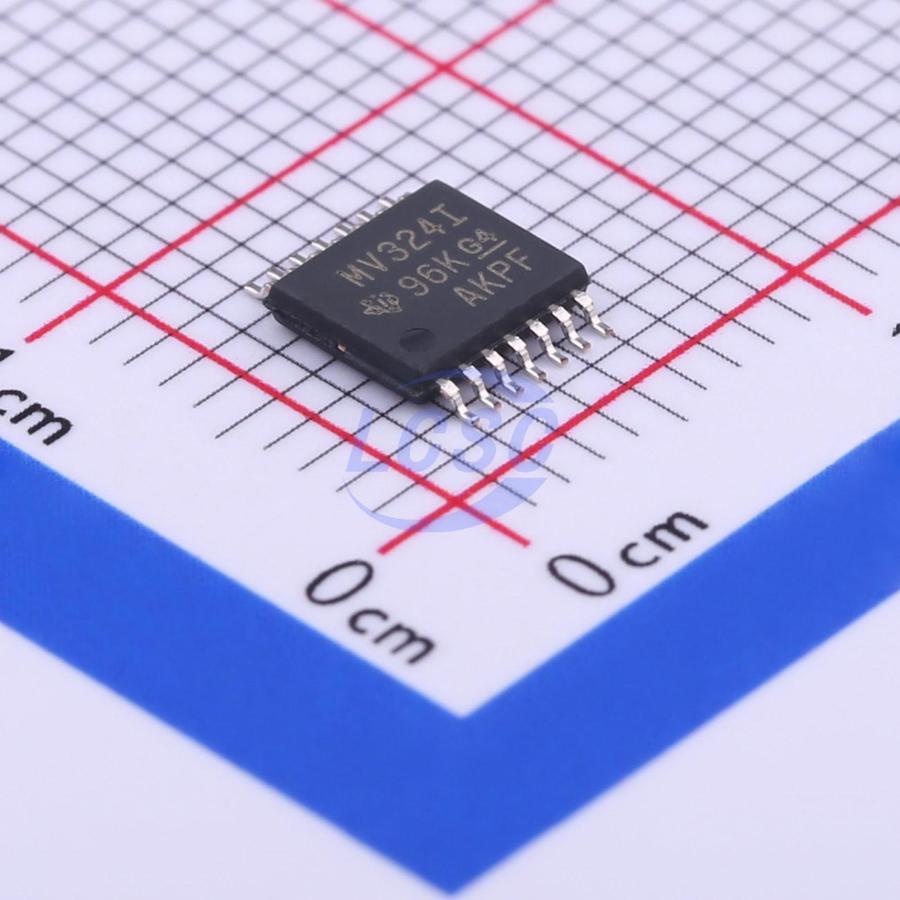

LMV324IPWR
60mA 4 7mV 1V/us 65dB 250nA 410uA 1MHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
Low-Voltage Rail-to-Rail Output Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LMV324IPWR
- Store part #
- C398929
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,285 in stock
#C398929
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.70 | ₹193.50 |
| 50+ | ₹30.38 | ₹1,519.00 |
| 150+ | ₹26.80 | ₹4,020.00 |
| 500+ | ₹22.35 | ₹11,175.00 |
| 2,000+ | ₹18.79 | ₹37,580.00 |
| 4,000+ | ₹17.60 | ₹70,400.00 |
5 × ₹38.70
₹193.50
excl. GST
₹228.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LMV324IPWR
₹193.50 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 9uV/℃
- Quiescent Current
- 410uA
- Gain Bandwidth Product
- 1MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 39nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
The LMV321, LMV358, LMV324, and LMV324S devices are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. These devices are cost-effective solutions for applications where low-voltage operation, space saving, and low cost are needed. These amplifiers are designed specifically for low-voltage (2.7 V to 5 V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 V to 30 V. With package sizes down to one-half the size of the DBV (SOT-23) package, these devices can be used for a variety of applications.
Applications
- Desktop PCs
- HVAC: Heating, Ventilating, and Air Conditioning
- Motor Control: AC Induction
- Netbooks
- Portable Media Players
- Power: Telecom DC/DC Module: Digital
- Pro Audio Mixers
- Refrigerators
- Washing Machines: High-End and Low-End
Key features
- 2.7 V and 5-V Performance
- -40°C to 125°C Operation
- Low-Power Shutdown Mode (LMV324S)
- No Crossover Distortion
- Low Supply Current
- LMV321: 130 μA Typ
- LMV358: 210 μA Typ
- LMV324: 410 μA Typ
- LMV324S: 410 μA Typ
- Rail-to-Rail Output Swing
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model, 1000-V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV324TR#C22391247COSINE · TSSOP-14 | COSINE | TSSOP-14 | 65 | ₹22.90 · 65 in stock | View |
 | COS324TR#C2897458COSINE · TSSOP-14 | COSINE | TSSOP-14 | 3,830 | ₹24.82 · 3,830 in stock | View |
 | LMV324IPWRG#C2977081HANSCHIP semiconductor · TSSOP-14L | HANSCHIP semiconductor | TSSOP-14L | 13,690 | ₹15.81 · 13,690 in stock | View |
 | LMV324ATDTR(XBLW)#C48971053XBLW · TSSOP-14 | XBLW | TSSOP-14 | 1,135 | ₹18.32 · 1,135 in stock | View |
 | LMV324QPWR#C2057318TI · TSSOP-14 | TI | TSSOP-14 | 113 | ₹103.02 · 113 in stock | View |
