IDCHIPDatasheet (PDF)

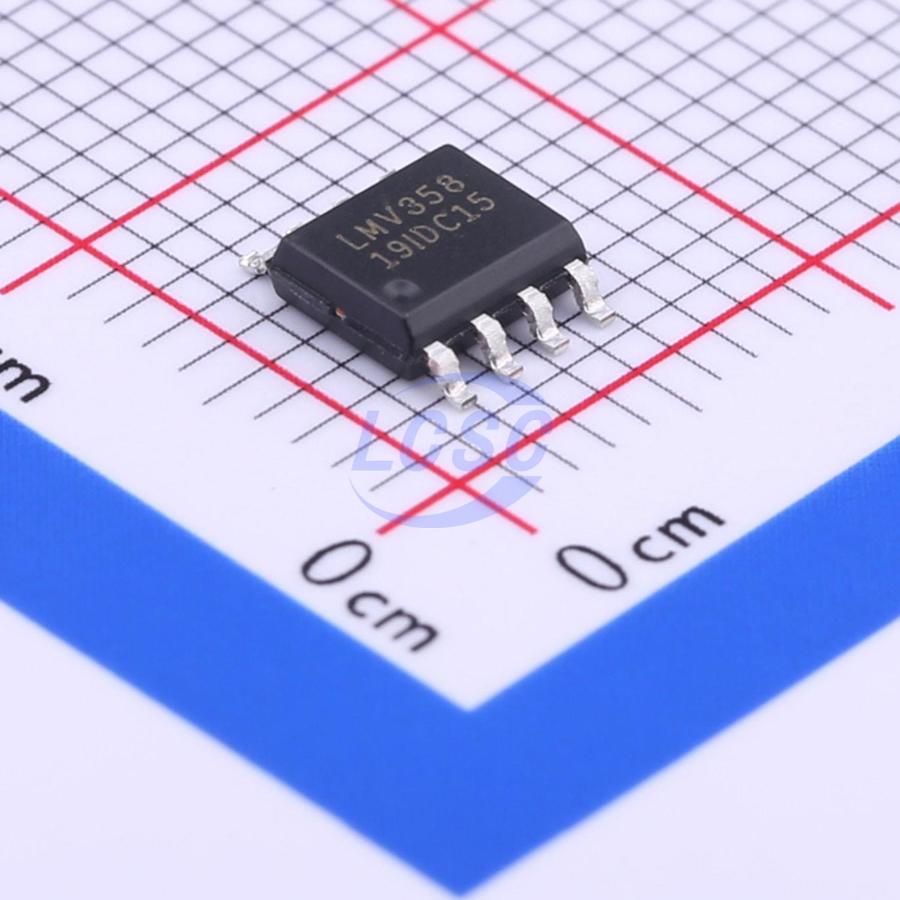

LMV358
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
Low-power dual operational amplifier
- Manufacturer
- IDCHIP
- Manufacturer part #
- LMV358
- Store part #
- C395457
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,105 in stock
#C395457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.54 | ₹57.70 |
| 50+ | ₹9.41 | ₹470.50 |
| 150+ | ₹8.35 | ₹1,252.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
| 2,500+ | ₹5.76 | ₹14,400.00 |
| 5,000+ | ₹5.44 | ₹27,200.00 |
5 × ₹11.54
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358
₹57.70 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40uV/√Hz@1kHz
- Single Supply
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
The LMV358 contains two independent, high-gain, internally frequency-compensated dual op-amps. It is suitable for single-supply operation over a wide voltage range, as well as dual-supply configurations, offering broad application versatility. The LMV358 comes in an SOP8 package. Overall, the LMV358 is a low-power, wide supply range op-amp that enables cost-effective designs across a variety of applications without sacrificing valuable board space.
Applications
- Chargers
- Power adapters
- Sensor amplifiers
- Piezoelectric sensor amplifiers
- Medical instruments and industrial control
- Audio amplifier outputs
- DC gain modules/DC gain components
Key features
- Internal frequency compensation, DC voltage gain up to 100dB
- Unity-gain bandwidth: 1MHz
- Low supply current for battery-powered applications
- Low input bias current: 45nA
- Wide supply voltage range: +3V to 5V
- Low input offset voltage and offset current
- Wide common-mode input voltage range
- Wide differential input voltage range
- Large output voltage swing
