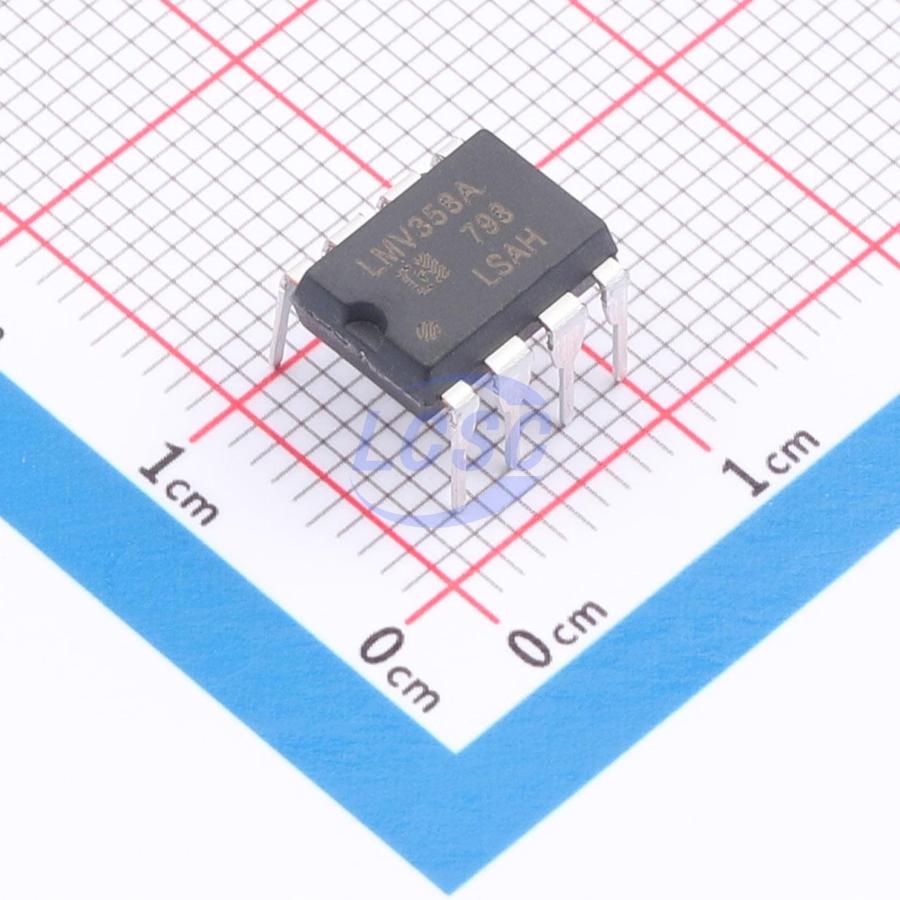

LMV358AIN
40mA 2 3mV 1V/us 5pA 83dB 1.2MHz 85uA Rail-to-Rail Input, Rail-to-Rail Output DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV358AIN
- Store part #
- C51484086
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C51484086
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.47 | ₹92.35 |
| 50+ | ₹14.67 | ₹733.50 |
| 150+ | ₹12.78 | ₹1,917.00 |
| 500+ | ₹11.35 | ₹5,675.00 |
| 2,000+ | ₹10.21 | ₹20,420.00 |
| 4,000+ | ₹9.64 | ₹38,560.00 |
5 × ₹18.47
₹92.35
excl. GST
₹108.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LMV358AIN
₹92.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 83dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Gain Bandwidth Product
- 1.2MHz
- Quiescent Current
- 85uA
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.038 g
