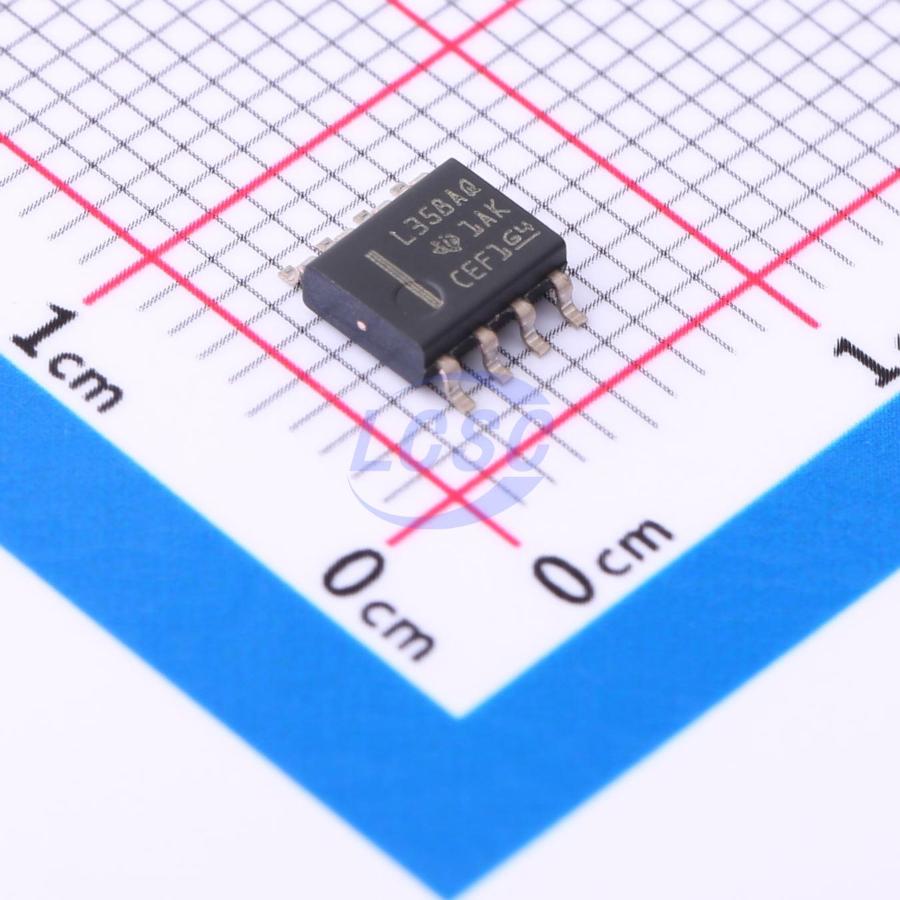

LMV358AQDRQ1
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOIC-8
SOIC-8ROHS3 CompliantActive
Automotive-grade, dual, 5.5V, 1MHz, 4mV offset voltage, RRO operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMV358AQDRQ1
- Store part #
- C2871576
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C2871576
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.07 | ₹220.35 |
| 50+ | ₹34.16 | ₹1,708.00 |
| 150+ | ₹29.91 | ₹4,486.50 |
| 500+ | ₹24.62 | ₹12,310.00 |
| 2,500+ | ₹22.25 | ₹55,625.00 |
| 5,000+ | ₹20.84 | ₹1,04,200.00 |
5 × ₹44.07
₹220.35
excl. GST
₹260.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358AQDRQ1
₹220.35 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1.7V/us
- Input Offset Current(Ios)
- 3pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 70uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -2.75V~2.75V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.395 g
Overview
The LMV3xxA-Q1 series includes single-channel (LMV321A-Q1), dual-channel (LMV358A-Q1), and quad-channel (LMV324A-Q1) low-voltage (2.5V to 5.5V) automotive operational amplifiers with rail-to-rail output swing capability. These operational amplifiers provide a cost-effective solution for applications with limited space that require low-voltage operation and high capacitive load driving, such as infotainment systems and lighting. The LMV3xxA-Q1 series can drive a capacitive load of 500pF, and its resistive open-loop output impedance makes it easy to maintain stability under higher capacitive loads. These operational amplifiers are designed for low operating voltages (2.5V to 5.5V), and their performance specifications are similar to those of LMV3xx-Q1 devices. The robust design of the LMV3xxA-Q1 series simplifies circuit design. These operational amplifiers are unity-gain stable, integrate RFI and EMI suppression filters, and do not experience phase reversal under overdrive conditions. The LMV3xxA-Q1 is available in industry-standard packages such as SOIC, MSOP, SOT-23, and TSSOP.
Applications
- Optimized for AEC-Q100 Grade 1 applications
- Infotainment systems and instrument clusters
- Passive safety
- Body electronics and lighting
- HEV/EV inverters and motor control
- On-board chargers (OBC) and wireless chargers
- Powertrain current sensors
- Advanced driver assistance systems (ADAS)
- Single-supply, low-side, unidirectional current sensing circuits
Key features
- AEC-Q100 qualified for automotive applications, Temperature Grade 1: -40°C to +125°C, TA device HBM ESD Classification Level 2, device CDM ESD Classification Level C6
- Low input offset voltage: ±1mV
- Rail-to-rail output
- Unity-gain bandwidth: 1MHz
- Low wideband noise: 30nV/√Hz
- Low input bias current: 10pA
- Low quiescent current: 70μA/channel
- Unity-gain stable
- Built-in RFI and EMI filter
- Operates from supply voltages as low as 2.5V
- Resistive open-loop output impedance enables easier stabilization with higher capacitive loads
- Operating temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV358#C395457IDCHIP · SOP-8 | IDCHIP | SOP-8 | 20,105 | ₹11.54 · 20,105 in stock | View |
 | LMV358AIDR#C182039TI · SOIC-8 | TI | SOIC-8 | 14,730 | ₹36.03 · 14,730 in stock | View |
 | MCP602T-I/SN#C360037MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 17,115 | ₹101.69 · 17,115 in stock | View |
 | MCP6H92-E/SN#C220558MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹389.76 · 10 in stock | View |
 | MCP602T-E/SN#C623667MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3 | ₹122.21 · 3 in stock | View |
