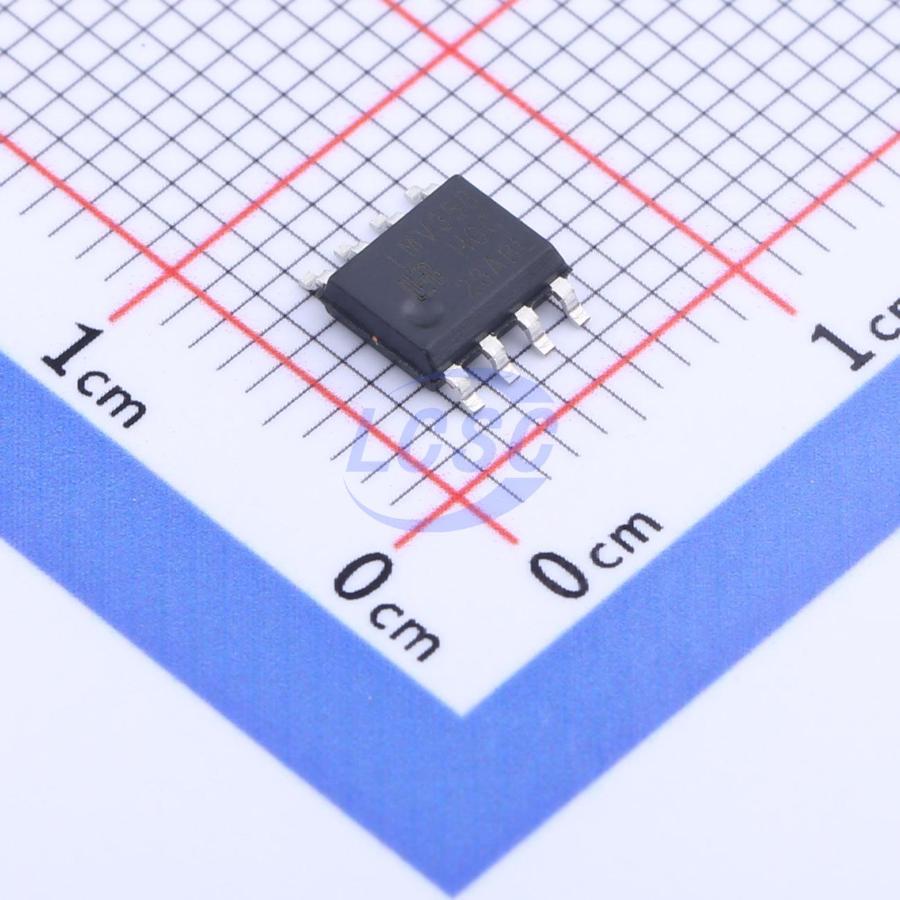

LMV358CDRG

84mA 2 3.5mV 600V/ms 1pA 70dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

1MHz CMoS Rail-to-Rail Io Opamp with RF Filter

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LMV358CDRG
Store part #: C2977080
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,260 in stock

#C2977080

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.75	₹77.50
100+	₹6.19	₹619.00
300+	₹5.40	₹1,620.00
2,500+	₹4.50	₹11,250.00
5,000+	₹4.02	₹20,100.00
10,000+	₹3.78	₹37,800.00

Quantity (min 10, multiples of 10)

10 × ₹7.75

₹77.50

excl. GST

₹91.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV358CDRG

₹77.50 for 10 + GST

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.34 g

Overview

The LMV321 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs and a quiescent current of 40 μA/amplifier at 5V. The LMV321 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for LMV321 family. They are specified over the extended industrial temperature range ( -40°C to +125°C ). The operating range is from 2.1V to 5.5V.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication
Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 1pA (Typ.)
Low Offset Voltage: 3.5mV (Max.)
Quiescent Current: 40μA per Amplifier (Typ.)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package: LMV321 Available in SOT23-5 Packages LMV358 Available in SOP-8, MSOP-8, DIP-8 Packages LMV324 Available in SOP-14 and TSSOP-14 Packages
